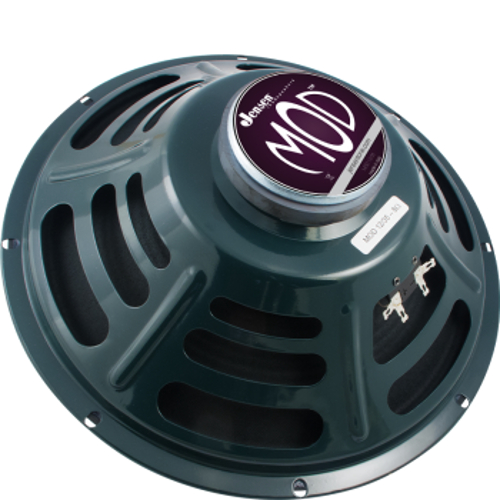

Jensen Loudspeakers P-A-MOD12-35
12" 35W Mod Series Speaker

OUR PART #:  P-A-MOD12-35

Jensen Loudspeakers' P-A-MOD12-35 has straightforward tone with low end focus. When presented with overdrive distortion, it has a straightforward fuzz voice.
Learn More
Selected Model Price: $53.58
List Price: $73.90
Save up to 27%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Jensen Loudspeakers P-A-MOD12-35
Select model: (shipping times are approximate)
Qty:

Similar Products

Jensen Loudspeakers' P-A-MOD12-35 has straightforward tone with low end focus. When presented with overdrive distortion, it has a straightforward fuzz voice.

Jensen Loudspeakers P-A-MOD12-35 Specifications:

  • General Characteristics:
    • Nominal Overall Diameter: 12" (306 mm)
    • Nominal Voice Coil Diameter: 1" (25 mm)
    • Magnet Weight: 10 oz (280 g)
    • Overall Weight: 2.90 lbs
    • Flux Density: 0.95 T
  • Thiele-Small Parameters for 8O:
    • Voice Coil DC Resistance RE: 6.71 O
    • Resonance Frequency ƒS: 73.5 Hz
    • Mechanical Q Factor QMS: 17.09
    • Electrical Q Factor QES: 1.69
    • Total Q Factor QTS: 1.54
    • Mechanical Moving Mass MMS: 29.1 g
    • Mechanical Compliance CMS: 161 µm/N
    • Force Factor BxL: 7.30 Wb/m
    • Equivalent Acoustic Volume VAS: 54.4 lt.
    • Maximum Linear Displacement XMAX: +/- 1.0 mm
    • Reference Efficiency nO: 1.23 %
    • Diaphragm Area SD: 490.9 cm2
    • Losses Electrical Resistance RES: 67.7 O
    • Voice Coil Inductance @ 1kHz LE: 1.14 mH
  • Constructive Characteristics for 8O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Epotex
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Non-treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 8O:
    • Nominal Impedance: 8 O
    • Rated Power: 35 W
    • Musical Power: 70 W
    • Sensitivity @ 1W,1m: 93.7 dB
  • Thiele-Small Parameters for 16O:
    • Voice Coil DC Resistance RE: 12.35 O
    • Resonance Frequency ƒS: 90.0 Hz
    • Mechanical Q Factor QMS: 19.38
    • Electrical Q Factor QES: 2.14
    • Total Q Factor QTS: 1.92
    • Mechanical Moving Mass MMS: 30.6 g
    • Mechanical Compliance CMS: 103 µm/N
    • Force Factor BxL: 9.99 Wb/m
    • Equivalent Acoustic Volume VAS: 34.8 lt.
    • Maximum Linear Displacement XMAX: +/- 1.5 mm
    • Reference Efficiency nO: 1.14 %
    • Diaphragm Area SD: 490.9 cm2
    • Losses Electrical Resistance RES: 112.0 O
    • Voice Coil Inductance @ 1kHz LE: 1.70 mH
  • Constructive Characteristics for 16O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Epotex
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Non-treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 16O:
    • Nominal Impedance: 16 O
    • Rated Power: 35 W
    • Musical Power: 70 W
    • Sensitivity @ 1W,1m: 94.0 dB
