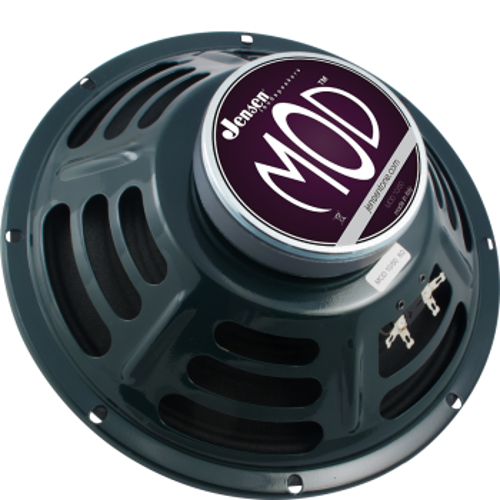

Jensen Loudspeakers P-A-MOD10-70-8 10" 70W 8Ohm Mod Series Speaker

Jensen Loudspeakers' P-A-MOD10-70-8 has thick, straightforward tone and fat bass frequencies. It exhibits a bass heavy, dirty grit when presented with overdrive distortion.

Jensen Loudspeakers P-A-MOD10-70-8 Specifications:

• General Characteristics:
  • Nominal Overall Diameter: 10" (259 mm)
  • Nominal Voice Coil Diameter: 1.5" (38 mm)
  • Magnet Weight: 22.5 oz (640 g)
  • Overall Weight: 4.80lbs
  • Flux Density: 1.16 T
• Thiele-Small Parameters for 8O:
  • Voice Coil DC Resistance RE: 5.0 O
  • Resonance Frequency ƒS: 99 Hz
  • Mechanical Q Factor QMS: 16.28
  • Electrical Q Factor QES: 0.73
  • Total Q Factor QTS: 0.69
  • Mechanical Moving Mass MMS: 19.8 g
  • Mechanical Compliance CMS: 129 µm/N
  • Force Factor BxL: 9.24 Wb/m
  • Equivalent Acoustic Volume VAS: 19.8 lt.
  • Maximum Linear Displacement XMAX: 1.5 mm
  • Reference Efficiency nO: 2.58 %
  • Diaphragm Area SD: 330 cm2
  • Losses Electrical Resistance RES: 112 O
  • Voice Coil Inductance @ 1kHz LE: 0.52 mH
• Constructive Characteristics for 8O:
  • Magnet: Ferrite
  • Voice Coil Winding: Copper
  • Voice Coil Former: Epotex
  • Cone: Paper
  • Surround: Integrated Paper
  • Dust Dome: Non-treated Cloth
  • Basket: Pressed Sheet Steel
• Electrical Characteristics for 8O:
  • Nominal Impedance: 8 O
  • Rated Power: 70 W
  • Musical Power: 140 W
  • Sensitivity @ 1W,1m: 98.2 dB
