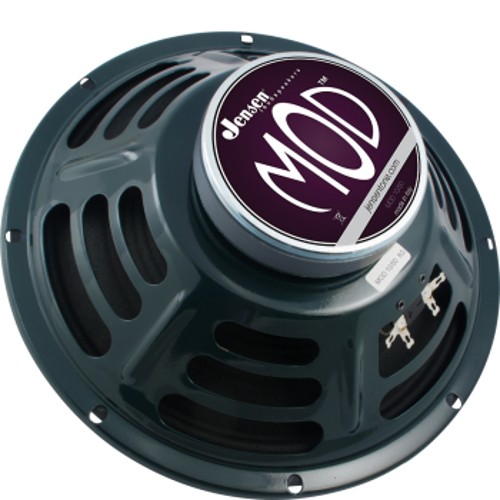

Jensen Loudspeakers P-A-MOD10-50 10" 50W Mod Series Speaker

Jensen Loudspeakers' P-A-MOD10-50 offers warm, straightforward tone and tight bass frequencies. When presented with overdrive distortion, it exhibits a colorful fuzz edge.

Jensen Loudspeakers P-A-MOD10-50 Specifications:

• General Characteristics:
  • Nominal Overall Diameter: 10" (259 mm)
  • Nominal Voice Coil Diameter: 1.25" (32 mm)
  • Magnet Weight: 15 oz (426 g)
  • Overall Weight: 3.70 lbs
  • Flux Density: 1.10 T
• Thiele-Small Parameters for 4O:
  • Voice Coil DC Resistance RE: 3.08 O
  • Resonance Frequency ƒS: 101.6 Hz
  • Mechanical Q Factor QMS: 16.16
  • Electrical Q Factor QES: 1.34
  • Total Q Factor QTS: 1.24
  • Mechanical Moving Mass MMS: 18.1 g
  • Mechanical Compliance CMS: 135 µm/N
  • Force Factor BxL: 5.16 Wb/m
  • Equivalent Acoustic Volume VAS: 2078 lt.
  • Maximum Linear Displacement XMAX: 2.0 mm
  • Reference Efficiency nO: 1.56 %
  • Diaphragm Area SD: 330.1 cm2
  • Losses Electrical Resistance RES: 37.2 O
  • Voice Coil Inductance @ 1kHz LE: 0.39 mH
• Constructive Characteristics for 4O:
  • Magnet: Ferrite
  • Voice Coil Winding: Copper
  • Voice Coil Former: Epotex
  • Cone: Paper
  • Surround: Integrated Paper
  • Dust Dome: Non-Treated Cloth
  • Basket: Pressed Sheet Steel
• Electrical Characteristics for 4O:
  • Nominal Impedance: 4 O
  • Rated Power: 50 W
  • Musical Power: 100 W
  • Sensitivity @ 1W,1m: 95.1 dB
• Thiele-Small Parameters for 8O:
  • Voice Coil DC Resistance RE: 6.20 O
  • Resonance Frequency ƒS: 107.0 Hz
  • Mechanical Q Factor QMS: 16.84
  • Electrical Q Factor QES: 1.29
  • Total Q Factor QTS: 1.20
  • Mechanical Moving Mass MMS: 16.5 g
  • Mechanical Compliance CMS: 136 µm/N
  • Force Factor BxL: 7.28 Wb/m
  • Equivalent Acoustic Volume VAS: 20.8 lt.
  • Maximum Linear Displacement XMAX: 1.5 mm
  • Reference Efficiency nO: 1.87 %
  • Diaphragm Area SD: 330.0 cm2
  • Losses Electrical Resistance RES: 81.0 O
  • Voice Coil Inductance @ 1kHz LE: 0.62 mH
• Constructive Characteristics for 8O:
  • Magnet: Ferrite
  • Voice Coil Winding: Copper
  • Voice Coil Former: Epotex
  • Cone: Paper
  • Surround: Integrated Paper
  • Dust Dome: Non-Treated Cloth
  • Basket: Pressed Sheet Steel
• Electrical Characteristics for 8O:
  • Nominal Impedance: 8 O
  • Rated Power: 50 W
  • Musical Power: 100 W
  • Sensitivity @ 1W,1m: 95.8 dB
• Thiele-Small Parameters for 16O:
  • Voice Coil DC Resistance RE: 12.00 O
  • Resonance Frequency ƒS: 101.0 Hz
  • Mechanical Q Factor QMS: 18.07
  • Electrical Q Factor QES: 1.67
  • Total Q Factor QTS: 1.53
  • Mechanical Moving Mass MMS: 18.5 g
  • Mechanical Compliance CMS: 134 µm/N
  • Force Factor BxL: 9.31 Wb/m
  • Equivalent Acoustic Volume VAS: 20.4 lt.
  • Maximum Linear Displacement XMAX: 1.5 mm
  • Reference Efficiency nO: 1.22 %
  • Diaphragm Area SD: 330.0 cm2
  • Losses Electrical Resistance RES: 135.0 O
  • Voice Coil Inductance @ 1kHz LE: 1.08 mH
• Constructive Characteristics for 16O:
  • Magnet: Ferrite
  • Voice Coil Winding: Copper
  • Voice Coil Former: Epotex
  • Cone: Paper
  • Surround: Integrated Paper
  • Dust Dome: Non-Treated Cloth
  • Basket: Pressed Sheet Steel
• Electrical Characteristics for 16O:
  • Nominal Impedance: 16 O
  • Rated Power: 50 W
  • Musical Power: 100 W
  • Sensitivity @ 1W,1m: 94.0 dB
• Thiele-Small Parameters for 32O:
  • Voice Coil DC Resistance RE: 24.52 O
  • Resonance Frequency ƒS: 110.6 Hz
  • Mechanical Q Factor QMS: 16.22
  • Electrical Q Factor QES: 2.29
  • Total Q Factor QTS: 2.47
  • Mechanical Moving Mass MMS: 20.6 g
  • Mechanical Compliance CMS: 94 µm/N
  • Force Factor BxL: 11.18 Wb/m
  • Equivalent Acoustic Volume VAS: 14.4 lt.
  • Maximum Linear Displacement XMAX: 2.0 mm
  • Reference Efficiency nO: 0.71 %
  • Diaphragm Area SD: 330.1 cm2
  • Losses Electrical Resistance RES: 136.5 O
  • Voice Coil Inductance @ 1kHz LE: 1.60 mH
• Constructive Characteristics for 32O:
  • Magnet: Ferrite
  • Voice Coil Winding: Copper
  • Voice Coil Former: Epotex
  • Cone: Paper
  • Surround: Integrated Paper
  • Dust Dome: Non-Treated Cloth
  • Basket: Pressed Sheet Steel
• Electrical Characteristics for 32O:
  • Nominal Impedance: 32 O
  • Rated Power: 50 W
  • Musical Power: 100 W
  • Sensitivity @ 1W,1m: 91.9 dB
