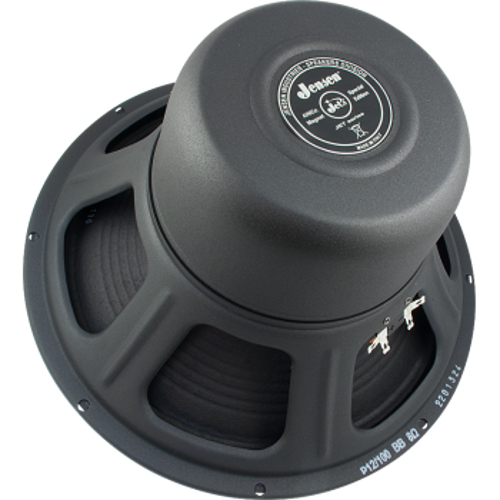

Jensen Loudspeakers Blackbird 12
12 "100W Jet Series Speaker

OUR PART #:  P-A-JP12-100BB

Jensen Loudspeakers' Blackbird 12 is extremely warm and smooth with a very rich, fat low-end and sparkling highs.
Learn More
Selected Model Price: $273.69
List Price: $377.50
Save up to 27%!
Write the first review.
Jensen Loudspeakers Blackbird 12
Select a Model: (shipping times are approximate)
Qty:
Related Products

Jensen Loudspeakers' Blackbird 12 is extremely warm and smooth with a very rich, fat low-end and sparkling highs. It handles overdrive distortion by bringing out colorful detail and holding strong even at maximum crunch.

Jensen Loudspeakers Blackbird 12 Specifications:

  • General Characteristics:
    • Nominal Overall Diameter: 12" (307 mm)
    • Nominal Voice Coil Diameter: 2" (50 mm)
    • Magnet Weight: 29 oz (826 g)
    • Overall Weight: 6.90 lbs
    • Flux Density: 1.00 T
    • Thiele-Small Parameters for: 8O
    • Voice Coil DC Resistance: RE 6.30 O
    • Resonance Frequency: ƒS 95.1 Hz
    • Mechanical Q Factor: QMS 11.81
    • Electrical Q Factor: QES 0.90
    • Total Q Factor: QTS 0.84
    • Mechanical Moving Mass: MMS 27.7 g
    • Mechanical Compliance: CMS 102 µm/N
    • Force Factor BxL: 10.76 Wb/m
    • Equivalent Acoustic Volume: VAS 34.4 lt.
    • Maximum Linear Displacement: XMAX +/- 1.0 mm
    • Reference Efficiency: nO 3.13 %
    • Diaphragm Area SD: 490.8 cm2
    • Losses Electrical Resistance: RES 82.7 O
    • Voice Coil Inductance @ 1kHz: LE 0.59 mH
  • Constructive Characteristics for 8O:
    • Magnet: Alnico
    • Voice Coil Winding: Aluminum
    • Voice Coil Former: Kapton
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Non Treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 8O:
    • Nominal Impedance: 8 O
    • Rated Power: 100 W
    • Musical Power: 200 W
    • Sensitivity @ 1W,1m: 98.0 dB
  • Thiele-Small Parameters for 16O:
    • Voice Coil DC Resistance RE: 11.98 O
    • Resonance Frequency ƒS: 103.5 Hz
    • Mechanical Q Factor QMS: 13.58
    • Electrical Q Factor QES: 1.31
    • Total Q Factor QTS: 1.19
    • Mechanical Moving Mass MMS: 27.2 g
    • Mechanical Compliance CMS: 87 µm/N
    • Force Factor BxL: 12.75 Wb/m
    • Equivalent Acoustic Volume VAS: 29.4 lt.
    • Maximum Linear Displacement XMAX: +/- 1.0 mm
    • Reference Efficiency nO: 2.40 %
    • Diaphragm Area SD: 490.8 cm2
    • Losses Electrical Resistance RES: 124.7 O
    • Voice Coil Inductance @ 1kHz LE: 1.14 mH
  • Constructive Characteristics for 16O:
    • Magnet: Alnico
    • Voice Coil Winding: Aluminum
    • Voice Coil Former: Kapton
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Non Treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 16O:
    • Nominal Impedance: 16 O
    • Rated Power: 100 W
    • Musical Power: 200 W
    • Sensitivity @ 1W,1m: 97.1 dB
