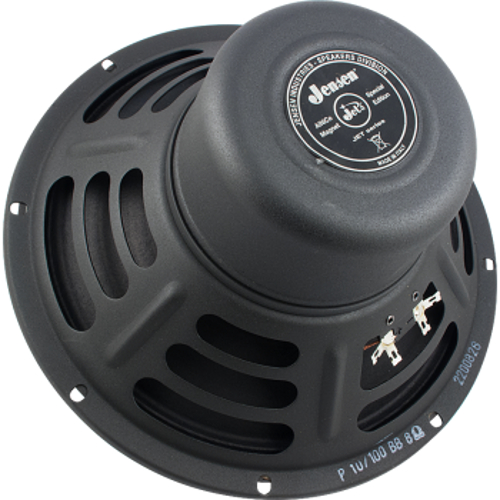

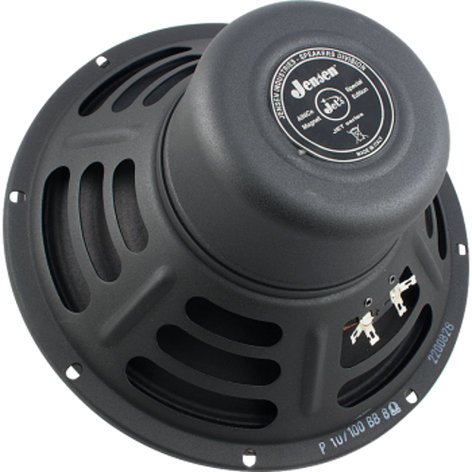

Jensen Loudspeakers Blackbird 10
10" 100W Jet Series Speaker

OUR PART #:  P-A-JP10-100BB

Jensen Loudspeaker's Blackbird 10" has a fat low end response topped with sparkling highs. It exhibits a bright, dirty grit when presented with overdrive distortion.
Learn More
Selected Model Price: $250.63
List Price: $345.70
Save up to 28%!
Write the first review.
Jensen Loudspeakers Blackbird 10
Select a Model: (shipping times are approximate)

Related Products

Jensen Loudspeaker's Blackbird 10" has a fat low end response topped with sparkling highs. It exhibits a bright, dirty grit when presented with overdrive distortion.

Jensen Loudspeakers Blackbird 10 Specifications:

  • General Characteristics:
    • Nominal Overall Diameter: 10" (259 mm)
    • Nominal Voice Coil Diameter: 2" (50 mm)
    • Magnet Weight: 29 oz (826 g)
    • Overall Weight: 6.90 lbs
    • Flux Density: 1.00 T
  • Thiele-Small Parameters for 8O:
    • Voice Coil DC Resistance RE: 5.97 O
    • Resonance Frequency ƒS: 112.1 Hz
    • Mechanical Q Factor QMS: 14.73
    • Electrical Q Factor QES: 0.85
    • Total Q Factor QTS: 0.80
    • Mechanical Moving Mass MMS: 22.0 g
    • Mechanical Compliance CMS: 90 µm/N
    • Force Factor BxL: 10.45 Wb/m
    • Equivalent Acoustic Volume VAS: 14.1 lt.
    • Maximum Linear Displacement XMAX: ± 1.0 mm
    • Reference Efficiency nO: 2.26 %
    • Diaphragm Area SD: 330.0 cm2
    • Losses Electrical Resistance RES: 103.9 O
    • Voice Coil Inductance @ 1kHz LE: 0.79 mH
  • Constructive Characteristics for 8O:
    • Magnet: Alnico
    • Voice Coil Winding: Aluminum
    • Voice Coil Former: Kapton
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Non Treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 8O:
    • Nominal Impedance: 8 O
    • Rated Power: 100 W
    • Musical Power: 200 W
    • Sensitivity @ 1W,1m: 97.0 dB
  • Thiele-Small Parameters for 16O:
    • Voice Coil DC Resistance RE: 11.61 O
    • Resonance Frequency ƒS: 107.1 Hz
    • Mechanical Q Factor QMS: 15.00
    • Electrical Q Factor QES: 0.89
    • Total Q Factor QTS: 0.84
    • Mechanical Moving Mass MMS: 20.9 g
    • Mechanical Compliance CMS: 106 µm/N
    • Force Factor BxL: 13.53 Wb/m
    • Equivalent Acoustic Volume VAS: 16.3 lt.
    • Maximum Linear Displacement XMAX: ± 1.0 mm
    • Reference Efficiency nO: 2.15 %
    • Diaphragm Area SD: 330.0 cm2
    • Losses Electrical Resistance RES: 195.2 O
    • Voice Coil Inductance @ 1kHz LE: 1.00 mH
  • Constructive Characteristics for 16O:
    • Magnet: Alnico
    • Voice Coil Winding: Aluminum
    • Voice Coil Former: Kapton
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Non Treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 16O:
    • Nominal Impedance: 16 O
    • Rated Power: 100 W
    • Musical Power: 200 W
    • Sensitivity @ 1W,1m: 96.9 dB
