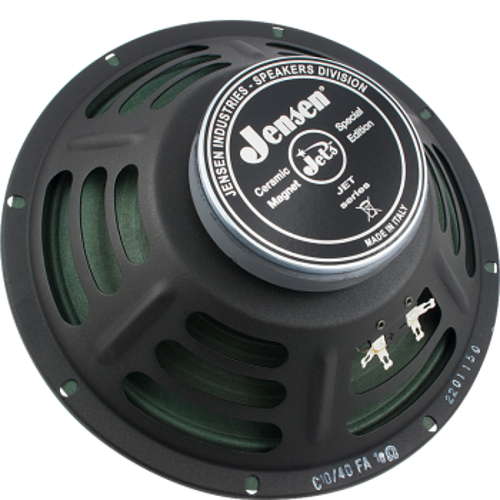

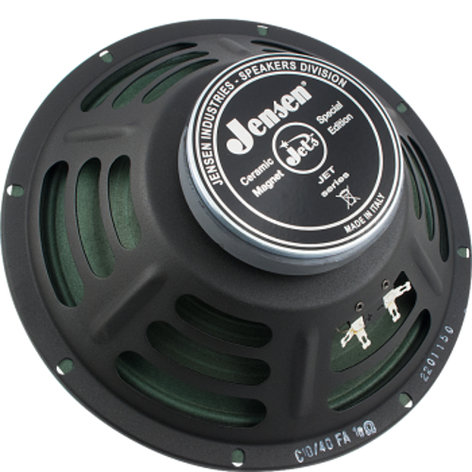

Jensen Loudspeakers Falcon 12
12" 50W Jet Series Speaker

OUR PART #:  P-A-JC12-50FA

Jensen Loudspeakers' Falcon 12 is warm and full bodied tone with lows that are rich and fat. It responds to overdrive distortion with a colorful crunch.
Learn More
Selected Model Price: $84.39
List Price: $116.40
Save up to 28%!
Write the first review.
Jensen Loudspeakers Falcon 12
Select a Model: (shipping times are approximate)

Related Products

Jensen Loudspeakers' Falcon 12 is warm and full bodied tone with lows that are rich and fat. It responds to overdrive distortion with a colorful crunch. This speaker has a new style of secret, magical cone that is designed for optimum tone no matter what kind of music.

Jensen Loudspeakers Falcon 12 Specifications:

  • General Characteristics
    • Nominal Overall Diameter: 12" (307 mm)
    • Nominal Voice Coil Diameter: 1.5" (38 mm)
    • Magnet Weight: 28.5 oz (810 g)
    • Overall Weight: 7.20 lbs
    • Flux Density: 1.15 T
  • Thiele-Small Parameters for 8O:
    • Voice Coil DC Resistance RE: 5.22 O
    • Resonance Frequency ƒS: 107.0 Hz
    • Mechanical Q Factor QMS: 9.60
    • Electrical Q Factor QES: 0.95
    • Total Q Factor QTS: 0.86
    • Mechanical Moving Mass MMS: 31.7 g
    • Mechanical Compliance CMS: 70 µm/N
    • Force Factor BxL: 10.83 Wb/m
    • Equivalent Acoustic Volume VAS: 28.8 lt.
    • Maximum Linear Displacement XMAX: +/- 1.0 mm
    • Reference Efficiency nO: 2.95 %
    • Diaphragm Area SD: 490.9 cm2
    • Losses Electrical Resistance RES: 52.8 O
    • Voice Coil Inductance @ 1kHz LE: 0.78 mH
  • Constructive Characteristics for 8O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Kapton
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Non Treated Cloth
    • Basket Pressed: Sheet Steel
  • Electrical Characteristics for 8O:
    • Nominal Impedance: 8 O
    • Rated Power: 50 W
    • Musical Power: 100 W
    • Sensitivity @ 1W,1m: 98.7 dB
  • Thiele-Small Parameters for 16O:
    • Voice Coil DC Resistance RE: 11.87 O
    • Resonance Frequency ƒS: 112.9 Hz
    • Mechanical Q Factor QMS: 10.83
    • Electrical Q Factor QES: 1.47
    • Total Q Factor QTS: 1.29
    • Mechanical Moving Mass MMS: 31.6 g
    • Mechanical Compliance CMS: 63 µm/N
    • Force Factor BxL: 13.47 Wb/m
    • Equivalent Acoustic Volume VAS: 21.5 lt.
    • Maximum Linear Displacement XMAX: +/- 1.0 mm
    • Reference Efficiency nO: 2.02 %
    • Diaphragm Area SD: 490.9 cm2
    • Losses Electrical Resistance RES: 87.7 O
    • Voice Coil Inductance @ 1kHz LE: 1.43 mH
  • Constructive Characteristics for 16O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Kapton
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Non Treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 16O:
    • Nominal Impedance: 16 O
    • Rated Power: 50 W
    • Musical Power: 100 W
    • Sensitivity @ 1W,1m: 96.6 dB
