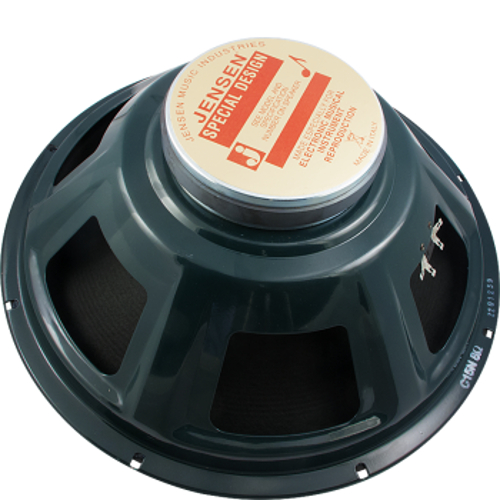

Jensen Loudspeakers P-A-C15N
15" 50W Vintage Ceramic Speaker

OUR PART #:  P-A-C15N

Jensen Loudspeakers' P-A-C15N provides tight low-end and clear, bright highs. It responds to overdrive distortion with a gritty edge.
Learn More
Selected Model Price: $127.46
List Price: $175.80
Save up to 27%!
Write the first review.
Jensen Loudspeakers P-A-C15N
Select a Model: (shipping times are approximate)

Related Products

Jensen Loudspeakers' P-A-C15N provides tight low-end and clear, bright highs. It responds to overdrive distortion with a gritty edge.

Jensen Loudspeakers P-A-C15N Specifications:

  • General Characteristics:
    • Nominal Overall Diameter: 15" (385 mm)
    • Nominal Voice Coil Diameter: 1.5" (38 mm)
    • Magnet Weight: 28.5 oz (810 g)
    • Overall Weight: 9.05 lbs
    • Flux Density: 1.00 T
  • Thiele-Small Parameters for 4O:
    • Voice Coil DC Resistance RE: 3.12 O
    • Resonance Frequency ƒS: 74.2 Hz
    • Mechanical Q Factor QMS: 5.93
    • Electrical Q Factor QES: 1.02
    • Total Q Factor QTS: 0.87
    • Mechanical Moving Mass MMS: 41.2 g
    • Mechanical Compliance CMS: 112 µm/N
    • Force Factor BxL: 7.68 Wb/m
    • Equivalent Acoustic Volume VAS: 89.4 lt.
    • Maximum Linear Displacement XMAX: 1.5 mm
    • Reference Efficiency nO: 3.46 %
    • Diaphragm Area SD: 754.7 cm2
    • Losses Electrical Resistance RES: 18.2 O
    • Voice Coil Inductance @ 1kHz LE: 0.58 mH
  • Constructive Characteristics for 4O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Kapton
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Solid Paper
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 4O:
    • Nominal Impedance: 4 O
    • Rated Power: 50 W
    • Musical Power: 100 W
    • Sensitivity @ 1W,1m: 98.5 dB
    • Thiele-Small Parameters for 8O:
    • Voice Coil DC Resistance RE: 6.5 O
    • Resonance Frequency ƒS: 73.0 Hz
    • Mechanical Q Factor QMS: 7.34
    • Electrical Q Factor QES: 1.24
    • Total Q Factor QTS: 1.06
    • Mechanical Moving Mass MMS: 40.6 g
    • Mechanical Compliance CMS: 117 µm/N
    • Force Factor BxL: 9.93 Wb/m
    • Equivalent Acoustic Volume VAS: 93.4 lt.
    • Maximum Linear Displacement XMAX: 1.0 mm
    • Reference Efficiency nO: 2.84 %
    • Diaphragm Area SD: 754.7 cm2
    • Losses Electrical Resistance RES: 39.0 O
    • Voice Coil Inductance @ 1kHz LE: 0.93 mH
  • Constructive Characteristics for 8O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Kapton
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Solid Paper
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 8O:
    • Nominal Impedance: 8 O
    • Rated Power: 50 W
    • Musical Power: 100 W
    • Sensitivity @ 1W,1m: 97.4 dB
  • Thiele-Small Parameters for 16O:
    • Voice Coil DC Resistance RE: 12.30 O
    • Resonance Frequency ƒS: 73.5 Hz
    • Mechanical Q Factor QMS: 8.48
    • Electrical Q Factor QES: 1.76
    • Total Q Factor: QTS 1.46
    • Mechanical Moving Mass MMS: 51.0 g
    • Mechanical Compliance CMS: 92 µm/N
    • Force Factor BxL: 12.81 Wb/m
    • Equivalent Acoustic Volume VAS: 74.4 lt.
    • Maximum Linear Displacement XMAX: 1.0 mm
    • Reference Efficiency nO: 1.61 %
    • Diaphragm Area SD: 754.8 cm2
    • Losses Electrical Resistance RES: 57.0 O
    • Voice Coil Inductance @ 1kHz LE: 1.28 mH
  • Constructive Characteristics for 16O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Kapton
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Solid Paper
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 16O:
    • Nominal Impedance: 16 O
    • Rated Power: 50 W
    • Musical Power: 100 W
    • Sensitivity @ 1W,1m: 95.4 dB
