Jensen Loudspeakers P-A-C12Q 12" 35W Vintage Ceramic Speaker

OUR PART #: P-A-C12Q

Copied to clipboard

Jensen Loudspeakers' P-A-C12Q offers well rounded, straightforward tone with a lot of mid bite and bright highs. ...Read more

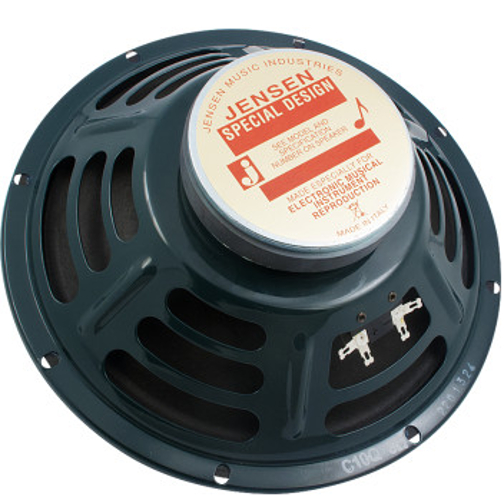

Jensen Loudspeakers P-A-C12Q 12" 35W Vintage Ceramic Speaker Image 1
Jensen Loudspeakers P-A-C12Q 12" 35W Vintage Ceramic Speaker Image 2
Jensen Loudspeakers P-A-C12Q 12" 35W Vintage Ceramic Speaker Image 3
Jensen Loudspeakers P-A-C12Q 12" 35W Vintage Ceramic Speaker
Selected Model Price: $87.56
List Price: $134.70
Save up to 35%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
(shipping times are approximate)
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.
For Parts Assistance, call 800-356-5844 and press "2" or email [email protected].

Product Overview

Jensen Loudspeakers' P-A-C12Q offers well rounded, straightforward tone with a lot of mid bite and bright highs.

Jensen Loudspeakers P-A-C12Q Specifications:

  • General Characteristics:
    • Nominal Overall Diameter: 12" (306 mm)
    • Nominal Voice Coil Diameter: 1.25" (32 mm)
    • Magnet Weight: 15 oz (426 g)
    • Overall Weight: 4.10 lbs
    • Flux Density: 0.92 T
  • Thiele-Small Parameters for 8O:
    • Voice Coil DC Resistance RE: 6.36 O
    • Resonance Frequency ƒS: 87.3 Hz
    • Mechanical Q Factor QMS: 13.14
    • Electrical Q Factor QES: 1.94
    • Total Q Factor QTS: 1.69
    • Mechanical Moving Mass MMS: 25.5 g
    • Mechanical Compliance CMS: 130 µm/N
    • Force Factor BxL: 6.78 Wb/m
    • Equivalent Acoustic Volume VAS: 44.1 lt.
    • Maximum Linear Displacement XMAX: 1.5 mm
    • Reference Efficiency nO: 1.45 %
    • Diaphragm Area SD: 490.8 cm2
    • Losses Electrical Resistance RES: 43.2 O
    • Voice Coil Inductance @ 1kHz LE: 0.63 mH
  • Constructive Characteristics for 8O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Epotex
    • Cone: Paper
    • Surround Integrated: Paper
    • Dust Dome: Solid Paper
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 8O
    • Nominal Impedance: 8 O
    • Rated Power: 35 W
    • Musical Power: 70 W
    • Sensitivity @ 1W,1m: 94.6 db
  • Thiele-Small Parameters for 16O:
    • Voice Coil DC Resistance RE: 12.00 O
    • Resonance Frequency ƒS: 87.0 Hz
    • Mechanical Q Factor QMS: 10.16
    • Electrical Q Factor QES: 2.47
    • Total Q Factor QTS: 1.99
    • Mechanical Moving Mass MMS: 24.3 g
    • Mechanical Compliance CMS: 137 µm/N
    • Force Factor BxL: 8.16 Wb/m
    • Equivalent Acoustic Volume VAS: 46.3 lt.
    • Maximum Linear Displacement XMAX: 1.5 mm
    • Reference Efficiency nO: 1.20 %
    • Diaphragm Area SD: 490.8 cm2
    • Losses Electrical Resistance RES: 50.0 O
    • Voice Coil Inductance @ 1kHz LE: 0.95 mH
  • Constructive Characteristics for 16O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Epotex
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Solid Paper
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 16O
    • Nominal Impedance: 16 O
    • Rated Power: 35 W
    • Musical Power: 70 W
    • Sensitivity @ 1W,1m: 93.9 db
