Jensen Loudspeakers P-A-C12K 12" 100W Vintage Ceramic Speaker

OUR PART #: P-A-C12K MFR #: P-A-C12K-16

Copied to clipboard

Jensen Loudspeakers' P-A-C12K is a real workhorse, heavy on the mids with a solid, straightforward tone. ...Read more

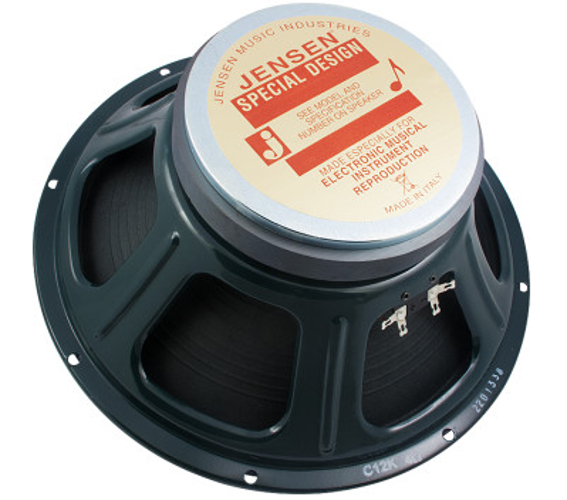

Jensen Loudspeakers P-A-C12K 12" 100W Vintage Ceramic Speaker Image 1
Jensen Loudspeakers P-A-C12K 12" 100W Vintage Ceramic Speaker Image 2
Jensen Loudspeakers P-A-C12K 12" 100W Vintage Ceramic Speaker Image 3
Jensen Loudspeakers P-A-C12K 12" 100W Vintage Ceramic Speaker
Selected Model Price: $131.89
List Price: $202.90
Save up to 35%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
(shipping times are approximate)
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Jensen Loudspeakers' P-A-C12K is a real workhorse, heavy on the mids with a solid, straightforward tone. When presented with overdrive distortion it powers through with lows that are bold and heavy.

Jensen Loudspeakers P-A-C12K Specifications:

  • Nominal Overall Diameter: 12" (307 mm)
  • Nominal Voice Coil Diameter: 2" (50 mm)
  • Magnet Weight: 50 oz (1450 g)
  • Overall Weight: 9.65 lbs
  • Flux Density: 1.10 T
  • Thiele-Small Parameters for 4O:
    • Voice Coil DC Resistance RE: 3.25 O
    • Resonance Frequency ƒS: 102.0 Hz
    • Mechanical Q Factor QMS: 19.80
    • Electrical Q Factor QES: 0.54
    • Total Q Factor QTS: 0.52
    • Mechanical Moving Mass MMS: 34.9 g
    • Mechanical Compliance CMS: 70 µm/N
    • Force Factor BxL: 11.65 Wb/m
    • Equivalent Acoustic Volume VAS: 23.6 lt.
    • Maximum Linear Displacement XMAX: 1.0 mm
    • Reference Efficiency nO: 4.47 %
    • Diaphragm Area SD: 490.9 cm2
    • Losses Electrical Resistance RES: 120 O
    • Voice Coil Inductance @ 1kHz LE: 0.61 mH
  • Constructive Characteristics for 4O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Kapton
    • Cone: Paper
    • Surround Integrated: Paper
    • Dust Dome: Non Treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 4O:
    • Nominal Impedance: 4 O
    • Rated Power: 100 W
    • Musical Power: 200 W
    • Sensitivity @ 1W,1m: 99.4 db
  • General Characteristics for 16O:
    • Nominal Overall Diameter: 12" (307 mm)
    • Nominal Voice Coil Diameter: 2" (50 mm)
    • Magnet Weight: 50 oz (1450 g)
    • Overall Weight: 9.65 lbs
    • Flux Density: 1.10 T
  • Thiele-Small Parameters for 16O:
    • Voice Coil DC Resistance RE: 12.00 O
    • Resonance Frequency ƒS: 107.0 Hz
    • Mechanical Q Factor QMS: 22.37
    • Electrical Q Factor QES: 0.78
    • Total Q Factor QTS: 0.75
    • Mechanical Moving Mass MMS: 29.3 g
    • Mechanical Compliance CMS: 77 µm/N
    • Force Factor BxL: 17.70 Wb/m
    • Equivalent Acoustic Volume VAS: 26.0 lt.
    • Maximum Linear Displacement XMAX: 1.0 mm
    • Reference Efficiency nO: 3.89 %
    • Diaphragm Area SD: 490.9 cm2
    • Losses Electrical Resistance RES: 360 O
    • Voice Coil Inductance @ 1kHz LE: 1.36 mH
  • Constructive Characteristics for 16O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Kapton
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Non Treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 16O:
    • Nominal Impedance: 16 O
    • Rated Power: 100 W
    • Musical Power: 200 W
    • Sensitivity @ 1W,1m: 99.0 db
