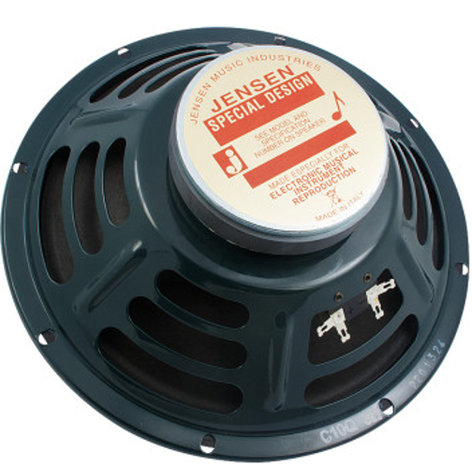

Jensen Loudspeakers P-A-C10Q
10" 35W Vintage Ceramic Speaker

OUR PART #:  P-A-C10Q

Jensen Loudspeakers' P-A-C10Q has straightforward tone with mid-frequency bite. When presented with overdrive distortion, it can sound edgy.
Learn More
Selected Model Price: $51.98
List Price: $71.70
Save up to 28%!
Write the first review.
Jensen Loudspeakers P-A-C10Q
Select a Model: (shipping times are approximate)

Related Products

Jensen Loudspeakers' P-A-C10Q has straightforward tone with mid-frequency bite. When presented with overdrive distortion, it can sound edgy.

Jensen Loudspeaker P-A-C10Q Specifications:

  • General Characteristics:
    • Nominal Overall Diameter: 10" (259 mm)
    • Nominal Voice Coil Diameter: 1.25" (32 mm)
    • Magnet Weight: 15 oz (426 g)
    • Overall Weight: 3.65 lbs
    • Flux Density: 0.92 T
  • Thiele-Small Parameters for 8O:
    • Voice Coil DC Resistance RE: 6.0 O
    • Resonance Frequency ƒS: 96.0 Hz
    • Mechanical Q Factor QMS: 11.57
    • Electrical Q Factor QES: 1.34
    • Total Q Factor QTS: 1.20
    • Mechanical Moving Mass MMS: 16.6 g
    • Mechanical Compliance CMS: 168 µm/N
    • Force Factor BxL: 6.68 Wb/m
    • Equivalent Acoustic Volume VAS: 25.7 lt.
    • Maximum Linear Displacement XMAX: 1.5 mm
    • Reference Efficiency nO: 1.61 %
    • Diaphragm Area SD: 330.0 cm2
    • Losses Electrical Resistance RES: 52 O
    • Voice Coil Inductance @ 1kHz LE: 0.62 mH
  • Constructive Characteristics for 8O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Epotex
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Solid Paper
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 8O:
    • Nominal Impedance: 8 O
    • Rated Power: 35 W
    • Musical Power: 70 W
    • Sensitivity @ 1W,1m: 95.2 dB
  • Thiele-Small Parameters for 16O:
    • Voice Coil DC Resistance RE: 12.0 O
    • Resonance Frequency ƒS: 105.0 Hz
    • Mechanical Q Factor QMS: 13.06
    • Electrical Q Factor QES: 2.01
    • Total Q Factor QTS: 1.74
    • Mechanical Moving Mass MMS: 14.7 g
    • Mechanical Compliance CMS: 156 µm/N
    • Force Factor BxL: 7.60 Wb/m
    • Equivalent Acoustic Volume VAS: 23.9 lt.
    • Maximum Linear Displacement XMAX: 1.5 mm
    • Reference Efficiency nO: 1.33 %
    • Diaphragm Area SD: 330.0 cm2
    • Losses Electrical Resistance RES: 80 O
    • Voice Coil Inductance @ 1kHz LE: 1.00 mH
  • Constructive Characteristics for 16O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Epotex
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Solid Paper
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 16O:
    • Nominal Impedance: 16 O
    • Rated Power: 35 W
    • Musical Power: 70 W
    • Sensitivity @ 1W,1m: 94.5 dB
