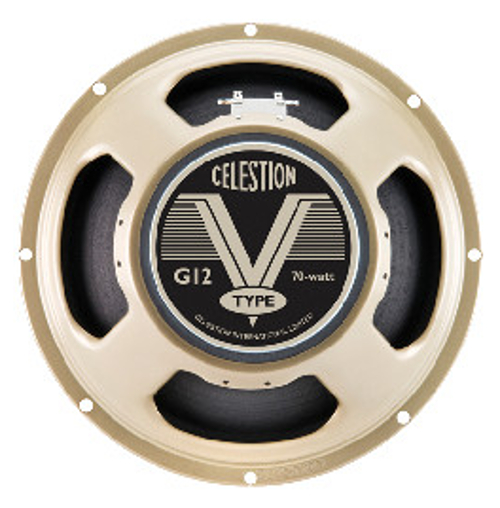

Celestion V-Type
12" Guitar Speaker

OUR PART #:  V-TYPE-12IN-G-SPEAKR

Combining decades of experience with advanced measurement and analysis, the V-Type has been built using a carefully balanced 'recipe' of old and new design techniques.
Learn More
Selected Model Price: $87.75
List Price: $145.13
Save up to 40%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Celestion V-Type
Select model: (shipping times are approximate)
Qty:

Similar Products

Combining decades of experience with advanced measurement and analysis, the V-Type has been built using a carefully balanced 'recipe' of old and new design techniques. It produces a heady, exciting modern vintage sound that just makes you want to keep on playing: a speaker that delivers authentic Celestion tone whatever your style.The V-type is a sweet sounding speaker with a superbly balanced tonal signature that imparts a vintage musicality to your tone. Clean sounds are true across the lows, mids and highs, with just enough upper-mid chime and HF sparkle to add clarity and definition. Crank it up for a sizzling overdrive and raw rock tones, with plenty of mid-band warmth to give body and substance to lead note playing.

Celestion V-Type Specifications:

  • Nominal diameter: 12" (305mm)
  • Power rating: 70Wrms
  • Nominal impedance: Available 8O or 16O
  • Sensitivity: 98dB
  • Chassis type: Pressed steel
  • Voice coil diameter: 1.75" (44.5mm)
  • Voice coil material: Round copper
  • Magnet type: Ceramic
  • Magnet weight: 31oz (0.88Kg)
  • Frequency range: 70-5000 Hz
  • Resonance frequency, Fs: 75Hz
  • DC resistance, Re: Available 7.3O or 12.9O
  • 8Ohm Frequency Response:
    Product Graph
  • Mounting Information:
    • Cut-out diameter: 11.1" (283mm)
    • Diameter: 12.2" (309mm)
    • Magnet structure diameter: 5.3” (134mm)
    • Mounting slot dimensions: 0.31" (7.9mm) Ø
    • Mounting slot PCD: 11.7" (297mm)
    • Number of mounting slots: 8
    • Overall depth: 4.84” (123mm)
    • Unit weight: 7.2lb (3.3kg)
