Electro-Voice EVF-1122D/126
12" 2-Way 120°x60° Full-Range 2400W Peak Passive Loudspeaker

OUR PART #:  EVF-1122D/126-FGW

The Electro-Voice EVF-1122D/126 features a 120° x 60° rotatable waveguide and is designed for near field widest throw coverage pattern applications.
Learn More
Selected Model Price: $3,424.00
Write the first review.
Electro-Voice EVF-1122D/126
Select a Model: (shipping times are approximate)
Qty:
Related Products

The Electro-Voice EVF-1122D/126 features a 120° x 60° rotatable waveguide and is designed for near field widest throw coverage pattern applications.

Every loudspeaker and subwoofer in the EVF Series can be used for a wide variety of fixed-install applications where high-quality sound reinforcement is required in a compact, lightweight, and simple-to-use package. Part of the EV-Innovation loudspeaker family, the EVF Series of two-way, front-loaded, full-range systems is available with 12“ or 15“ woofers, a wide range of coverage patterns, and includes low-frequency systems.

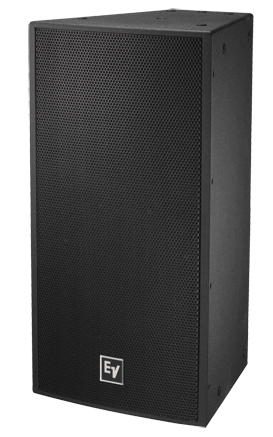

NOTE:  Image shown above shows product in Black, EVF-1122D/126 also available in White. For more information on this and other products, contact your Sales Representative.

Electro-Voice EVF-1122D/126 Features:

  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60º to 120º
  • 97 dB sensitivity, 131 dB maximum SPL
  • Power handling: 600 W continuous, 2400 W peak
  • 4th-order passive crossover with HF protection
  • Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)

Electro-Voice EVF-1122D/126 Specifications:

  • Environmental Specs:  Standard versions: IEC60529 IP44, PI and FG versions: IEC 60529 IP55
  • Input Connections:  Phoenix/Euroblock styles crew terminals; PI and FG versions include dual-gland-nut input-panel cover
  • Frequency Response (-3 dB):  57 Hz - 18 kHz
  • Frequency Response (-10 dB):  49 Hz - 21 kHz
  • Recommended High-Pass Frequency:  65 Hz
  • Sensitivity 1 W/1 m:  97 dB
  • Max. SPL/1m (calc):  131 dB
  • Coverage (Nominal -6 dB) H:  120°
  • Coverage (Nominal -6 dB) V:  60°
  • System Power Handling (Continuous/Program/Peak):  600/1200/2400 Watts
  • LF Transducer:  DVX312A 12-inch (305 mm) woofer
  • LF Nominal Impedance:  8 Ohms
  • HF Transducer:  DH7N 3-inch (76mm) diaphragm compression driver
  • Crossover Frequency:  1300 Hz
  • Nominal Impedance (Passive):  8 Ohms
  • Minimum Impedance:  6 Ohms
  • Enclosure Material:  13-ply weather-resistant birch with EVCoat
  • Grille:  16 GA powder-coated galvanneal with screen behind
  • Suspension:  22 M10 threaded suspension points
  • Dimensions
    • Height:  30.26" (768.6 mm)
    • Width:  16" (406.3 mm)
    • Depth:  16.27" (413.3 mm)
  • Weight Net:  65.48 lbs (29.7 kg)
  • Shipping Weight:  75.84 lbs (34.4 kg)
