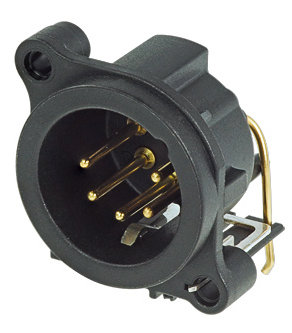

Neutrik NC5MAH
5-Pin XLR-M Horizontal PCB Mount Connector

OUR PART #:  NC5MAH

The Neutrik NC5MAH is a 5-pin XLR-M horizontal PCB mount connector with a separate ground contact to mating connector shell and front panel.
Learn More
Our Price: $3.47
List Price: $6.07
Save up to 52% when you order by quantity!
  • Buy 25: $3.14 each.
  • Buy 50: $3.02 each.
  • Buy 100: $2.91 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NC5MAH
Qty:
Similar Products

The Neutrik NC5MAH is a 5-pin XLR-M horizontal PCB mount connector with a separate ground contact to mating connector shell and front panel. This connector features a round plastic body and has the smallest size and packing density (23mm between centers) available from Neutrik. UL recognized component.

Neutrik NC5MAH Features:

  • Smallest XLR receptables, highest packing density
  • Plastic housing, steel latch lock
  • Polished contact areas and hard gold plating
  • Housing flammability UL94HB

Neutrik NC5MAH Specifications:

  • Capacitance Between Contacts:  </= 7 pF
  • Contact Resistance:  </= 5 Megohms (inner)
  • Dielectric Strength:  1.5 kVdc
  • Insulation Resistance:  > 10 Gigohms (initial)
  • Rated Current per Contact:  3 A
  • Rated Voltage:  50 V
  • Grounding Options:  Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
  • Insertion Force:  </= 20 N
  • Withdrawal Force:  </= 20 N
  • Lifetime:  > 1000 mating cycles
  • Wiring:  Horizontal PCB mount
  • Locking Device:  Latch lock
  • Mounting Direction:  Rear
  • Chassis Shape:  A
  • Mounting:  A-Screw
  • Contacts:  Brass (CuZn35Pb2)
  • Insert:  Polyamide (PA 6.6 30 % GR)
  • Flange:  Black Plastic
  • Flammability:  UL 94 HB
  • Standard Compliance:  IEC 61076-2-103
  • Protection Class:  IP 40
  • Solderability:  Complies with IEC 68-2-20
  • Temperature Range:  -30 °C to +80 °C
