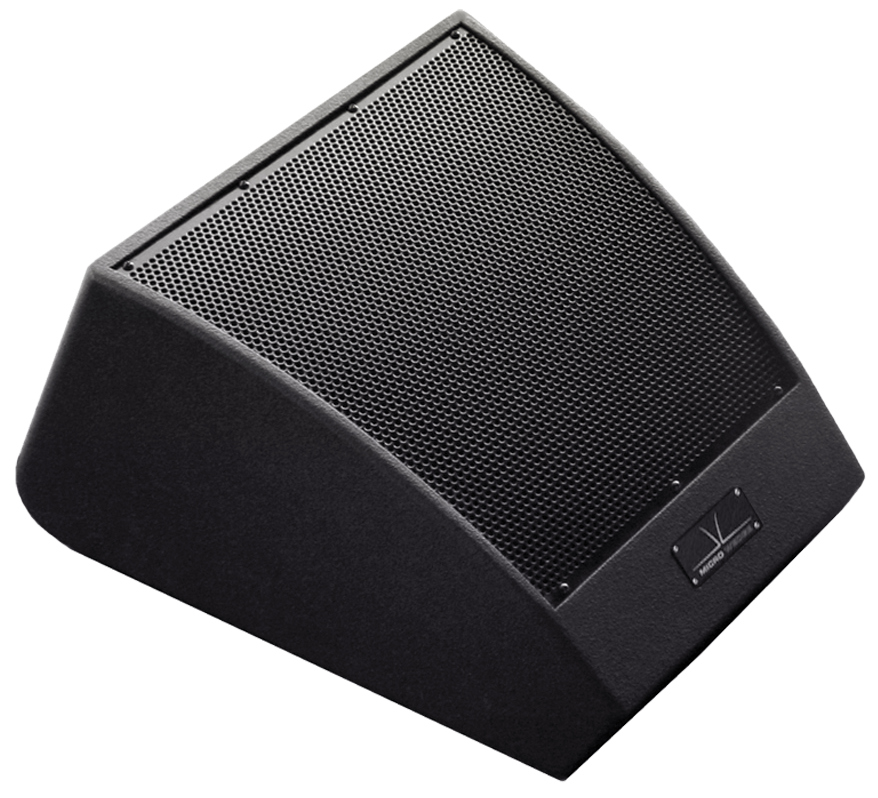

EAW-Eastern Acoustic Wrks MicroWedge MW8
350W @ 8 Ohms 8" MicroWedge Series Stage Monitor

OUR PART #:  MW8

The EAW MicroWedge MW8 is collaboration between original MicroWedge Series inventor Dave “Rat” Levine (owner of Rat Sound Systems, Inc.) and the EAW Engineering Department...
Learn More
Our Price: $1,708.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

EAW-Eastern Acoustic Wrks MicroWedge MW8
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The EAW MicroWedge MW8 is collaboration between original MicroWedge Series inventor Dave “Rat” Levine (owner of Rat Sound Systems, Inc.) and the EAW Engineering Department, resulting in dramatically upgraded performance and ergonomics. The coaxial design pairs a 8-inch woofer with a 1.75-inch voice-coil compression driver to provide full yet controlled 90-degree conical dispersion.

All frequencies emanate from the exact same point, eliminating crossover region problems and time/phase irregularities, as well as optimizing coherency. The coaxial approach also contributes to a very compact, low-profile footprint.

The port on the front of the cabinet enhances LF response in coupling with the floor, the opening also houses a convenient carrying handle and dual NL4 connectors.

The MW8 enjoys the advantage of working equally well as a stage monitor or as a console bridge monitor. It was designed with a sturdy balance so that when set upright (on its backside) it rests easily on either side of a console bridge. A conveniently located pair of NL4 connectors further simplifies console setup. An optional pole mount is also available.

The Baltic birch cabinets are available in a black or white finish. The black monitors are protected with EAW’s RoadCoatTM which provides a black finish and tremendous scratch resistance. The white monitors are coated in an extremely durable latex finish. The rugged steel grill keeps its distinctive shape even if stood upon. Points for Omni-mount plates are located the bottom of the MW8 to aid in hanging the monitors.

For applications that require enhanced performance the MW8 can be optimized using the EAW UX8800 digital signal processor.

EAW MicroWedge MW8 Features:

  • Highly coherent coaxial design (8" woofer, vented)
  • Enhanced fidelity and power handling
  • Upgraded transducers and crossover design
  • Convenient input connector location
  • Sturdy balance for console bridge monitor use
  • 6 year warranty from EAW

EAW MicroWedge MW8 Specifications:

  • Subsystem:
    • LF:  8" cone, vented, coaxial with HF
    • HF:  1" exit compression driver, horn-loaded
  • Operating Mode:
    • Single-amp LF/HF
    • High pass filter
  • Operating Range:  73 Hz - 18 kHz
  • Axial Sensitivity (1W @ 1m) Full Range:  94 dB SPL
  • Power Handling / Impedance Full Range:  350W @ 8 Ohms
  • Calculated Maximum Output Peak Full Range:  125 dB SPL
  • Calculated Maximum Output Long Term Full Range:  119 dB SPL
  • Nominal Coverage:
    • Horizontal:  90°
    • Vertical:  90°
  • Dimensions:
    • Height (min. stage)  9.81" (249mm)
    • Width (front):  8.59" (218mm)
    • Width (rear):  12.11" (308mm)
    • Depth:  15.43" (392mm)
    • Trap. Angle (degrees per side):  6.5°
    • Floor (degrees up):  27°
  • Weights:
    • Net:  19.5 lbs (9 kg)
    • Shipping:  30 lbs (14 kg)
