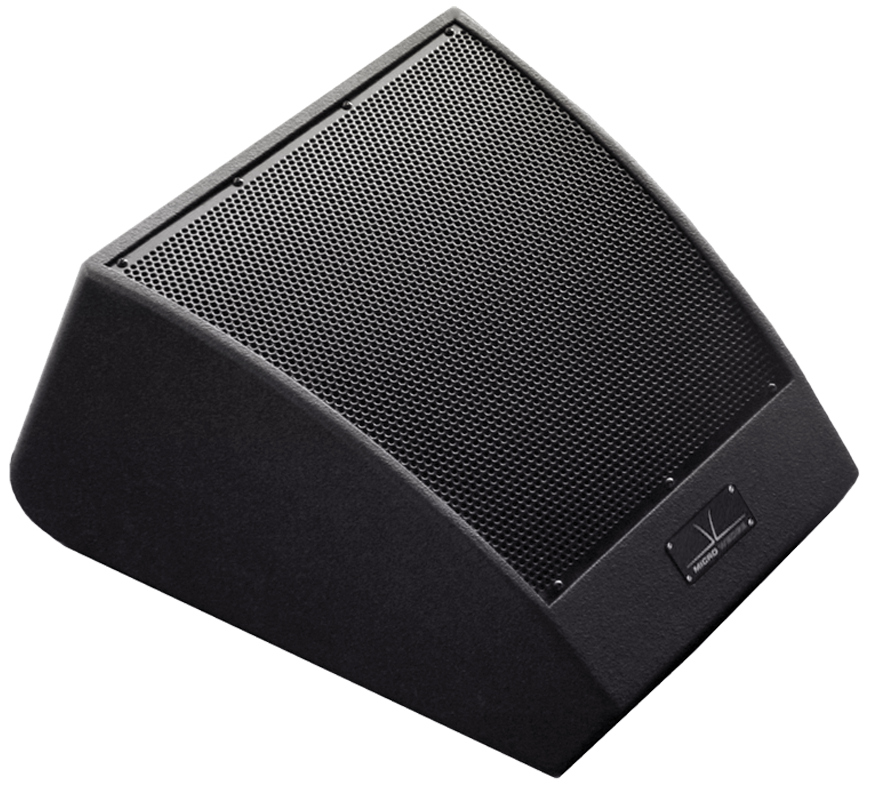

EAW-Eastern Acoustic Wrks MicroWedge MW15
1000W @ 8 Ohms 15" MicroWedge Series Stage Monitor

OUR PART #:  MW15

The EAW MicroWedge MW15 is collaboration between original MicroWedge Series inventor Dave “Rat” Levine (owner of Rat Sound Systems, Inc.) and the EAW Engineering Department...
Learn More
Our Price: $3,234.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

EAW-Eastern Acoustic Wrks MicroWedge MW15
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The EAW MicroWedge MW15 is collaboration between original MicroWedge Series inventor Dave “Rat” Levine (owner of Rat Sound Systems, Inc.) and the EAW Engineering Department, resulting in dramatically upgraded performance and ergonomics. The coaxial design pairs a 15-inch woofer with a 3-inch voice-coil compression driver to provide full yet controlled 90-degree conical dispersion.

All frequencies emanate from the exact same point, eliminating crossover region problems and time/phase irregularities, as well as optimizing coherency. The coaxial approach also contributes to a very compact, low-profile footprint.

MicroWedge MW15 monitors are processor enhanced (rather than processor dependant) for true “plug and play” operation. User selectable single-amp and bi-amp modes are provided. The large port on the front of the cabinet enhances LF response in coupling with the floor, and this port houses both the carrying handle and the passive/active mode switch. The port also contains dual input connectors, keeping them concealed and protected, and allowing wedges to be placed as close together as desired. Additional cable can be stored in the port without impacting LF performance.

Rubber feet on the bottom of the enclosure reduce abrasion, and new integral rigging hardware – also mounted on the enclosure bottom – facilitates easy flying. The Baltic birch cabinets are protected with EAW’s RoadCoat™ finish that’s extremely durable, and the rugged steel grille keeps its distinctive shape even when stood upon. All components are highly liquid tolerant – virtually impervious to spilled drinks as well as natural elements like rain.

EAW MicroWedge MW15 Features:

  • Highly coherent coaxial design (15-inch woofer)
  • Enhanced fidelity and power handling
  • Upgraded transducers and crossover design
  • Switchable single-amp/bi-amp modes
  • Convenient input connector location
  • 6 year warranty from EAW

EAW MicroWedge MW15 Specifications:

  • Subsystem:
    • LF:  15-in cone, vented, coaxial with HF
    • HF:  1x 1.4 in exit, 3 in. voice coil compression driver, Horn-loaded
  • Operating Mode:
    • Single-amp LF/HF; Bi-amp LF, HF
    • High pass filter; DSP w/2-way filters
  • Operating Range (-10 dB):  62 Hz – 20 kHz
  • Axial Sensitivity (1W @ 1m):
    • LF:  97 dB SPL
    • HF:  106 dB SPL
    • Full Range:  96 dB SPL
  • Power Handling / Impedance:
    • LF:  1000W @ 8 Ohms
    • HF:  150W @ 8 Ohms
    • Full Range:  1000W @ 8 Ohms
  • Calculated Maximum Output Peak:
    • LF:  133 dB SPL
    • HF:  134 dB SPL
    • Full Range:  132 dB SPL
  • Calculated Maximum Output Long Term:
    • LF:  127 dB SPL
    • HF:  128 dB SPL
    • Full Range:  126 dB SPL
  • Nominal Coverage:
    • Horizontal:  90°
    • Vertical:  90°
  • Powering (Switchable):  Full range or biamplified
  • Dimensions:
    • Height (min. stage):  14.10" (357.0mm)
    • Width (front):  14.75" (374.6mm)
    • Width (rear):  19.05" (483.9mm)
    • Depth:  24.17" (614.0mm)
    • Trap. Angle (degrees per side):  6.5°
    • Floor (degrees up):  27°
  • Weights:
    • Net:  65 lbs (29.5 kg)
    • Shipping:  74 lbs (33.6 kg)
