RapcoHorizon Music SN20-IJIS
Unterminated 20-Channel CL2 Individually Jacketed & Shielded Audio Snake Cable, Priced By The Foot

OUR PART #:  SN20-IJIS

The RapcoHorizon SN20-IJIS is a 20-pair, 24AWG stranded bare copper, polypropylene insulated...
Learn More
Our Price: $2.74
List Price: $3.90
You save 30%!
Write the first review.
RapcoHorizon Music SN20-IJIS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

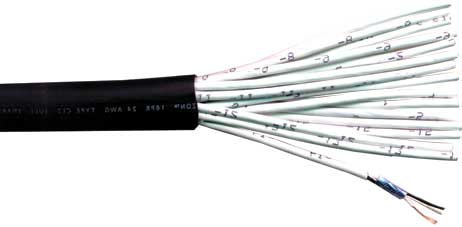

The RapcoHorizon SN20-IJIS is a 20-pair, 24AWG stranded bare copper, polypropylene insulated, individually shielded, individually jacketed, overall CL2 PVC jacket, multipair snake wire.

NOTE:  This cable is priced by the foot. For more information on this and other products, contact your Sales Representative.

RapcoHorizon SN20-IJIS Specifications:

  • Cable: SN20-IJIS
  • Conductor Gauge: 24 gauge
  • Shield: Alum/polyester tape and tinned copper drain
  • Shield Coverage: 100%
  • Jacket: Matte PVC
  • Capacitance: 25 pF/ft. @ 1 kHz
  • Cond.-Shield Capacitance: 45 pF/ft. @ 1 kHz
  • Characteristic Impedance: 60 ohm nominal
  • D.C. Resistance @ 20°C: 24.5 ohm/1000 ft.
