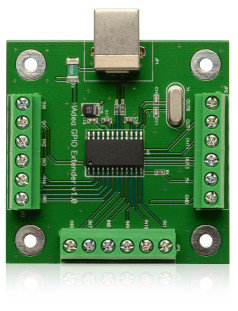

Gefen Inc EXT-DSWF-GPIO
GPIO PCB for DSWF Products

OUR PART #:  EXT-DSWF-GPIO

The Gefen EXT-DSWF-GPIO GPIO PCB for DSWF Products allows you to add interactivity with relays and switches to enhance your Digital Signage presentation.
Learn More
Our Price: $99.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Gefen Inc EXT-DSWF-GPIO
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Gefen EXT-DSWF-GPIO GPIO PCB for DSWF Products allows you to add interactivity with relays and switches to enhance your Digital Signage presentation.

The Gefen General Purpose Input/Output (GPIO) module works with the Gefen Digital Signage Player with Wi-Fi (or Wi-Fi Plus), allowing the professional integrator to add optical sensors, relays, lighting controls, buttons, and other devices to existing digital signage presentations.  Use the GPIO module with a motion sensor to automatically play digital signage content when someone approaches a screen or to trigger a relay to change the lighting at a kiosk or other destination--the possibilities are limited only by your creativity.  External events are sent via USB into the Digital Signage Player and integrated into the SMIL script to trigger playlists.  The GPIO module draws minimal power by using simple open-close circuits on the input and output ports.

How it Works

Connect the included USB cable from one of the USB ports on the Digital Signage Player with Wi-Fi (or Wi-Fi Plus) to the USB port on the GPIO.  Connect switches or sensors to the inputs.  Connect lights or relays to the outputs.

Includes:

  • 1x GPIO PCB for DSWF Products (EXT-DSWF-GPIO)
  • 1x 3 ft. USB Cable (A-B) (CAB-USB-DSWF-03)
  • 1x Quick-Start Guide (QSG-DSWF-GPIO)

Gefen EXT-DSWF-GPIO Features:

  • 10 inputs
  • 4 outputs
  • Works with the Gefen Digital Signage Player with Wi-Fi and Digital Signage Player with Wi-Fi Plus

Gefen EXT-DSWF-GPIO Specifications:

  • Input ports: (10) Short-to-ground for "on" state,"float" for "off" state
  • Output ports: (4) Short-to-ground for "on" state, high-impedance for "off" state
  • Connectors: Phoenix (Euroblock) type
  • Input Range: 0 - 5V DC (max.)
  • Current Draw: 250mA (max.) (from USB port)
  • Output current: 20mA per port (max.)
  • Total output port current: 50mA (max.)
  • Dimensions: 2.3" W x 0.5" H x 2.3" D (59 x 12.75 x 56 mm)
  • Unit Weight: 1.3 oz (37 g)
