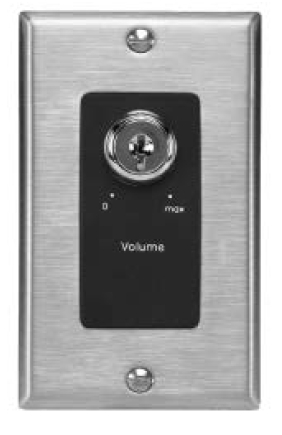

Lowell KL100-PA-DSB Priority Attenuator with Keylock, 100W, 70V/25V, Single Gang, Stainless Steel, Decorator Black

The Lowell KL100-PA-DSB is a 100 Watt single-gang keylock volume control attenuator wall plate for 25/70/100V speaker lines. This wall plate comes in a Decora stainless steel finish with a black subplate.

Lowell’s KL-series volume controls feature a keylock instead of a knob to adjust volume levels. The patented design provides systems administrators with secure settings for volume level of critical paging and/or emergency systems. These controls allow precise level adjustment of single or multiple speaker lines and are advantageous for maintaining comfortable listening levels for music, paging, or masking in health clubs, entertainment and retail facilities, schools and offices of all kinds. The one-gang Decora assemblies have a 100W power rating and include easy to connect, phoenix-style plug-in screw termination strips for prewire convenience with wire capacity up to 14-gauge. Attenuation is 3dB per step.

Lowell KL100-PA-DSB Features:

• Emergency Bypass Option: The KL100-PA series includes a 24VDC @ 5mA relay for applications that require emergency and paging signals to bypass/override the control.
• Volume adjustment is performed using a keylock instead of a knob to avoid unauthorized setting changes.
• ETL Listed
• 100W power rating
• Compact single gang size blends with other wall devices
• 1.75" depth fits standard E.O. boxes
