Microtech Gefell M1030-EA92 Cardioid Condenser Studio Microphone with EA 92 Shockmount

OUR PART #: M1030-EA92

Copied to clipboard

The Microtech Gefell M 1030 studio condenser microphone combines modern large diaphragm capsule technology with the latest in semiconductor circuit topology. ...Read more

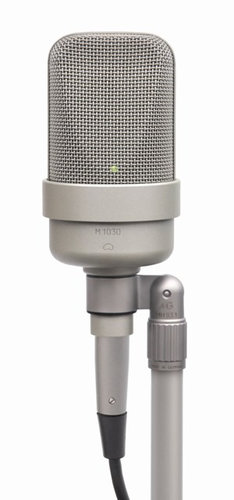

Microtech Gefell M1030-EA92 Cardioid Condenser Studio Microphone With EA 92 Shockmount Image 1
Microtech Gefell M1030-EA92 Cardioid Condenser Studio Microphone With EA 92 Shockmount Image 2
Microtech Gefell M1030-EA92 Cardioid Condenser Studio Microphone With EA 92 Shockmount Image 3
Microtech Gefell M1030-EA92 Cardioid Condenser Studio Microphone With EA 92 Shockmount
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Microtech Gefell M 1030 studio condenser microphone combines modern large diaphragm capsule technology with the latest in semiconductor circuit topology. The size of the microphone housing is optimized with regard to the expectations of a large diaphragm microphone for studio applications.

The M 1030 is specifically designed to meet the needs of professional and semi-professional users who demand the highest performance. The microphones are ideally suited for universal miking applications in broadcast and sound studios. Applications include vocalists, announcers, dialogue pickup and as spot microphones for recording guitars, keyboard, percussion, wind and string instruments.

The M 1030's pick-up pattern is perpendicular to the direction of the microphone axis (side addressed). The model number and pick-up pattern symbol mark the front of the microphone. The green light emitting diode (LED) inside the protection grid operates as optical ready indicator.

The condenser capsule of the M 1030 exhibits a smooth frequency response with a slight presence boost in the 8 to 14 kHz range. The polar response exhibits an exceptionally high degree of rejection for sounds impinging from the rear (cardioid) or sides (super-cardioid) of the microphone. The electronic impedance converter uses a newly perfected circuit topology. This design reduces the noise floor to an extremely low level while also raising the maximum output capability. As a result, the M 1030 has a clean, distortion free sound over an extremely wide dynamic range and RFI susceptibility is very low as well.

The M 1030 capsule and electronics are elastically suspended inside the compact metal housing. This reduces the sensitivity to mechanical impact and structure born noise. The included EA 92 elastic suspension shockmount with the A 93 adaptor help to attenuate external noise. The M 1030 connects to microphone cables with a standard 3-pin XLR plug. Power must be provided by an external 48 V phantom supply according to DIN 45596 and IEC 268-15.

Microtech Gefell M 1030 Includes:

  • M 1030 Large Diaphragm Condesner Microphone
  • EA 92 Elastic Shockmount
  • A 93 Adaptor
  • Custom Wood Storage Case

Microtech Gefell M 1030 Features:

  • Extreme Dynamic Range
  • Noise Floor: 7 dB-A
  • Large Diaphragm Capsule
  • Polar Pattern: Cardioid
  • Universal Applications
  • Advanced Circuit Design
  • Transformerless Output
  • Internal Elastic Suspension
  • Green LED - Visual Ready Indicator

Microtech Gefell M 1030 Specifications:

  • Polar pattern: Cardioid
  • Acoustic operating principle: Pressure gradienttransducer
  • Frequency range: 40 Hz - 20 kHz
  • Sensitivity at 1 kHz: 21 mV/Pa
  • Output impedance: 100 Ohms
  • Noise level:
    • CCIR 468 - 4: 13 dB
    • DIN EN 60651: 7 dB - A
  • Signal-to-noise ratio (re 1 Pa at 1 kHz):
    • CCIR Weighted: 81 dB
    • A Weighted: 87 dB
  • Max. SPL for K < 0.5%: 142 dB
  • Max. output level:
    • RL = 1k Ohm: 17 dBu
    • RL = 10k Ohm: 18 dBu
  • Dynamic range of electronics: 135 dB
  • Current consumption ( P 48, DIN 45596, IEC 268 - 15): 3.6 mA
  • Output connector: 3-pin XLR connector, goldplated contacts
  • Weight without MH 93.1: 355 g
  • Dimensions ( L x Ø ): 145 mm x 66 mm
  • Finish: Satin Matte Nickel

Note

NOTE: Images shown above are for illustrative purposes only; the MH 93.1 microphone stand holder shown is NOT included with purchase, however the EA 92 elastic suspension shockmount shown is included with purchase. For more information on this and other products, contact your Sales Representative.
