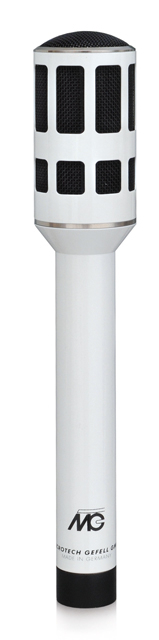

Microtech Gefell PM 860
Cardioid Condenser Handheld Studio Microphone

OUR PART #:  PM860

Selected Model Price: $1,888.16
List Price: $1,890.40
Write the first review.
Microtech Gefell PM 860
Select a Model: (shipping times are approximate)

The Microtech Gefell PM 860 cardioid condenser studio microphone is an end-address microphone that is designed as a vocal performance microphone with good handling noise rejection and features a well-balanced frequency response in the free field as well as in the diffuse field and the distinct cardioid characteristics help create a life-like recording of any sound source with good selectivity. The influence of interference sources such as inherent noise, windnoise and solid-borne sound is reduced by suitable precautions. The microphone capsule and microphone amplifier within the PM 860 are adjusted to optimum transmission properties.

The PM 860 circuitry includes a FET input stage, an integrated circuit, AC/DC converter circuit for the generation of the polarization voltage and the output transformer. There are two switches on the PM 860, the first offers a 10 dB pre-attenuation pad for very high sound pressure levels. The second switch provides a high-rolling off bass frequencies at 60 Hz and below. These two switches are found at the lower end of the microphone body.

The PM 860 is equipped with a 3-pin XLR connector and requires 48 V phantom power, which is internationally standardized as P 48 in DIN 45596 and IEC 268-15.

Microtech Gefell PM 860 Includes:

  • PM 860 Cardioid Condenser Microphone
  • MH 75 Microphone Holder
  • Custom Wood Carrying Case

Microtech Gefell PM 860 Features:

  • Cardioid Polar Pattern
  • Switchable 10 dB Pad
  • Switchable 60 Hz High-Pass Filter
  • Integrated Pop Filter
  • Output Transformer

Microtech Gefell PM 860 Specifications:

  • Polar Pattern:  Cardioid
  • Acoustical Operating Principle:  Pressure Gradient Transducer
  • Frequency Range:  30 Hz - 20 kHz
  • Switch Position "Reduced Bass Roll-Off" at 60 Hz:  - 10 dB +/- 1 dB
  • Sensitivity at 1 kHz:  13 mV / Pa +/- 1 dB
  • Rated Impedance:  200 Ohms
  • Nominal Load Impedance:  1k Ohm
  • Noise Level:
    • CCIR 468-4:  25 dB
    • DIN EN 60651:  16 dB - A
  • Signal-to-noise ratio (re auf 1 Pa bei 1 kHz):
    • CCIR-weighted:  69 dB
    • A-weighted:  78 dB
  • MAX. SPL for THD = 0,5 %:  122 dB; 132 dB with 10 dB pre-attenuation
  • Dynamic Range of Electronics:  106 dB
  • Current Consumption (P 48, DIN 45596, IEC 268-15):  2 mA
  • Output Connector:  3-pin XLR connector, gold plated contacts
  • Weight:  280 g
  • Dimensions (L x Ø ):  240 mm x 42/25 mm
