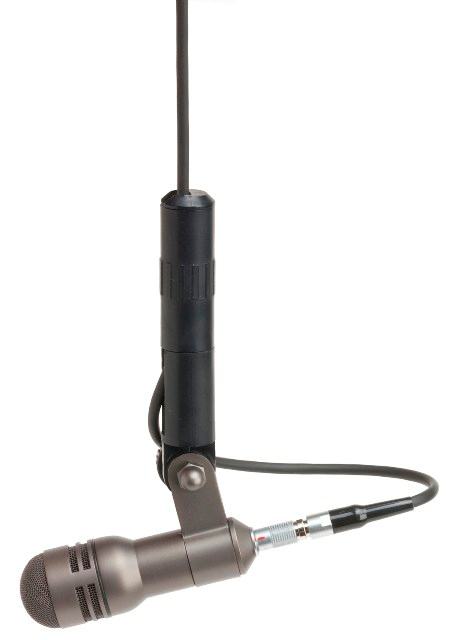

Microtech Gefell BM 190
Cardioid Condenser Hanging Stage Microphone

OUR PART #:  BM190

The Microtech Gefell BM 190 stage microphone is a compact member of the micon series of studio condenser microphones.
Learn More
Our Price: $2,241.35
List Price: $2,244.00
Write the first review.
Microtech Gefell BM 190
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Microtech Gefell BM 190 stage microphone is a compact member of the micon series of studio condenser microphones. A classic 48V phantom powered condenser microphone design, the BM 190 ensures a high degree of intelligibility and clarity for speech, vocals and music, also when used in less favorable acoustic conditions.

The design makes it particularly suited to suspension above stages. Sound engineers in Theatre, Opera and Television will be particularly impressed by the visually unobtrusive appearance of the microphone. The BM 190 comprises a BMK 190 microphone capsule and the BMV 190 stage microphone preamplifier.

Use of a special capsule with a cardioid characteristic achieves excellent attenuation of undesired acoustic interference in the vicinity of the microphone. The suspension coupling provides secure positioning and precise orientation of the microphone.  The BMK 190 microphone capsule is attached to the suspension coupling with a swivel clip, and after connecting to the microphone capsule, the connecting cable is plugged into the BMV 190 preamplifier and is powered from the 48V phantom power supply via a 3 pin XLR. If required, the use of a W 19 Windshield is recommended.

The BM 190 stage microphone has a balanced frequency response that ensures a neutral capture of sound and the electronic circuitry employed generates a negligible noise level. The low output impedance means that XLR cable extensions can be used where required.

The microphone is supplied in a dark bronze finish. A LEMO® mini-connector system provides an easy way to exchange the BMK 190 cardioid capsule with a BMK 180 omnidirectional capsule (sold seperately).

Microtech Gefell BM 190 Includes:

  • BMK 190 Stage microphone capsule
  • BMV 190 Stage microphone preamplifier
  • W 19 Windscreen
  • C 19.05 Connection Cable, 5 meter length
  • Custom Wood Case

Microtech Gefell BM 190 Specifications:

  • Polar Characteristic:  Cardioid
  • Acoustic Operating Principle:  Pressure Gradient Transducer
  • Frequency Range:  40 Hz - 16 kHz
  • Sensitivity at 1 kHz:  14 mV/Pa
  • Rated Impedance:  100 Ohms
  • Equivalent Loudness Level (DIN EN 60651):  15 dB-A
  • Max. SPL for </= 0.5 % Distortion:  146 dB
  • Dynamic Range of Microphone Preamplifier:  131 dB
  • Current Consumption P48:  3.3 mA
  • Connector Types:
    • BMK 190:  4-pin LEMO connector 00, gold plated contacts
    • BMV 190:  3-pin XLR connector, gold plated contacts
  • Length of Connection Cable:  5 m
  • Weight:  290 g
  • Length of BMK 190 Capsule:  64 mm
  • Diameter of Microphone:  21 mm
  • Surface Finish:  Dark Bronze
