Microtech Gefell TM 190.2
Cardioid Condenser Desktop Microphone

OUR PART #:  TM190.2

Our Price: $2,241.35
List Price: $2,244.00
Write the first review.
Microtech Gefell TM 190.2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

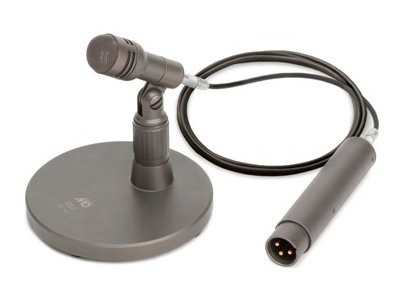

The Microtech Gefell TM 190.2 cardioid condenser desktop microphone has a balanced frequency response ensure a neutral sound and is designed for applications such as commentary, translators, and TV/Radio. This microphone featuress a classic 48V phantom powered condenser microphone design, which ensures a high degree of speech intelligibility even in unfavorable acoustic conditions and its unobtrusive appearance also makes the TM 190.2 ideal for use on conference tables.

The TM 190.2 consists of the TMK 190 K desktop microphone capsule, the MF 90 desktop microphone base seat and the BMV 190 desktop microphone preamplifier. Use of a special capsule with a cardioid characteristic achieves excellent suppression of undesired acoustic sound levels in the vicinity of the microphone. The MF 90 metal base seat provides a good slide-resistant base, and the microphone holder provides comprehensive angular adjustment of the microphone. The TM 190.2 also features a low output impedance which allows for long XLR cable runs when needed.

Microtech Gefell TM 190.2 Includes:

  • TMK 190 K Desktop Microphone Capsule
  • BMV 190 Stage Microphone Preamplifier
  • MF 90 Desktop Microphone Base Seat
  • W 19 Windscreen
  • 1.5 Meter Connection Cable, for use between the TMK 190 K capsule and the BMV 190 preamplifier
  • Custom Wood Carrying Case

Microtech Gefell TM 190.2 Specifications:

  • Polar Pattern:  Cardioid
  • Acoustic Operating Principle:  Pressure Gradient Transducer
  • Frequency Range:  40 Hz - 16  kHz
  • Sensitivity at 1 kHz:  14 mV/Pa
  • Rated Impedance:  100 Ohms
  • Equivalent Loudness Level DIN EN 60651:  15 dB-A
  • Max. SPL for THD </= 0.5%:  146 dB
  • BMV 190 Total Dynamic Range:  131 dB
  • Current Consumption (P48):  3.3 mA
  • Connectors:
    • TMK 190 K:  4-pin LEMO connector 00, gold plated contacts
    • BMV 190:  3-pin XLR connector, gold plated contacts
  • Connection Cable Length:  1.5 m
  • Weight:  290 g
  • TMK 190 K Length:  64 mm
  • Diameter of Microphones:  21 mm
  • Diameter of Metal Foot MF 90:  100 mm
  • Finish:  Dark Bronze
