Microtech Gefell TMV 325
Table Top Condenser Microphone with M 30 Cardioid or M 31 Supercardioid Capsule

OUR PART #:  TMV-325

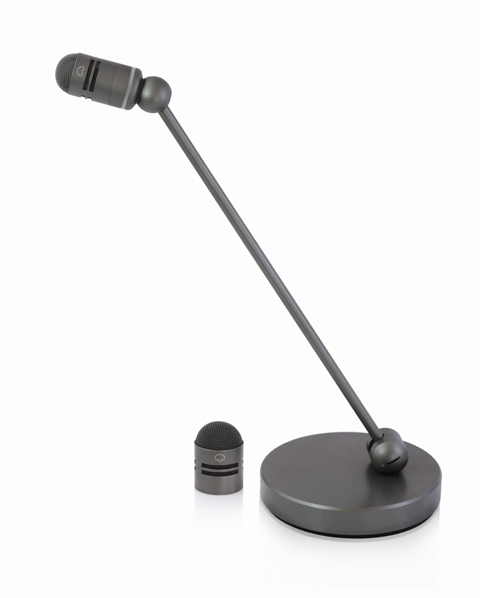

The Microtech Gefell TMV 325 is a table top condenser microphone with a 250mm arm that accomodates either the M 30 cardioid capsule or the M 31 supercardioid capsule.
Learn More
Selected Model Price: $2,513.02
List Price: $2,516.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Microtech Gefell TMV 325
Select model: (shipping times are approximate)
Qty:

Similar Products

The Microtech Gefell TMV 325 is a table top condenser microphone with a 250mm arm that accomodates either the M 30 cardioid capsule or the M 31 supercardioid capsule. This microphone is designed for use as a conference microphone or TV/radio broadcast applications where high-quality sound with minimal visual impact is important. The integrated and swtichable LED light indicates the state of the microphone and is useful for speakers or technical staff.

Microtech Gefell TMV 325 Features:

  • Choose from the M 30 Cardioid Polar Pattern Capsule or the M 31 Supercardioid Polar Pattern Capsule to tailor this microphone to your specific needs (NOTE:  Only one capsule is included with purchase)
  • Switchable LED Indicator Light
  • Microphone preamplifier integrated in to the base
  • 48V Phantom Power required
  • Solid-borne sound attenuation

Microtech Gefell TMV 325 Specifications:

  • Maximum Output Level at Ri = 1k Ohm:  17 dBu
  • Nominal Impedance:  100 Ohm
  • Power Supply:  48 V +/-4 V
  • Current Consumption:  5.2 mA
  • Connector:  XLR3M
  • Tube length:  250 mm
  • Length of TMV 325 with Microphone Capsule:  310 mm
  • Diameter of the Capsule Connector:  21 mm
  • Diameter of the Base:  100 mm
  • M 30 Microphone Capsule:
    • Polar Pattern:  Cardioid
    • Acoustic Operating Principle:  Pressure Gradient Transducer
    • Frequency Range:  40 Hz - 18 kHz
    • Sensitivity:  12 mV/Pa
    • Equivalent Loudness Level (DIN EN 60268-4):  16 dBA
    • Signal-to-Noise Ratio (A-weighted):  78 dB
    • Maximum SPL for THD < 0.5%:  145 dB
    • Dynamic Range:  129 dB
    • Diameter:  21 mm
  • M 31 Microphone Capsule:
    • Polar Pattern:  Supercardioid
    • Acoustic Operating Principle:  Pressure Gradient Transducer
    • Frequency Range:  40 Hz - 18 kHz
    • Sensitivity:  15 mV/Pa
    • Equivalent Loudness Level (DIN EN 60268-4):  15 dBA
    • Signal-to-Noise Ratio (A-weighted):  79 dB
    • Maximum SPL for THD < 0.5%:  146 dB
    • Dynamic Range:  131 dB
    • Diameter:  21 mm
