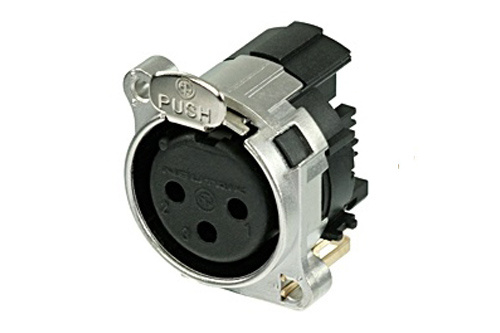

Neutrik NC3FBH2-E
B-Series 3 Pin Female XLR Receptacle

OUR PART #:  NC3FBH2-E

The Neutrik NC3FBH2-E is a 3-pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount...
Learn More
Sale Price: $3.25
List Price: $5.39
Save up to 45% when you order by quantity!
  • Buy 100: $2.94 each.
Write the first review.

Related Products

The Neutrik NC3FBH2-E is a 3-pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount, additional ground contacts

It's the same as the A series receptacle with the exception of a metal mounting flange that features continuous circumferential ground contact to chassis for best EMC practice.

Neutrik NC3FBH2-E Features:

  • Five additional ground contacts
  • Smallest XLR receptacles, highest packing density
  • Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
  • Fork-type female contact
  • Housing flammability UL94V-0

Neutrik NC3FBH2-E Specifications:

  • Electrical:
    • Capacitance between contacts: = 4 pF
    • Contact resistance: = 5 mOhm (inner)
    • Dielectric strength: 1.5 kVdc
    • Insulation resistance: > 10 GOhm (initial)
    • Rated current per contact: 6 A
    • Rated voltage: 50 V
    • Grounding Options: Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
  • Mechanical:
    • Insertion force: = 20 N
    • Withdrawal force: = 20 N
    • Lifetime: > 1000 mating cycles
    • Wiring: Horizontal PCB mount
    • Locking device: Latch lock
    • Mounting direction: rear
    • Chassis shape: B
    • Mounting: B-Screw
  • Material:
    • Contacts: Bronze (CuSn6)
    • Insert: Polyamide (PA 6.6 25 % GR)
    • Locking element: Steel Ck67
    • Ring: Zinc diecast (ZnAl4Cu1)
    • Flange: Metal
  • Environmental:
    • Approvals: UL
    • Flammability: UL 94 V-0
    • Standard compliance: IEC 61076-2-103
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
