Mogami W2697-656-BLACK 656' 2-Conductor 28AWG Raw Microphone Cable in Black

OUR PART #: W2697-656-BLACK MFR #: W2697-00-656

Copied to clipboard

These miniature microphone cables from Mogami feature necessary mechanical strength (tensile strength and long flex life) and flexibility for lavalier microphones and other applications. All balanced configuration. Part No. W2697 cable is constructed with served (spiral) shield. Any specific countermeasure against microphonics ( noise ) for high impedance microphones is not taken for these three lavalier microphone cables. ... ...Read more

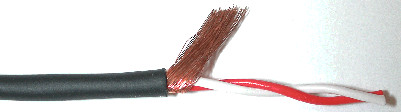

Mogami W2697-656-BLACK 656' 2-Conductor 28AWG Raw Microphone Cable In Black Image 1
Mogami W2697-656-BLACK 656' 2-Conductor 28AWG Raw Microphone Cable In Black
Our Price: $220.68
List Price: $262.40
You save 16%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$7/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

These miniature microphone cables from Mogami feature necessary mechanical strength (tensile strength and long flex life) and flexibility for lavalier microphones and other applications. All balanced configuration. Part No. W2697 cable is constructed with served (spiral) shield.

Specifications:

  • No. of Conductor 2
  • Conductor:
    • Details 16/0.08 A
    • Size(mm²) 0.08mm² (#28 AWG)
  • Insulation:
    • Ov. Dia.(mm) 0.85Ø (0.033")
    • Material PVC
    • Colors Red / White
  • Filler Thread -
  • Shield:
    • Served Shield; Approx. 60/0.08A
  • Jacket:
    • Ov. Dia.(mm) 2.5Ø (0.098")
    • Material Flexible PVC
    • Colors Black
  • Roll Sizes:
    • 50m (164 Ft)
    • 100m (328Ft)
    • 200m (656Ft)
  • Weight: 1.8kg / 200m
  • DC Resistance at 20°C:
  • Inner Cond. 0.23O/m(0.070O/Ft)
  • Shield 0.065O/m(0.020O/Ft)
  • Capacitance at 1kHz, 20°C (Partial C. Value)
    • K0 300pF/m(92pF/Ft)
    • K1 57pF/m(17pF/Ft)
  • Inductance between conductors at 1kHz. 20°C 0.8µH/m(0.24µH/Ft):
  • Electrostatic Noise** 50mV Max.
  • Electromagnetic Noise** 0.15mV Max.
  • Microphonics at 50KO Load** 300mV Max.
  • Voltage Breakdown Must withstand at DC 500V/15sec.
  • Insulation Resistance 100000 MO × m Min. at DC 125V, 20°C
  • Flex Life** 49,000 cycles
  • Tensile Strength 294N
  • Emigration Non-emigrant to ABS
  • Applicable Temperature -20°C? +70°C(-4°F? +158°F)

Note:

Any specific countermeasure against microphonics ( noise ) for high impedance microphones is not taken for these three lavalier microphone cables.
