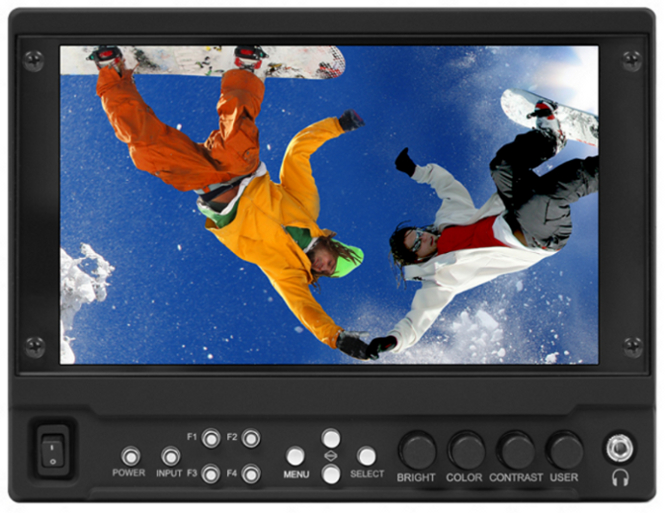

Marshall Electronics V-LCD71MD-O 7" Full Resolution 1920 x 1080 Camera-Top Monitor with Modular Input/Output

Marshall Electronics produces this modular camera-top monitor, the V-LCD71MD. This item is a 7" Full Resolution 1920 x 1080 Camera-Top Monitor with Modular Input/Output capability making it an excellent option for use in both studio and field applications.

This 7" monitor offers a high brightness 700-nit, full resolution 1920 x 1080 LCD panel. Modules can be added at anytime in the field by you the user. Modular design allows you the user to determine what I/O combinations you want. Building on the features that made the MD series famous, these models add even more user friendly features.

Backlit panel and standard features including a wide variety of formats and markers, 4 user-config Icon driven Menu System, Waveform Display with dual Audio Bars, Front Panel Headphone output, Variable Pixel-to-Pixel function plus Marshall's industry leading PEAKING Filter now in four colors for easier focus assist make these monitors a must have appliance for serious photographers and videographers producers and directors alike. The monitor offers durable front panel function buttons, RGB Check Field / Field Detect, RGB gain and bias control, polycarbonate screen protection. New features include multiple DSLR presets, six User Presets, Adjustable IRE Clip Guide, and Backlight control just to name a few.

This new MD series monitor comes equipped with an HDCP compliant HDMI input with pass-through, a selection of 10 available battery adapters and a choice of one Input or Output module.

Marshall Electronics V-LCD71MD-O Features:

• FULL RESOLUTION 1920 x 1080 LCD panel
• High Brightness 700-nit with Adjustable Backlight
• Available in three Configurations:
  • V-LCD71MD (No Module)
  • V-LCD71MD-O** (3G Output Module with two 3G-HDSDI outputs converted from the HDMI input. HDCP Compliant)
  • V-LCD71MD-3G (3G Input Module with loop-through)
• DSLR Ratio Adjustment with 4 DSLR Ratio Presets
• On Screen Waveform / Stereo Audio Bar Display
• Manual Gamma Adjustment
• Adjustable IRE Clip Guide (Zebra Filter)
• 1/4"-20 mounts on all sides
• Stereo Headphone Output (select a L+R Pair from the available channels)
• 6 Monitor Configuration User Presets
• Custom Screen Markers (choice of four colors and variable lines widths)
• HDMI Pass-Through (HDCP Compliant)
• HDMI Auto Color Space and Ratio detect
• New Peaking Filter (Choice of four color highlights and variable sensitivity)
• False Color Filter
• Four User Assigned Function Buttons with 32 possible uses
• Pixel-to-Pixel Panning (Custom Pixel-to-Pixel Mode)
• 15:9, 16:9, 4:3, Pixel-to-Pixel modes
• Input Crop with automatic scaling
• RGB Check Field with Monochrome
• Scratch Resistant Protective Screen
• Variety of Optional User-Replaceable Battery Adapters available
• Icon assisted Menu System

Marshall Electronics V-LCD71MD-O Specifications:

• Please refer to the attached documentation for specification information on this item.

Note:

The V-LCD71MD-O** version includes the base unit with a preinstalled MDO-3G module providing a 3G-SDI output converted from the HDMI input. The MD-O module does not suport 480p.

Product shown in image is for illustrative purposes only. Actual product may vary in appearance. Battery adapter shown is sold separately.
