Marshall Electronics V-LCD71MD
7" Full Resolution 1920 x 1080 Camera-Top Monitor with Modular Input/Output

OUR PART #:  V-LCD71MD

Marshall Electronics produces this modular camera-top monitor, the V-LCD71MD.
Learn More
Our Price: $808.00
List Price: $1,010.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics V-LCD71MD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Marshall Electronics produces this modular camera-top monitor, the V-LCD71MD. This item is a 7" Full Resolution 1920 x 1080 Camera-Top Monitor with Modular Input/Output capability making it an excellent option for use in both studio and field applications.

This 7" monitor offers a high brightness 700-nit, full resolution 1920 x 1080 LCD panel. Modules can be added at anytime in the field by you the user. Modular design allows you the user to determine what I/O combinations you want. Building on the features that made the MD series famous, these models add even more user friendly features.

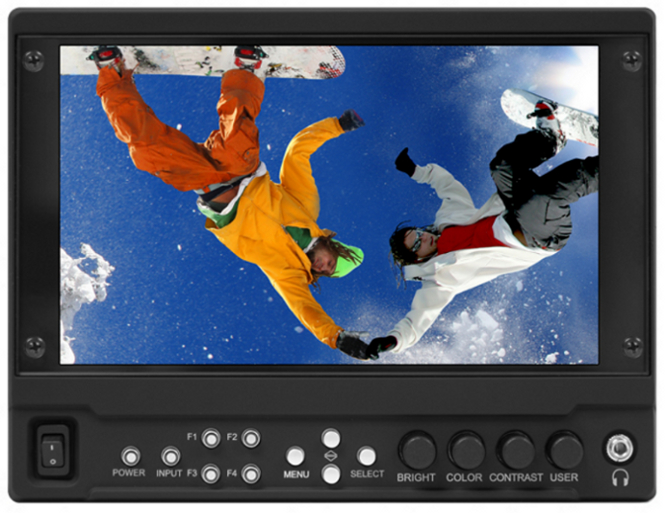

NOTE: Product shown in image is for illustrative purposes only. Actual product may vary in appearance. Battery adapter shown is sold separately.

Backlit panel and standard features including a wide variety of formats and markers, 4 user-config Icon driven Menu System, Waveform Display with dual Audio Bars, Front Panel Headphone output, Variable Pixel-to-Pixel function plus Marshall's industry leading PEAKING Filter now in four colors for easier focus assist make these monitors a must have appliance for serious photographers and videographers producers and directors alike. The monitor offers durable front panel function buttons, RGB Check Field / Field Detect, RGB gain and bias control, polycarbonate screen protection. New features include multiple DSLR presets, six User Presets, Adjustable IRE Clip Guide, and Backlight control just to name a few.

This new MD series monitor comes equipped with an HDCP compliant HDMI input with pass-through, a selection of 10 available battery adapters and a choice of one Input or Output module.

Marshall Electronics V-LCD71MD Features:

  • FULL RESOLUTION 1920 x 1080 LCD panel
  • High Brightness 700-nit with Adjustable Backlight
  • Available in three Configurations:
    • V-LCD71MD (No Module)
    • V-LCD71MD-O** (3G Output Module with two 3G-HDSDI outputs converted from the HDMI input. HDCP Compliant)
    • V-LCD71MD-3G (3G Input Module with loop-through)
  • DSLR Ratio Adjustment with 4 DSLR Ratio Presets
  • On Screen Waveform / Stereo Audio Bar Display
  • Manual Gamma Adjustment
  • Adjustable IRE Clip Guide (Zebra Filter)
  • 1/4"-20 mounts on all sides
  • Stereo Headphone Output (select a L+R Pair from theavailable channels)
  • 6 Monitor Configuration User Presets
  • Custom Screen Markers (choice of four colors andvariable lines widths)
  • HDMI Pass-Through (HDCP Compliant)
  • HDMI Auto Color Space and Ratio detect
  • New Peaking Filter (Choice of four color highlightsand variable sensitivity)
  • False Color Filter
  • Four User Assigned Function Buttons with 32 possibleuses
  • Pixel-to-Pixel Panning (Custom Pixel-to-Pixel Mode)
  • 15:9, 16:9, 4:3, Pixel-to-Pixel modes
  • Input Crop with automatic scaling
  • RGB Check Field with Monochrome
  • Scratch Resistant Protective Screen
  • Variety of Optional User-Replaceable Battery Adaptersavailable
  • Icon assisted Menu System

Marshall Electronics V-LCD71MD Specifications:

  • Please refer to the attached documentation for specification informationon this item.
