Marshall Electronics V-MD241
24" LCD Monitor

OUR PART #:  V-MD241

The V-MD241 from Marshall Electronics is a 24" LCD monitor that offers native 1920 x 1080 resolution, is rack mountable but also has a Desktop / VESA Mount Monitor option.
Learn More
Our Price: $1,801.25
List Price: $2,120.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics V-MD241
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The V-MD241 from Marshall Electronics is a 24" LCD monitor that offers native 1920 x 1080 resolution, is rack mountable but also has a Desktop / VESA Mount Monitor option. This monitor comes with with Modular Inputs and Network Control capabilities. Additional highlights include the ability to swap and interchangeable video modules and offers two available input slots.

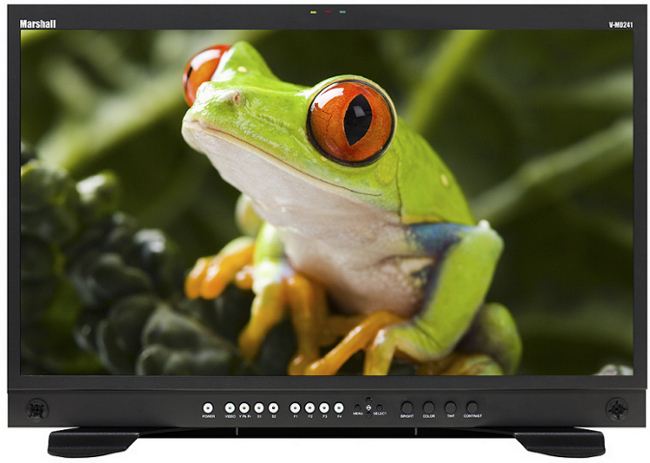

NOTE: Product shown in image is for illustrative purposes only. Actual product may vary in appearance. Images shown with optional Desktop Stand.

Marshall Electronics V-MD241 Features:

  • Network Control:
    • Each V-MD series rack includes a LAN port with a built-in web server. This allows the operator to visually monitor and control any or all V-MD series units that are connected to the LAN. Any function that is addressable from the front panel of a V-MD series monitor can be accessed via any Firefox┬« web browser -- even on a wireless device.** The rear panel LAN 100 port connects the unit to the LAN. Once connected, the user simply locates the IP address of any one of the units connected to the LAN. This is accomplished by going to the MAIN MENU of any of the connected units and selecting the NETWORK CONFIGURATION submenu. This will then display the IP address of that unit. V-MD units are shipped with the DHCP mode enabled.

NOTE: ** A wireless hub must be part of the LAN to have this function.

  • False Color Filter:
    • The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment. To best utilize this feature, you must understand the color chart and have a basic understanding of camera exposure. Normally, when shooting subjects like people, it is common practice to set exposure of faces to the equivalent of approximately 56 IRE. The False Color filter will show this area as the color PINK on the monitor. Therefore, as you increase exposure (open the IRIS), your subject will change color as indicated on the chart: PINK, then GREY, then a few shades of YELLOW. Overexposed subjects (above 101 IRE) on the monitor will be shown as RED. In addition, underexposed subjects will show as DEEP-BLUE to DARK-BLUE, with clipped-blacks indicated with a FUCHSIA-like color. Lastly, the color GREEN is used to indicate elements of the image that are approximately 45 IRE. This represents a "neutral" or "mid-level" exposure commonly used for objects (not people).
  • IMD and Tally:
    • Use the "Text Enable" function to turn the MD Text feature ON. This will cause the "Text String" to appear on the lower portion of the screen. This provides the user with a 16 character on-screen text string. The color, background (opacity), and alignment of text can also be managed by the operator. This same menu allows control of Tally Source. Tally lights (both LED and on-screen) can be enabled/disabled and also set to match "Text String" color.
  • Optional Input Modules (Type A modules):
    • MD-3GE - 3G/HD/SDI Input Module with Loop-Through
    • MD-HDSDIx2 - Two-channel HD-SDI Input Module with switched output
    • MD-HDIx2 - Two-channel HDMI Input Module
    • MD-DVII - DVI-I Input Module

NOTE: * Input modules are optional and available at additional cost. More input modules to be offered in the future.

Marshall Electronics V-MD241 Specifications:

  • Please consult the attached documentation regarding the specifications onthis unit.
