Martin Pro RUSH MH 5 Profile 75W LED Moving Head Spot Fixture

OUR PART #: RUSH-MH5-PROFILE MFR #: 90280040

Copied to clipboard

The Martin Professional RUSH MH 5™ Profile compact and bright LED profile moving head with efficient optics punches out a variety of effects and colors. ...Read more

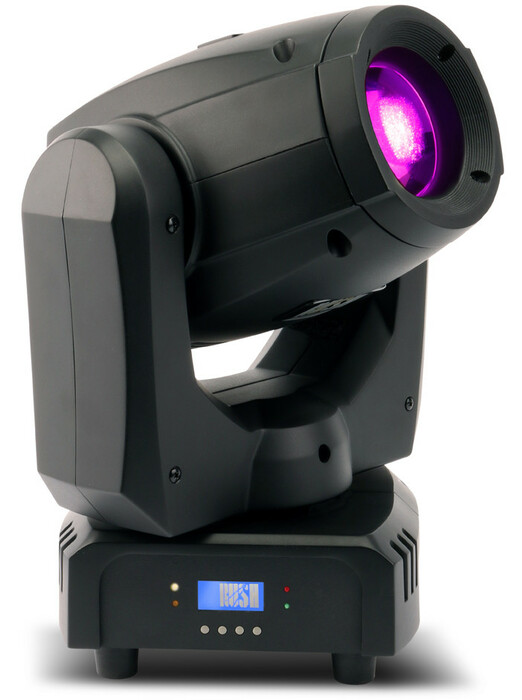

Martin Pro RUSH MH 5 Profile 75W LED Moving Head Spot Fixture Image 1
Martin Pro RUSH MH 5 Profile 75W LED Moving Head Spot Fixture
Our Price: $1,918.08
Call for Special Sale Price!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$54/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Martin Professional RUSH MH 5™ Profile compact and bright LED profile moving head with efficient optics punches out a variety of effects and colors. With two color wheels, two gobo wheels and rotating prism, the MH 5 Profile offers full effect in a super compact housing, making it perfect for DJs, bands, clubs, bars, cruise ships and installations where small footprint and low weight is critical.

Martin Professional RUSH MH 5™ Profile Features:

  • Compact 75 W LED profile moving head
  • Super bright - efficient optics
  • Rotating gobo wheel
  • Fixed gobo wheel
  • 2 x color wheels
  • Electronic dimming and strobe
  • 3-facet prism
  • 3 & 5 pin XLR

Martin Professional RUSH MH 5™ Profile Specifications:

  • Physical
    • Length: 11.4 in. (290 mm)
    • Width: 7.4 in. (187 mm)
    • Height: 16.6 in. (422 mm)
    • Weight: 19.2 lbs. (8.7 kg)
  • Dynamic Effects
    • Color wheel 1: 8 colors plus open, rotation with variable direction and speed
    • Color wheel 2: 8 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed
    • Rotating gobo wheel: 6 gobos plus open, wheel rotation, gobo rotation, indexing and shake
    • Static gobo wheel: 7 gobos plus open, wheel rotation and shake
    • Electronic 'shutter' effect: Strobe effect, pulse effects, instant open and blackout
    • Prism: Indexing and rotation with variable direction and speed
    • Focus: Motorized
    • Electronic dimming: 0 - 100%, four dimming curve options
    • Pan: 540°
    • Tilt: 270°
    • Pan and tilt speed: Adjustable via onboard control panel and DMX
  • Control and Programming
    • Control options: DMX, stand-alone
    • DMX channels: 16
    • Stand-alone trigger options: Music trig, auto trig
    • Stand-alone sequences: 4 pre-programmed shows
    • Music trig sensitivity: Adjustable
    • Setting and addressing: Control panel with backlit LCD display
    • Protocol: USITT DMX512/1990
  • Optics
    • Light source: 75 W LED engine
    • Minimum LED lifetime: 50 000 hours (to >70% luminous output)
  • Construction
    • Color: Black
    • Housing: High-impact flame-retardant thermoplastic
    • Protection rating: IP20
  • Installation
    • Mounting: One quarter-turn bracket for rigging clamp
    • Location: Indoor use only, must be fastened to surface or structure
    • Orientation: Any
  • Connections
    • AC power in/thru: Neutrik PowerCon
    • DMX data in/out: 3-pin and 5-pin locking XLR
  • Electrical
    • AC power: 100-240 V nominal, 50/60 Hz
    • Typical total power consumption: 165 W
    • Power consumption figures are typical, not maximum. Allow for +/-10% variation.
  • Typical Power and Current
    • 100 V, 60 Hz: 1.7 A, 165 W
    • 230 V, 50 Hz: 0.8 A, 157 W
  • Thermal
    • Cooling: Forced air (temperature-regulated, low noise)
    • Maximum ambient temperature (Ta max.): 40° C (104° F)
    • Minimum ambient temperature (Ta min.): 0° C (32° F)
    • Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 565 BTU/hr.
  • Approvals
    • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
    • EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
    • US safety (pending): UL 1573
    • US EMC: FCC Part 15 Class A
    • Canadian safety (pending): CSA C22.2 No. 166
    • Canadian EMC: ICES-003 Class A
    • Australia/NZ: C-TICK N4241
  • Included Items
    • Power cable, 1.5 m (4.9 ft.), without mains plug
  • Photometric Data
    • Efficacy: 12 lumens per watt
    • Cut-off angle: 16°
    • Total output: 1800 lm
