Martin Professional MAC Viper Quadray
Moving Head Spotlight Attachment

OUR PART #:  MAC-VIPER-QUADRAY

The Martin Professional MAC Viper Quadray is a never-before-seen, multiple-beam effect that adds a whole new dimension to the lighting designer toolbox.
Learn More
Our Price: $1,340.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Martin Professional MAC Viper Quadray
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Martin Professional MAC Viper Quadray is a never-before-seen, multiple-beam effect that adds a whole new dimension to the lighting designer toolbox. Available as an easy-to-install front lens replacement kit for any standard MAC Viper AirFX, the Quadray allows for projection of 1, 2, 3 or 4 individually-controllable rays of light for all-new static or dynamic possibilities in mid-air effects. It includes an efficient effects engine that allows designers to create a whole new variety of looks that would otherwise be hard, or even impossible, to program via a lighting console.

The MAC Viper Quadray has 1 - 4 individually controllable rotating beams, and independently variable 0 - 100% CMY color mixing.  Control and Programming comes from DMX, following the USITT DMX512-A standard. It's ANSI/ESTA E1.20 compliant, has an opto-isolated RS-485 receiver, with firmware update via USB memory device or USB/DMX hardware interface over DMX link. It comes in black, is made of UV-resistant fiber-reinforced composite material, features a glass, cold light reflector, and protection rating of IP20.  It meets major US, EU, Canadian, and Australian safety and technical approvals.

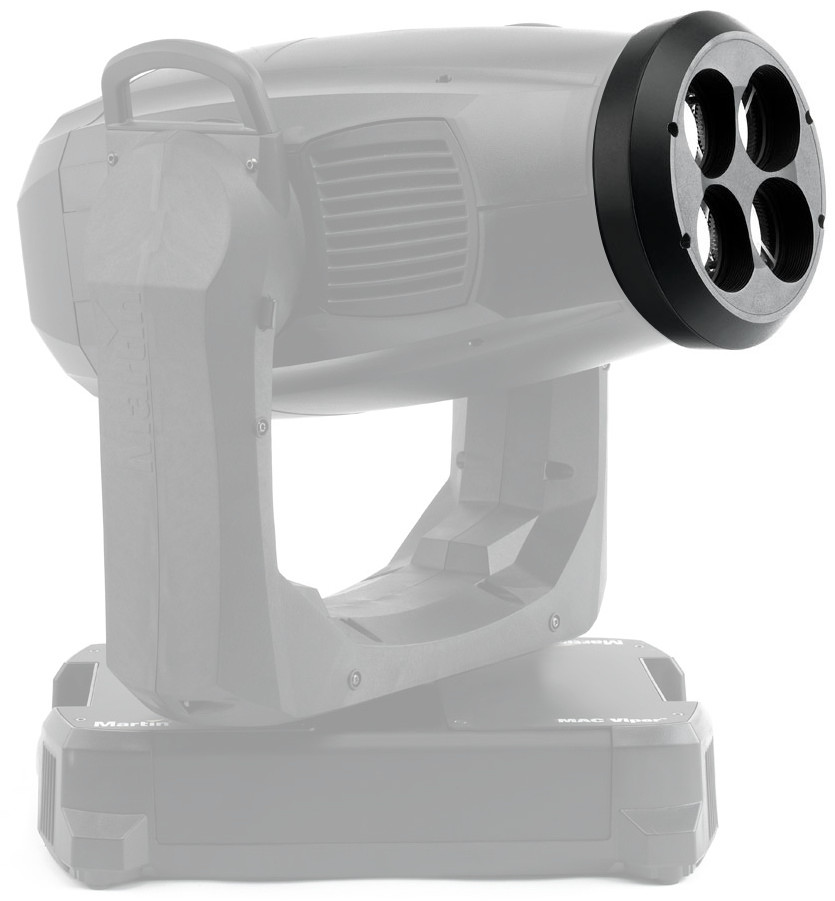

NOTE:  The image shown is for illustrative purposes.  The MAC Viper Quadray is an attachment only.  Lighting fixture shown is NOT INCLUDED and is SOLD SEPARATELY.  Contact your sales representative for more information.

Martin Professional MAC Viper Quadray Features:

  • Unique multi-beam effect
  • 1, 2, 3 or 4 individually-controllable rays of light
  • Front lens replacement kit - easy installation on any MAC Viper AirFX
  • Easy conversion back to a standard MAC Viper AirFX
  • Eliminates need to invest in a new fixture

Martin Professional MAC Viper Quadray Photometric Data:

  • Standard (Quadray), Zoom at Minimum:
    • Efficiency: 24%
    • Efficacy: 17.3 lumens per watt
    • Cut-off angle: 12.5┬░
    • Total output: 20000 lm
