Martin Professional MAC Viper Wash
Moving Head Washlight

OUR PART #:  MAC-VIPER-WASH

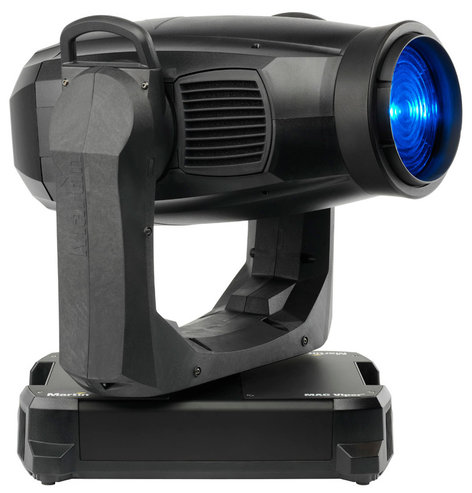

The Martin Professional MAC Viper Washâ„¢ is a full-range wash luminaire capable of performing at the high level you would expect from a professional wash light.
Learn More

Call for price! Not available online.
List Price: $10,206.00

Similar Products

The Martin Professional MAC Viper Washâ„¢ is a full-range wash luminaire capable of performing at the high level you would expect from a professional wash light. It features an outstanding quality of light with unlimited color choices and excellent color stability across the entire beam. It maintains near full efficiency throughout the entire zoom range with no visible beam jump when zooming from tight to wide. The MAC Viper Wash has adopted the compact form, impressive speed, superior light quality and beautiful colors that the MAC Viper Profile is renowned for and uses the same 1000-watt lamp.

Martin Professional MAC Viper Washâ„¢ Features:

  • 33000 lumens – excellent light quality with a flat anduniform field
  • 1:5 zoom - 13.5 to 59° continuous and fast zoom
  • CMY – Vibrant color mixing with a superior palette ofcolors including true reds, rich ambers, primary green and deep blues
  • Linear CTO – Daylight to tungsten CCT control andexpansion of the CMY palette
  • Dimmer and shutter - Combined dimmer/shutter systemwith intensity effects, instant blackout/open and smooth fades
  • Diverse strobe effects

Martin Professional MAC Viper Washâ„¢ Specifications:

  • Physical
    • Length (Head): 566 mm (22.3 in.)
    • Width: 472 mm (18.6 in.)
    • Width (Base): 335 mm (13.2 in.)
    • Height (head straight up): 731 mm (28.8 in.)
    • Height (maximum): 748 mm (29.4 in.)
    • Weight: 33 kg (72.8 lbs.)
  • Lamp
    • Approved lamp: Osram HTI 1000/PS Lok-it
    • Type: 1000 W short-arc discharge
    • Color temperature: 6000 K
    • CRI (Color rendering index): >85
    • Average lifetime: 750 hours
    • Socket: PGJX36
    • Ballast: Electronic
  • Dynamic Effects
    • Color mixing: CMY, independently variable 0 - 100%
    • Color temperature control: CTO, variable 6000 - 3200 K
    • Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout
    • Dimming options: Choice of four dimming curves
    • Focus: Range varies with zoom angle, from 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity (approx.)
    • Zoom: 13.5° - 59°
    • Pan: 540°
    • Tilt: 268°
    • Position correction system: Absolute position monitoring
  • Control and Programming
    • DMX channels: TBA
    • Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
    • 16-bit control: TBA
    • DMX compliance: USITT DMX512-A
    • RDM compliance: ANSI/ESTA E1.20
    • Receiver: Opto-isolated RS-485
    • Firmware update: USB memory device or USB/DMX hardware interface over DMX link
  • Service Utilities
    • Fixture identification: User-settable fixture ID number
  • Construction
    • Color(s): Black
    • Housing: UV-resistant fiber-reinforced composite
    • Reflector: Glass, cold light
    • Protection rating: IP20
  • Installation
    • Mounting points: Eight quarter-turn locking points
    • Orientation: Any
    • Minimum distance to illuminated surfaces: 3.4 m (11.2 ft.)
    • Minimum distance to combustible materials: 0.3 m (1.0 ft.)
  • Connections
    • AC power input: Neutrik PowerCon
    • DMX and RDM data in/out: 5-pin locking XLR
    • USB memory devices: USB host socket
  • Electrical
    • AC power: 120-240 V nominal, 50/60 Hz
    • Power supply unit: Auto-ranging electronic switch-mode
    • Typical half-cycle RMS inrush current: 16.2 A
  • Typical Power and Current
    • 120 V, 60 Hz: 1225 W, 10.3 A, PF 0.999
    • 208 V, 60 Hz: 1190 W, 5.8 A, PF 0.996
    • 230 V, 50 Hz: 1186 W, 5.2 A, PF 0.994
    • 240 V, 50 Hz: 1194 W, 5.0 A, PF 0.993
      Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
      PF = power factor
  • Thermal
    • Cooling: Filtered forced air (temperature-regulated, low noise)
    • Maximum ambient temperature (Ta max.): 40° C (104° F)
    • Minimum ambient temperature (Ta min.): 5° C (41° F)
    • Maximum surface temperature, steady state, Ta=40° C: 150° C (302° F)
    • Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz): 4180 BTU/hr
  • Approvals
    • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471
    • EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61547
    • US safety (pending): UL 1573
    • US EMC: FCC Part 15 Class A
    • Canadian safety (pending): CSA E598-2-17 (CSA E60598-1)
    • Canadian EMC: ICES-003 Class A
    • Australia/NZ: C-TICK N4241
  • Included Items
    • Lamp (installed), P/N 97010346
    • Two Omega clamp attachment brackets with 1/4-turn fasteners, P/N 91602001
    • Safety and installation manual, P/N 35000258

Photometric Data

  • Standard , Zoom at Minimum
    • Efficiency: 39%
    • Efficacy: 28.3 lumens per watt
    • One-tenth peak angle: 13.5°
    • Total output: 32800 lm
  • Standard , Zoom at Maximum
    • Efficiency: 38%
    • Efficacy: 28 lumens per watt
    • One-tenth peak angle: 59°
    • Total output: 32500 lm
