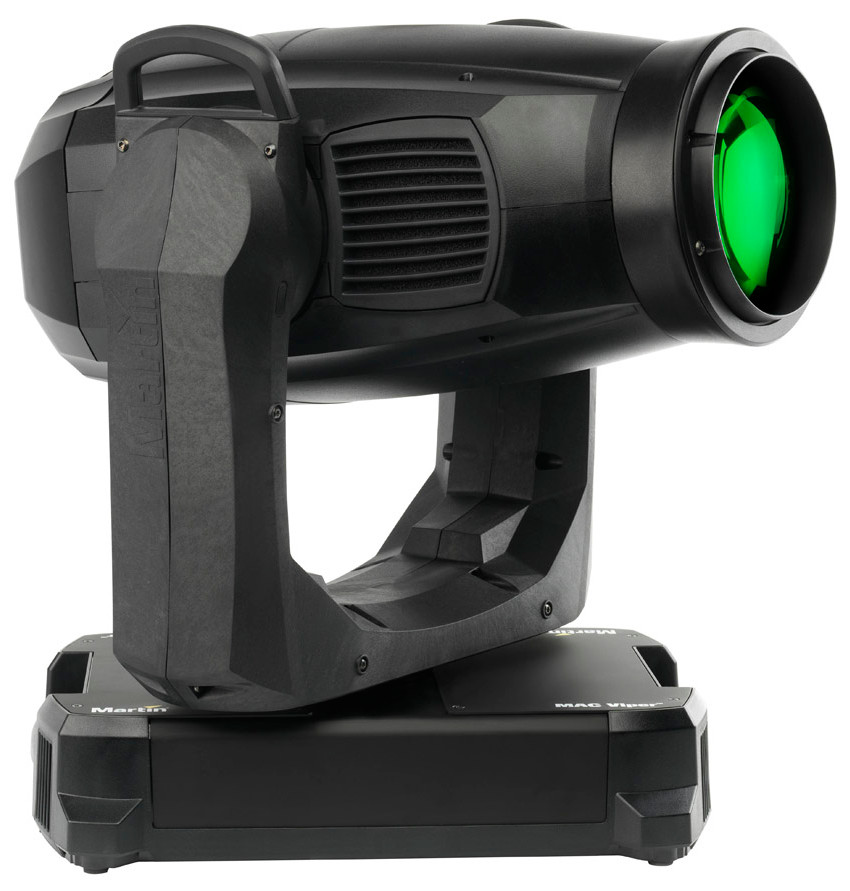

Martin Professional MAC Viper AirFX
Moving Head Beamlight

OUR PART #:  MAC-VIPER-AIRFX

Both flexible and efficient, Martin Professional's MAC ViperAirFX™ is a new concept that combines hard-edge, mid-air effects and a beautiful wash field in one luminaire.
Learn More

Call for price! Not available online.
List Price: $12,987.00

Similar Products

Both flexible and efficient, Martin Professional's MAC ViperAirFX™ is a new concept that combines hard-edge, mid-air effects and a beautiful wash field in one luminaire. Featuring a great selection of all-new gobo designs, hard-edge effects remain stunning across the fixture’s entire 11 - 59° zoom range. Capable of snapping or fading into a wash light at any point, a unique and highly efficient optical system means the MAC Viper AirFX can offer the features of a profile at the output of a wash light.

The Viper AirFX has adopted the compact form, impressive speed, superior light quality and beautiful colors that the MAC Viper Profile is renowned for. It is also based on the same 1000-watt lamp for an output that convincingly exceeds any larger, heavier and more power-demanding 1500-watt profile fixture.

Martin Professional MAC ViperAirFX™ Features:

  • 34500 lumens – excellent light quality
  • 1:5 zoom - 11 to 59° continuous zoom with auto-linked focus
  • 160 mm precision PC front lens for fat beam looks
  • Frost - snap or fade-in for beautiful wash effect
  • Rotating gobo wheel with 5 replaceable designs
  • Static gobo wheel with 7 designs
  • CMY – Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues
  • 7-slot color wheel – fixed colors for added colorchoice
  • Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
  • Dimmer and shutter - Combined dimmer/shutter system with intensity effects, instant blackout/open and smooth fades
  • Iris – Fast and tight iris with adjustable dynamic effects
  • Diverse strobe effects

Martin Professional MAC ViperAirFX™ Specifications:

  • Physical
    • Length (Head): 22.3" (566 mm)
    • Width: 18.6" (473 mm)
    • Width (Base): 13.2" (335 mm)
    • Height (head straight up): 28.8" (732 mm)
    • Height (maximum): 29.5" (749 mm)
    • Weight: 78.7 lbs. (35.7 kg)
  • Lamp
    • Approved lamp: Osram HTI 1000/PS Lok-it
    • Type: 1000 W short-arc discharge
    • Color temperature: 6000 K
    • CRI (Color rendering index): >85
    • Average lifetime: 750 hours
    • Socket: PGJX36
    • Ballast: Electronic
  • Dynamic Effects
    • Color mixing: CMY, independently variable 0 - 100%
    • Color temperature control: CTO, variable 6000 - 3200 K
    • Color wheel: 7 interchangeable dichroic filters + open, indexing, continuous rotation, random color
    • Rotating aerial effects: 5 interchangeable rotating aerial effect gobos, wheel and gobo indexing, continuous rotation and shake
    • Static gobo wheel: Interchangeable wheel with 7 integral gobos, wheel indexing and continuous rotation, random gobo
    • Wash effect: Fade in/out
    • Iris: 0 - 100%, pulse effects
    • Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout
    • Dimming options: Choice of four dimming curves
    • Zoom: Motorized
    • Pan: 540°
    • Tilt: 268°
    • Position correction system: Absolute position monitoring
  • Control and Programming
    • DMX channels: 20/28
    • Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
    • 16-bit control: Dimmer, aerial effect indexing, focus, zoom, pan and tilt
    • DMX compliance: USITT DMX512-A
    • RDM compliance: ANSI/ESTA E1.20
    • Receiver: Opto-isolated RS-485
    • Firmware update: USB memory device or USB/DMX hardware interface over DMX link
  • Service Utilities
    • Fixture identification: User-settable fixture ID number
  • Construction
    • Color(s): Black
    • Housing: UV-resistant fiber-reinforced composite
    • Reflector: Glass, cold light
    • Protection rating: IP20
  • Gobos
    • Size: E27 (Size E, max. image diameter 27 mm)
    • Approved material: Borosilicate 3.3 or better with dichroic or heavy matted aluminum coating (metal gobos not approved)
    • Outside diameter: 37.5 mm (1.5") +0/- 0.2 mm (0.01")
    • Maximum image diameter: 27 mm (1.1")
    • Maximum thickness: 1.1 mm (0.04") +/- 0.1 mm (0.004")
  • Installation
    • Mounting points: Eight quarter-turn locking points
    • Orientation: Any
    • Minimum distance to illuminated surfaces: 3.4 m (11.2 ft.)
    • Minimum distance to combustible materials: 0.3 m (1.0 ft.)
  • Connections
    • AC power input: Neutrik PowerCon
    • DMX and RDM data in/out: 5-pin locking XLR
    • USB memory devices: USB host socket
  • Electrical
    • AC power: 120-240 V nominal, 50/60 Hz
    • Power supply unit: Auto-ranging electronic switch-mode
    • Typical half-cycle RMS inrush current: 16.2 A
  • Typical Power and Current
    • 120 V, 60 Hz: 1225 W, 10.3 A, PF 0.999
    • 208 V, 60 Hz: 1190 W, 5.8 A, PF 0.996
    • 230 V, 50 Hz: 1186 W, 5.2 A, PF 0.994
    • 240 V, 50 Hz: 1194 W, 5.0 A, PF 0.993
      Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
      PF = power factor
  • Thermal
    • Cooling: Filtered forced air (temperature-regulated, low noise)
    • Maximum ambient temperature (Ta max.): 40° C (104° F)
    • Minimum ambient temperature (Ta min.): 5° C (41° F)
    • Maximum surface temperature, steady state, Ta=40° C: 150° C (302° F)
    • Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz): 4180 BTU/hr
  • Approvals
    • EU safety: EN 60598-2-17 (EN 60598-1), EN 62471
    • EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61547
    • US safety: UL 1573
    • US EMC: FCC Part 15 Class A
    • Canadian safety: CSA E598-2-17 (CSA E60598-1)
    • Canadian EMC: ICES-003 Class A
    • Australia/NZ: C-TICK N4241
  • Included Items
    • Lamp (installed), P/N 97010346
    • Two Omega clamp attachment brackets with 1/4-turn fasteners, P/N 91602001
    • Safety and installation manual

Photometric Data

  • Standard , Zoom at Minimum
    • Efficiency: 41%
    • Efficacy: 29.9 lumens per watt
    • Cut-off angle: 11°
    • Total output: 34600 lm
  • Standard , Zoom at Maximum
    • Efficiency: 41%
    • Efficacy: 30.1 lumens per watt
    • Cut-off angle: 58°
    • Total output: 34800 lm
