Vaddio WideSHOT WallVIEW Mini
Wide Angle HD Point of View Camera System with a 82.2° Horizontal Field of View and Quick-Connect USB Mini Interface

OUR PART #  WIDESHOTWALLVIEWMINI

Our Price: $1,795.00
List Price: $1,995.00
You save 10%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Vaddio WideSHOT WallVIEW Mini is the combination of the WideSHOT HD camera and the USB Mini Quick Connect™ interface, along with a Thin Profile Wall Mount, IR SHOT Commander Remote, and the accessories needed to get started using this system.

The Vaddio WideSHOT HD camera wide angle, manual lens camera produces astounding results for small and huddle room applications where the distance between the camera and the subject is limited.  The WideSHOT camera is a low cost, high value, manual pan/tilt/zoom camera with a super wide angle lens that can be set to provide the best image possible in a small environment. To that end, the WideSHOT camera sports a lens with 82.2° wide horizontal field of view with a user adjustable iris, focus and varifocal zoom of approximately 3X (3.3mm to 10.5mm). With the 3X optical zoom capability, even the “big” small rooms can be covered too.

The WideSHOT HD was designed from the ground up and is equipped with the Vaddio EZCamera™ Cat-5 wiring interface standard for video, power and control. Using HSDS™ (differential) video outputs over Cat-5 cable, the WideSHOT supplies a wide range of video resolutions that are selectable from the rear panel; from 480p/59.94-YPbPr up to and including 1080p/60. The HSDS processing allows delivery of the WideSHOT HD video signals up to 150’ (45.72m).

Choose between three (3) IR frequencies for the Vaddio IR SHOT Commander to allow multiple cameras to be locally IR controlled with a single remote control.

The USB Mini is the latest product in the popular Vaddio Quick-Connect product line. Designed to address the demands of customers and integrators who required simple and effective USB 2.0, 720p/30 streaming and capture capabilities without the need for local analog or digital video outputs. The USB Mini uses UVC (Universal Video Class) drivers, so whatever resolution the UC application needs, the USB Mini will auto negotiate.

The USB Mini also offers easy mounting either on-wall or under-table with an integrated mounting tab similar to the style used on Vaddio EZCamera™ Interface Module or EZIM™. This provides the end user or integrator many possibilities for mounting in easily accessible locations, as requirements dictate.

WideSHOT paired with the Quick-Connect USB Mini Interface in this package represents a superior value for professional installations at a very low price.

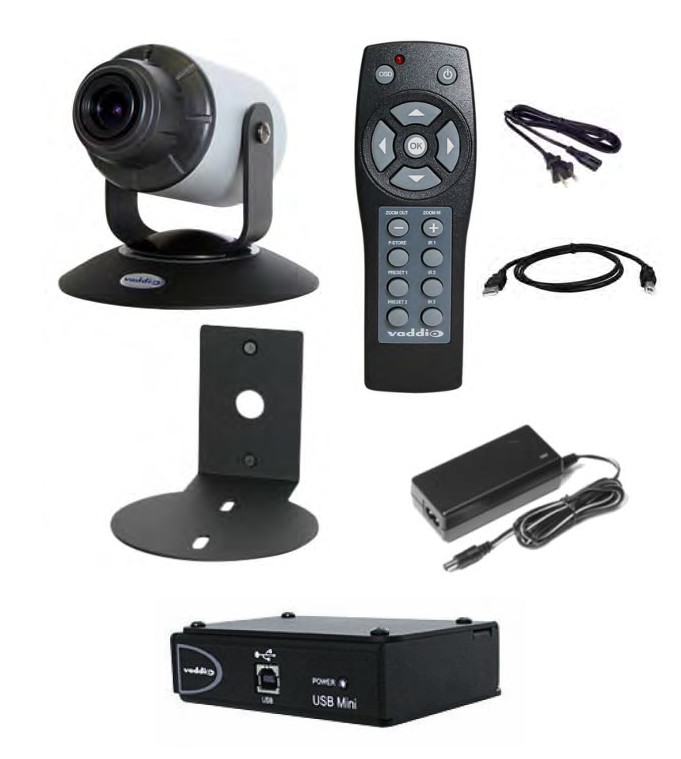

What's Included:

  • One (1) WideSHOT HD Wide-Angle Camera (998-6918-000)
  • One (1) Vaddio IR SHOT Commander Remote with One-sheet Guide
  • One (1) Quick-Connect USB Mini Interface (998-1105-039)
  • One (1) 6’ (1.83m) USB 2.0 Type-A Male to Type-B Male Cable (Black)
  • One (1) 24 VDC, 2.08 Amp, Power Supply with Power Cord for North America
  • One (1) Thin Profile Wall Mount with Mounting Hardware
  • Documentation (Manual 342-0710)

Vaddio WideSHOT WallVIEW Mini Key Features:

  • 1.3 Megapixel 1/3-Type Progressive Scan Imaging Sensor
  • 0.3 LUX Rating for low-light environments
  • Wide angle of view: greater than 82° Horizontal Viewing Angle (16:9)
  • Includes USB Mini Quick-Connect
  • Thin profile wall mount bracket and mounting hardware included

Vaddio WideSHOT WallVIEW Mini Specifications:

WideSHOT Camera

  • Image Sensor:  1/3-Type Progressive Scan CMOS Sensor with 1.3 Megapixels (720p native)
  • Video Output Resolutions:
    • HD: 1080/59.94/50/30/25, 1080i/59.94/50, 720p/59.94/50
    • SD: 480p/59.94 & 576p/50
  • Lens/ Focal Length:  Approx. 3X Optical Zoom, 3.3mm to 10.5mm manual focus
  • Horizontal Viewing Angle:  82.2° Wide End to 3.2° Tele End, 27.4° Tele End, 16:9 Format
  • Video S/N Ratio:  >50 dB
  • Minimum Illumination:  0.2 LUX (1/30 Shutter Speed) Color
  • Serial Control Protocol:  RS-232 Serial Control
  • Manual Pan/Tilt Range:
    • Pan: Limited to service loop of cabling, yoke and base are mechanical only
    • Tilt: ± 30°
    • Invertible for Ceiling Mount
  • Preset Positions:  Manual pan, tilt zoom only
  • Tally Light:  Red LED available through RS-232 Control
  • Camera Connectors:
    • Two (2) RJ-45 Jacks:
    • EZ-Power VIDEO RJ-45 Jack for use with Quick-Connect - Supplies power to the camera and returns differential HD video from the camera
    • S-232 RJ-45 Jack (RS-232 Communication and IR Out (with Quick-Connect -SR Interfaces)
  • HD Video Select:  16-Position Rotary Switch: Used to set HD Video Resolution Output
  • Camera Settings:  6-Position Dip Switch: For IR Freq., Image Flip & Test Bars
  • 16-Position Rotary Switch for Output Resolution Settings
  • Thin Profile Wall Mount:  535-2000-237 (Provided with WideSHOT WallVIEW Systems), Black powder coating, Sized to fit on 1-gang wall box or with supplied drywall fasteners
  • User Controls:  IR SHOT Commander with OSD for set-up and RS-232
  • Materials & Weight:  Aluminum & Steel, Weight = 2.75643 lbs. (1.68kg)
  • Dimensions:
    • Tube: 3.5” ( 88.9mm) Diameter x 5.125” (130.175mm) Long (including front bezel and focus knob)
    • Base: 5.5” (139.7mm) Diameter
    • Overall Height: 5.5” (139.7mm) Tall

USB Mini Interface

  • Video Outputs:  USB 2.0 (MJPEG): Resolution up to 720p/30 (Limits of USB 2.0 with MJPEG Compression)
  • USB Interface:  Connector: Type-B, USB 2.0 Compliant, Standard UVC (Universal Video Class) Drivers
  • Network Interface:  Ethernet over USB 2.0 only
  • Streaming Protocols:  USB 2.0, MJPEG (UVC standard drivers)
  • Connectors:
    • Power: 5.5mm OD x 2.5mm ID Coaxial Connector
    • RS-232 Port: Shielded RJ-45 Jack
    • EZ-Power Video Port: Shielded RJ-45 Jack (Power and Differential HD Video)
  • Supported Media Players:
    • Quick-Time Media Play - Win 7 & Mac OS10X
    • VLC Media Player - Win 7 & Mac OS10X
    • Real Player - Win 7
  • Supported Browsers:
    • Internet Explorer
    • Safari
    • Safari/iOS
    • Chrome
    • Fire Fox
  • Power Supply:  24 VDC, 2.08 Amp
  • Dimensions (H x W x D):  3.60” x 4.48" x 1.25" (91.4mm x 113.8mm x 31.75mm)
  • Weight:  1.1 lbs. (0.5Kg)
  • Accessories:
    • 6’ (1.83m) USB 2.0 Type-A Male to USB Type-B Male cable (included)
    • 24 VDC2.08 Amp Switching Power Supply with AC Cord Set (included)
    • Two (2) Cat-5 cables (not included - unknown length requirement)
  • Operating Temperatures:  0°C to 40°C / 20% to 80% Relative Humidity
  • Power Consumption Maximum:  <25 watts
