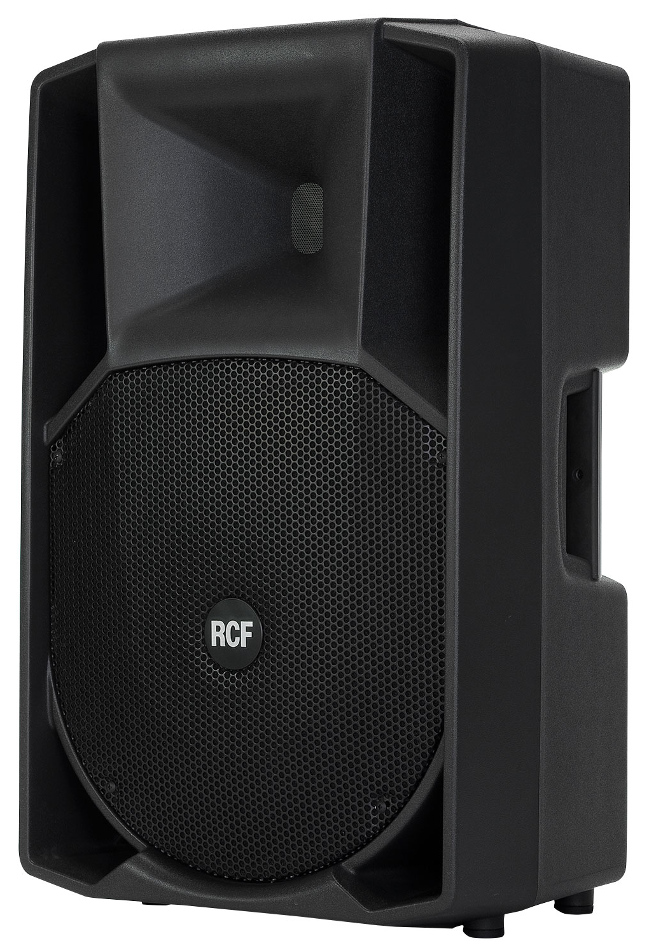

RCF ART 745-A
15" 1400W Peak Active Two-Way Loudspeaker

OUR PART #  ART-745A

Our Price: $1,599.00
List Price: $2,249.00
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The RCF ART 745-A features a titanium dome, 4.0” voice coil neo compression driver that offers a unique vocal clarity and sound projection. The 15” neo woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are built in RCF's factory in Italy using the most advanced assembly technologies.

The amplifier delivers 1400 Watts (peak) and is controlled by a DSP that takes care of crossover, equalization, phase alignment, soft limiting and speaker protections.

RCF ART 745-A Applications:

  • Compact live sound reinforcement
  • Portable PA
  • Frontfill and sidefill
  • Houses of worship, auditoriums, retail, clubs, ballrooms, corporate AV, live theatre, theme parks
  • High-output drum or keyboard monitor

RCF ART 745-A Features:

  • 1400 Watt Peak, 700 Watt RMS digital amplifier
  • 133 dB max spl
  • 90° x 60°, Wide dispersion constant directivity horn
  • 15" NEO woofer, high power 3.5" voice coil
  • HF NEO driver, titanium dome, 4" voice coil
  • PFC power factor correction
  • DSP Processing
  • 43.2 lbs (19.6 kg)

RCF ART 745-A Specifications:

  • Frequency Response (-3 dB):  45 Hz - 20 kHz
  • Max SPL:  133 dB
  • Horizontal coverage angle:  90°
  • Vertical coverage angle:  60°
  • Compression Driver:  1.5" neo, 4.0" v.c.
  • Woofer:  15", 3.5" v.c.
  • Input/Output Section:
    • Input signal:  Bal / unbal
    • Input connectors:  Combo XLR-jack
    • Output connectors:  XLR
    • Input sensitivity:  -2 dBu / +4 dBu
  • Processor Section:
    • Crossover frequencies:  650 Hz
    • Protections:  Thermal, rms
    • Limiter:  Soft limiter
    • Controls:  Volume, EQ shape
  • Amplifier Specifications:
    • Total power:  1400 W PEAK
      • High frequencies:  400 W PEAK
      • Low frequencies:  1000 W PEAK
    • Total power:  700 W RMS
      • High frequencies:  200 W RM
      •  Low frequencies:  500 W RMS
  • Cooling: Convection / forced
  • Connections:  VDE connector in
  • Cabinet:
    • Cabinet Material:  Composite PP
    • Hardware:  2xM10 flying p.
    • Handles:  2 side, 1 top
    • Pole Mount/Cap:  Yes
    • Color:  Black
  • Physical Specifications
    • Height:  27.87" (708mm)
    • Width:  17.2" (437mm)
    • Depth:  15.31" (389mm )
    • Net Weight:  43.2 lbs (19.6 kg)
