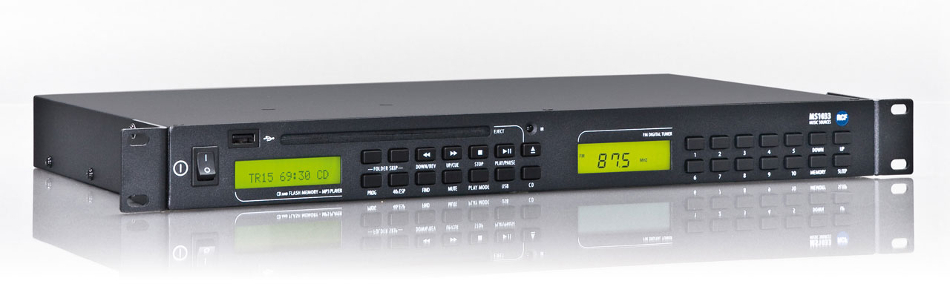

RCF MS 1033
Dual Source Rackmount Multimedia Player

OUR PART #  MS1033

Our Price: $399.00
List Price: $499.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The RCF MS 1033 is a dual sound source multimedia player with slot-loading CD player, USB-MP3, SD Card, and FM Tuner playback. The slot-loading CD drive is able to read music CDs as well as CD-R/RW discs containing MP3 music files. The MS 1033 has two USB inputs (only one may be used at a time) on the front and the rear allowing for maximum flexibility and use in a cabinet or rack with a front closing door. The USB inputs and the SD card input are also capable of reading MP3 music files for playback. The FM Tuner with high-sensitivity front-end and quartz-locked digital tuning ensure low-noise signal processing and drift-free reception of stereo FM. 60 presets across all wavebands provide instant recall of preferred stations.

The firstoutput is dedicated for the FM Tuner, and the second output on the MS 1033 is used for playback of the CD, USB-MP3, or SD Card, allowing users to seamlessly switch between sources for any need that may arise. The third output is the "Priority" output, which is a shared output between FM tuner and the CD/MP3 player but the CD/MP3 player signal has priority during playback.

With an IR receiver for remote control, the RCF MS 1033 fits in to any and all pro audio environments requiring playback of CD and FM radio locally or remotely. The compact design and the two LCD backlit displays reflect the attention to detail of an exceptional stereo tuner and CD player that upholds the RCF tradition for quality.

RCF MS 1033 Includes:

  • 1 FM indoor antenna
  • Pair of ear brackets for the 19” rack installation
  • Remote control unit
  • 3 Pair audio RCA cable 2.5 meter length
  • AC Power cord
  • User’s Guide
  • Warranty Card

RCF MS 1033 Applications:

  • Restaurants
  • Boutiques
  • Pubs
  • Beauty Centers
  • Markets
  • Fitness Centers
  • Hotels
  • Broadcast

RCF MS 1033 Features:

  • IR Remote control for CD–USB-SD / MP3 player & tuner functions
  • Supports CD-DA (.cda), MPEG-1/2 Layer III (.mp3)
  • Reads CD, CD-R, CD-R/W discs
  • USB port available on both front and back panels to provide maximum flexibility
  • SD card port is available on front panel
  • FM radio tuner with possibility to memorize your 60 favourite radio stations
  • 3 Balanced Audio Output with volume control
  • Priority Audio Output of the CD / MP3 player signal to the FM tuner
  • LCD backlit display gives information on the CD and MP3 files
  • LCD backlit display shows the frequency and stations that are in the memory

RCF MS 1033 Specifications:

  • Protections Power Supply:  Fuses (T0.63A - 250 V ;T1.25A - 250 V)
  • Operating Voltage:  220 - 240 / 110 - 120V ~ 50/60 Hz
  • Power (consumption):  50 W
  • Dimensions (WxHxD): 17.48" (w/o rack ears) x 1.73" x 9.84" (444mm x 44mm x 250mm)
  • Net Weight:  7.93 lbs (3.6kg)
  • Operating Temperature:  -13°F to 131°F (-25°C to +55°C)
  • Relative Humidity:  90% non-condensing
  • Radio Tuner:
    • FM Range:  87.5 - 108 MHz
    • FM Frequency Response:  100 Hz - 12 kHz
    • FM Channel Separation (1 kHz):  >/= 40 dB
    • FM Intermediate Rejection:  >/= 70 dB
    • FM Image Rejection:  >/= 50 dB
    • FM Signal/Noise Ratio:  >/= 60 dB
    • Intermediate Frequency:  10.7 MHz
    • Input Sensitivity:  6 µV e.m.f.
    • Automatic Tuning Sensitivity:  </= 50 µV
    • Total Harmonic Distortion (1 kHz):  < 0.8 %
    • Antenna Input:  75 Ohm – Coaxial
  • CD Player:
    • Audio Output Level:  +4 dBu (+/- 2 dBu)
    • Output Level Difference Between Channels:  < 2 dB
    • Frequency Response:  20 Hz - 20 kHz
    • Signal/Noise Ratio:  >/= 70 dB
    • Total Harmonic Distortion (1 kHz):  < 0.1 %
    • Stereo Separation:  >/= 60 dB
