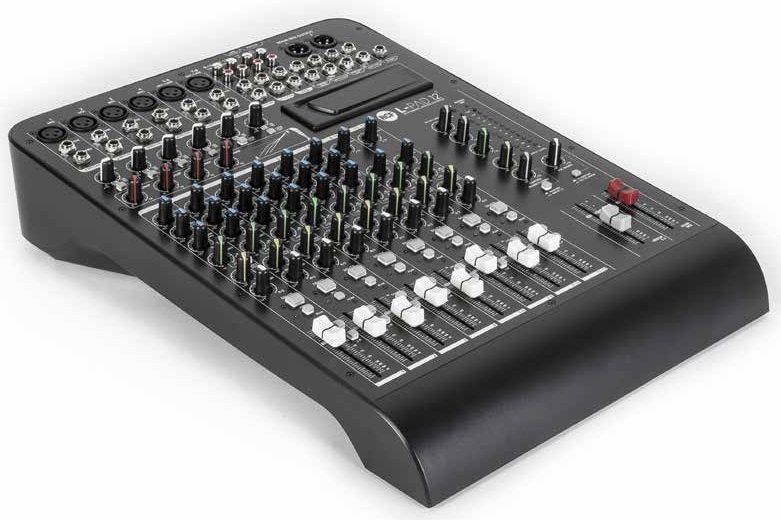

RCF L-PAD 12C
12-Channel Mixer with Expansion Slot and 4 Built-In Compressors

OUR PART #  LIVEPAD-12C

Our Price: $349.00
List Price: $499.00
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

With six transparent sound mic inputs, four stereo line inputs and the 2tk in/ out, RCF's L-PAD 12C is the ideal tool for small band gigs, complex conferences, corporate events and all situations where it is necessary to handle several signals. Four single-control compressors on mic channels help to handle even the more dynamic complex signals. Two Auxiliaries sends allows control of a small stage with the appropriate wedge monitors. The super versatile L-PAD slot permits the optional cards L-PAD MP3 Player, MP3 Player/Recorder or Bluetoth Connection cards to be inserted for even more flexible use. Thanks to the accurate Italian design, the L-PAD 12C is easy to grab, transport and handle in all live event situations.

RCF L-PAD 12C Features:

  • Microphone preamp gives transparent sound with high-range gain scale and 75 Hz low cut filter
  • Long life ultra reliable 60mm faders, all passed along life use test including several tens of thousands of complete cycles.
  • Smooth-action, single-control dynamic compressors on channels 1 through 4
  • Super versatile L-PAD Slot: One of the intelligent L-PAD option cards (sold seperately) may be installed, the MP3 Player, MP3Player/Recorder, or the Bluetooth Connection cards. These optional cards expand your L-PAD mixer usability adding an internal music player, a super-intuitive recorder or allow you to connect any Bluetooth device to reproduce your favorite playlist
  • 6 mono inputs with 3-band EQ
  • 4 stereo inputs with 2-band EQ
  • 2 AUX Sends

RCF L-PAD 12C Specifications:

  • Mono Channels:
    • Microphone Input:  XLR Balanced
      • Frequency Response:  20 Hz - 22 kHz, +/- 1dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Gain Range:  0 dB to -50 dB
      • Max. Input:  +15 dB (balanced)
      • SNR:  < -100 dBr A-weighted
      • Phantom Power:  +48V with switch control
    • Line Input:  1/4" TRS Balanced
      • Frequency Response:  20 Hz - 22 kHz, +/- 1dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Sensitivity Range:  +15 dBu to -35 dBu
    • Compressor:
      • Gain:  0 ------> 9dB
      • Threshold:  20dB ------> 5dB
  • Stereo Input Channels:
    • Microphone Input:  XLR Balanced
      • Low Cut:  75 Hz
      • Line Input:  1/4" TRS or TRS/RCA unbalanced
      • Frequency Response:  20 Hz - 22 kHz, +/- 1dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Sensitivity Range:  +15 dBu to -35 dBu
      • SNR:  < -100 dBr A-weighted
  • NOTE:  For full specificationson this product, refer to attached L-PAD Series Brochure under the Documentation Tab
MP3 Player/Recorder Expansion Card for L-PAD Series MixersRCF SMP-R MP3 Player/Recorder Expansion Card for L-PAD Series Mixers

The RCF SMP-R MP3 Player/Recorder Expansion Card is designed to be installed in any of the RCF L-PAD Series Mixers with the L-PAD Expansion slot. Place your preferred MP3 songs on a USB stick, evenly divided in separated folders, plug the ...

In Stock

Free Shipping Available

Sale Price:$55.06List Price: $79.00You save 30%!

Bluetooth Receiver Expansion Card for L-PAD Series MixersRCF SBT2.1 Bluetooth Receiver Expansion Card for L-PAD Series Mixers

The RCF SBT2.1 Bluetooth Expansion Card is designed to be installed in any of the RCF L-PAD Series Mixers with the L-PAD Expansion slot and can be connected to any Bluetooth device, such as smartphones or tablets and your playlist will be ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$49.00List Price: $59.00You save 17%!

Click to download

RCF L-PAD 12C
12-Channel Mixer with Expansion Slot and 4 Built-In Compressors

OUR PART #  LIVEPAD-12C

Product Videos:

Product Information:

With six transparent sound mic inputs, four stereo line inputs and the 2tk in/ out, RCF's L-PAD 12C is the ideal tool for small band gigs, complex conferences, corporate events and all situations where it is necessary to handle several signals. Four single-control compressors on mic channels help to handle even the more dynamic complex signals. Two Auxiliaries sends allows control of a small stage with the appropriate wedge monitors. The super versatile L-PAD slot permits the optional cards L-PAD MP3 Player, MP3 Player/Recorder or Bluetoth Connection cards to be inserted for even more flexible use. Thanks to the accurate Italian design, the L-PAD 12C is easy to grab, transport and handle in all live event situations.

RCF L-PAD 12C Features:

  • Microphone preamp gives transparent sound with high-range gain scale and 75 Hz low cut filter
  • Long life ultra reliable 60mm faders, all passed along life use test including several tens of thousands of complete cycles.
  • Smooth-action, single-control dynamic compressors on channels 1 through 4
  • Super versatile L-PAD Slot: One of the intelligent L-PAD option cards (sold seperately) may be installed, the MP3 Player, MP3Player/Recorder, or the Bluetooth Connection cards. These optional cards expand your L-PAD mixer usability adding an internal music player, a super-intuitive recorder or allow you to connect any Bluetooth device to reproduce your favorite playlist
  • 6 mono inputs with 3-band EQ
  • 4 stereo inputs with 2-band EQ
  • 2 AUX Sends

RCF L-PAD 12C Specifications:

  • Mono Channels:
    • Microphone Input:  XLR Balanced
      • Frequency Response:  20 Hz - 22 kHz, +/- 1dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Gain Range:  0 dB to -50 dB
      • Max. Input:  +15 dB (balanced)
      • SNR:  < -100 dBr A-weighted
      • Phantom Power:  +48V with switch control
    • Line Input:  1/4" TRS Balanced
      • Frequency Response:  20 Hz - 22 kHz, +/- 1dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Sensitivity Range:  +15 dBu to -35 dBu
    • Compressor:
      • Gain:  0 ------> 9dB
      • Threshold:  20dB ------> 5dB
  • Stereo Input Channels:
    • Microphone Input:  XLR Balanced
      • Low Cut:  75 Hz
      • Line Input:  1/4" TRS or TRS/RCA unbalanced
      • Frequency Response:  20 Hz - 22 kHz, +/- 1dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Sensitivity Range:  +15 dBu to -35 dBu
      • SNR:  < -100 dBr A-weighted
  • NOTE:  For full specificationson this product, refer to attached L-PAD Series Brochure under the Documentation Tab
MP3 Player/Recorder Expansion Card for L-PAD Series MixersRCF SMP-R MP3 Player/Recorder Expansion Card for L-PAD Series Mixers

The RCF SMP-R MP3 Player/Recorder Expansion Card is designed to be installed in any of the RCF L-PAD Series Mixers with the L-PAD Expansion slot. Place your preferred MP3 songs on a USB stick, evenly divided in separated folders, plug the ...

In Stock

Free Shipping Available

Sale Price:$55.06List Price: $79.00You save 30%!

Bluetooth Receiver Expansion Card for L-PAD Series MixersRCF SBT2.1 Bluetooth Receiver Expansion Card for L-PAD Series Mixers

The RCF SBT2.1 Bluetooth Expansion Card is designed to be installed in any of the RCF L-PAD Series Mixers with the L-PAD Expansion slot and can be connected to any Bluetooth device, such as smartphones or tablets and your playlist will be ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$49.00List Price: $59.00You save 17%!

Click to download
