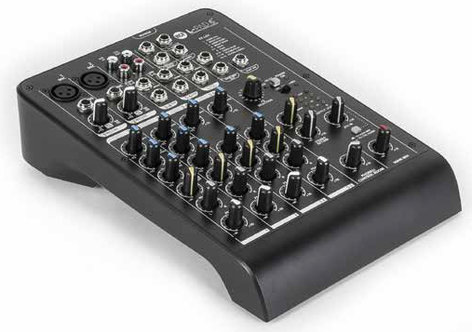

RCF L-PAD 6X
6-Channel Compact Mixer with Built-In Effects and 2 XLR Inputs

OUR PART #  LIVEPAD-6X

Our Price: $169.00
List Price: $239.00
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

With two transparent sound mic inputs, two stereo line inputs and the 2tk in/ out, RCF's L-PAD 6X is the ideal tool for one man bands, speech, background music diffusion and parties. The 16-preset Internal FX DSP allows the sound to be improved, adding accurate and warm effects. Thanks to the accurate Italian design L-PAD 6X is easy to grab and handle in all situations.

RCF L-PAD 6X Features:

  • Two ultra-low noise transparent microphone preamps with high-range gain scale
  • Ergonomic design is aesthetically pleasing and ensures easy on-the-go transport
  • Ultra-smooth rotary knobs control each channel's volume output
  • Offers 16 internal DSP preset effects:  Warm & Bright Halls, Warm & Bright Rooms, Vocal, Plate, Stereo Delay, Reverb+Delay, Reverb+Chorus
  • 2 mono inputs with 3-band EQ
  • 2 stereo inputs with 2-band EQ
  • 1 FX send

RCF L-PAD 6X Specifications:

  • Mono Channels
    • Microphone Input:  XLR Balanced
      • Frequency Response:  10 Hz - 55 kHz, +/- 3dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Gain Range:  0 dB to -50 dB
      • Max. Input:  +15 dB
      •  SNR:  < -100 dB A-weighted
      • Phantom Power:  +48V with switch control
    • Line Input:  1/4" TRS Balanced
      • Frequency Response:  10 Hz - 55 kHz, +/- 3dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Sensitivity Range:  +15 dBu to -35 dBu
      • SNR:  < -100 dB A-weighted
  • Stereo Input Channels
    • Line Input:  1/4" TRS
      • Frequency Response:  10 Hz - 55 kHz, +/- 3dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Sensitivity Range:  +22 dBu
      • SNR:  < -100 dB A-weighted
  • DSP Section
    • A/D and D/A Converters:  24-bit
    • Effect Types:  Warm Hall, Bright Hall, Warm Room, Bright Room, Vocal, Plate, Stereo Delay, Reverb+Delay, Reverb+Chorus
    • Controls:  16 position preset selector, mute switch and foot-switching with LED indicator
    • Foot Switch:  TIP = FX, SLEEVE = GND
  • NOTE:  For full specifications on this product, refer to attached L-PAD Series Brochure under the Documentation Tab
