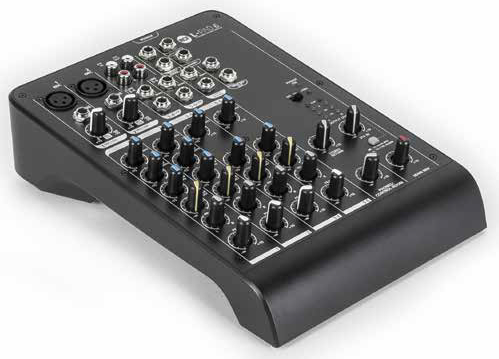

RCF L-PAD 6
6-Channel Compact Mixer with 2 XLR Inputs

OUR PART #  LIVEPAD-6

Our Price: $129.00
List Price: $179.00
You save 28%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

With two transparent microphone inputs, two stereo line inputs and the 2tk in/ out, RCF's L-PAD 6 is the ideal tool for one man bands, speech, background music diffusion and parties. Thanks to the accurate Italian design L-PAD 6 is easy to grab, transport and handle.

RCF L-PAD 6 Features:

  • Two ultra-low noise transparent microphone preamps with high-range gain scale
  • Ergonomic design is aesthetically pleasing and ensures easy on-the-go transport
  • Ultra-smooth rotary knobs control each channel's volume output
  • 2 mono inputs with 3-band EQ
  • 2 stereo inputs with 2-band EQ
  • 1 AUX Send

RCF L-PAD 6 Specifications:

  • Mono Channels:
    • Microphone Input:  XLR Balanced
      • Frequency Response:  10 Hz - 55 kHz, +/- 3dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Gain Range:  0 dB to -50 dB
      • Max. Input:  +15 dB
      • Low Cut:  75 Hz
      • SNR:  < -100 dBr A-weighted
      • Phantom Power:  +48V with switch control
    • Line Input:  1/4" TRS Balanced
      • Frequency Response:  10 Hz - 55 kHz, +/- 3dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Sensitivity Range:  +15 dBu to -35 dBu
      • SNR:  < -100 dBr A-weighted
  • Stereo Input Channels:
    • Line Input:  1/4" TRS
      • Frequency Response:  10 Hz - 55 kHz, +/- 3dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Sensitivity Range:  +22 dBu
      • SNR:  < -100 dBr A-weighted
  • NOTE:  For full specifications on this product, refer to attached L-PAD Series Brochure under the Documentation Tab
Padded Duffle Bag for LPAD 6, LPAD 6X and M18 Digital MixerRCF M 18 - L-PAD 6/6X Bag Padded Duffle Bag for LPAD 6, LPAD 6X and M18 Digital Mixer

This padded duffle bag from RCF is specifically designed for RCF's L-PAD 6, 6X and M 18 mixers, and includes a handle, shoulder belt and accessories for use as a backpack (when not in use the backpack accessories can be hidden). The ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$59.00List Price: $89.00You save 34%!

Click to download

RCF L-PAD 6
6-Channel Compact Mixer with 2 XLR Inputs

OUR PART #  LIVEPAD-6

Product Videos:

Product Information:

With two transparent microphone inputs, two stereo line inputs and the 2tk in/ out, RCF's L-PAD 6 is the ideal tool for one man bands, speech, background music diffusion and parties. Thanks to the accurate Italian design L-PAD 6 is easy to grab, transport and handle.

RCF L-PAD 6 Features:

  • Two ultra-low noise transparent microphone preamps with high-range gain scale
  • Ergonomic design is aesthetically pleasing and ensures easy on-the-go transport
  • Ultra-smooth rotary knobs control each channel's volume output
  • 2 mono inputs with 3-band EQ
  • 2 stereo inputs with 2-band EQ
  • 1 AUX Send

RCF L-PAD 6 Specifications:

  • Mono Channels:
    • Microphone Input:  XLR Balanced
      • Frequency Response:  10 Hz - 55 kHz, +/- 3dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Gain Range:  0 dB to -50 dB
      • Max. Input:  +15 dB
      • Low Cut:  75 Hz
      • SNR:  < -100 dBr A-weighted
      • Phantom Power:  +48V with switch control
    • Line Input:  1/4" TRS Balanced
      • Frequency Response:  10 Hz - 55 kHz, +/- 3dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Sensitivity Range:  +15 dBu to -35 dBu
      • SNR:  < -100 dBr A-weighted
  • Stereo Input Channels:
    • Line Input:  1/4" TRS
      • Frequency Response:  10 Hz - 55 kHz, +/- 3dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Sensitivity Range:  +22 dBu
      • SNR:  < -100 dBr A-weighted
  • NOTE:  For full specifications on this product, refer to attached L-PAD Series Brochure under the Documentation Tab
Padded Duffle Bag for LPAD 6, LPAD 6X and M18 Digital MixerRCF M 18 - L-PAD 6/6X Bag Padded Duffle Bag for LPAD 6, LPAD 6X and M18 Digital Mixer

This padded duffle bag from RCF is specifically designed for RCF's L-PAD 6, 6X and M 18 mixers, and includes a handle, shoulder belt and accessories for use as a backpack (when not in use the backpack accessories can be hidden). The ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$59.00List Price: $89.00You save 34%!

Click to download
