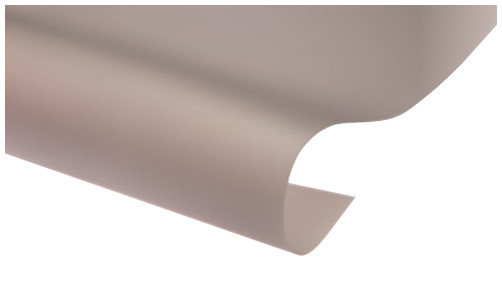

Draper 218066 CineFlex CH1200V NTSC 54 X 74 4:3 Screen Surface Image 1
Draper 218066 CineFlex CH1200V NTSC 54 X 74 4:3 Screen Surface
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Draper CineFlex CH1200V is a neutral grey rear projection diffusing viewing surface designed for Draper's Cinefold series of portable projection screens. It provides high resolution and excellent contrast, even in lighted rooms, is recommended for use with low to medium output projectors and has a moderate viewing cone (refer to the "Technical Data Sheet" in the "Documentation" tab). This surface was previously named “Cineflex.”

Draper has offered a CineFlex flexible rear projection surface for many years. CineFlex is now a family, offering choices of gain and color to meet a range of rear projection needs. CineFlex surfaces are available on a wide range of permanently tensioned, portable, and tab tensioned projection screen models.

Draper CineFlex CH1200V Surface Characteristics and Reflective Performance:

  • Part Number: 218066
  • Surface Material: CineFlex CH1200V
  • Image Format: NTSC 4:3
  • Diagonal Size: 90"
  • Overall Size: 54" x 74" (119cm x 152cm)
  • Image/Viewable Area: 50" x 70" (109cm x 142 cm)
  • Product Weight: 4 lbs. (1 kg)
  • Shipping Weight: 6 lbs. (3 kg)
  • Cleaning: Mild soap and water
  • Composition: Flexible PVC
  • Gain On Axis/0° Gain: 1.2
  • Half Gain Angle: 30°

Note

NOTE: This is the screen viewing surface ONLY. Please contact your sales representative for information on frames, legs, and other projection screen mounting options.
