Palmer PGA04L04
Speaker Simulator with 4 Ohm Loadbox

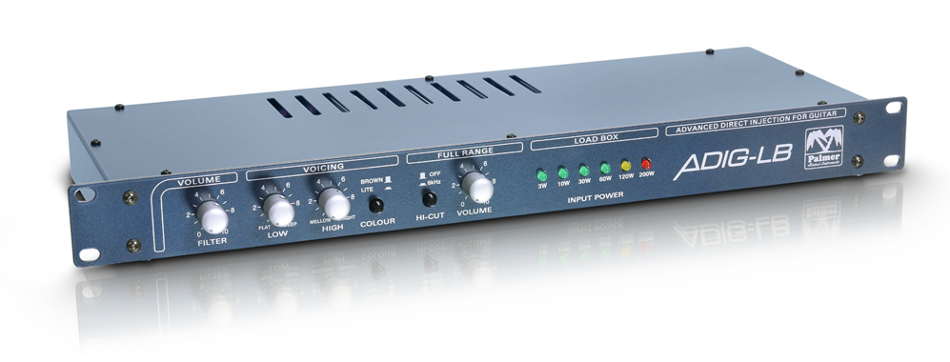

The Palmer PGA04L04 is a special DI box with loadbox for guitars.
Learn More
Our Price: $679.95
List Price: $1,121.95
You save 39%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Palmer PGA04L04
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Palmer PGA04L04 is a special DI box with loadbox for guitars. The integrated load resistor permits tube amplifiers up to approximately 120 W to be connected to the PGA04, bypassing a loudspeaker. A jack socket (unbalanced) and balanced XLR connector are available for direct pickup of the signal. The extensive filter section provides for a realistic simulation of classic guitar loudspeaker sounds.

Palmer PGA04L04 Specifications:

  • Product Type: Speaker simulator
  • Type: Passive
  • Channels: 1
  • Input Type: Unbalanced
  • Inputs: 1
  • Input connector: 1/4" (6.3 mm) Jack
  • Output Type: Unbalanced, Balanced
  • Outputs: 2
  • Output Connectors: XLR, 1/4" (6.3 mm) Jack
  • Output Impedance: 600 Ohms (XLR), 10 kOhms (1/4" (6.3 mm) Jack)
  • Controls: Low, High, High Cut, Fullrange Volume, Filter Volume, Color
  • Display: Max. load
  • Dummy Load: Yes
  • Dummy Load Impedance: 4 Ohms
  • Max. Load: 100 W
  • Voicing Filter: Yes
  • Power Attenuator: No
  • Transformer Balanced Inputs: No
  • Transformer Isolated Outputs: Yes
  • Cabinet Material: Sheet steel
  • Cabinet Surface: Powder coated
  • Dimensions (WxDxH): 19" x 7" x 1U (480 x180 x 44.5 mm)
  • Weight: 2.56 kg
