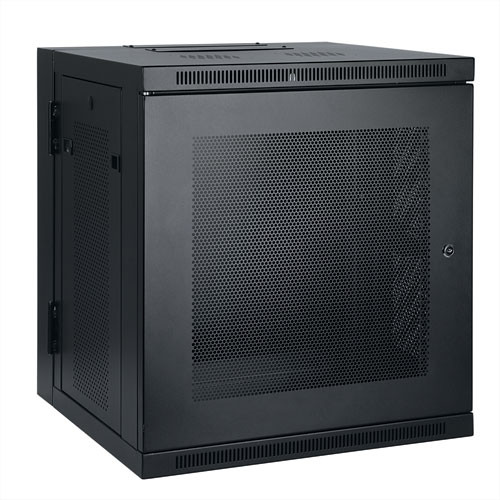

Tripp Lite SRW10US
10RU Wall-Mount Rack Cabinet

OUR PART #  SRW10US

Our Price: $420.00
List Price: $540.00
You save 22%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The SRW10US 10U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 10U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.

Tripp-Lite SRW10US Includes:

  • SRW10US Wallmount Rack Enclosure
  • (24) M6 screws
  • (24) M6 cagenuts
  • (24) M6 washers
  • (2) Keys
  • Owner's Manual

Tripp-Lite SRW10US Features:

  • 10U wall-mounted enclosure
  • Adjustable mounting depths from 3" to 20.5" inches
  • Ventilated front door and side panels for increased airflow
  • Hinged cabinet swings away from wall bracket for easy equipment and cable access
  • Locking, reversible front door
  • Locking, removable side panels
  • Top and bottom panel cable access openings
  • Fully assembled for quick installation
  • Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

Tripp-Lite SRW10US Specifications:

  • Installed whole system maximum rack depth (inches):  20.5
  • Installed whole system maximum rack depth (cm):  52.07
  • Installed whole system minimum rack depth (inches):  3
  • Installed whole system minimum rack depth (cm):  7.62
  • Rack Height:  10U
  • Shipping Dimensions (HWD/in):  24.41 x 26.38 x 24.41
  • Shipping Dimensions (HWD/cm):  62 x 67 x 62
  • Shipping weight (lbs):  59
  • Shipping weight (kg):  26.76
  • Unit Dimensions (in.):  EXTERNAL DIMENSIONS: 21.57 x 23.62 x 21.6 (HWD)
  • Unit weight (lbs):  55
  • Unit weight (kg):  24.94
  • Unit Dimensions (cm):  EXTERNAL DIMENSIONS: 54.78 x 60 x 54.9 (HWD)
  • Color:  Black
  • Style:  Wall Mounted
  • Weight Capacity - Stationary (lbs):  200
  • Weight Capacity - Stationary (kg):  90.7
  • Factory preset rack depth (cm):  26.47
  • Cable Access Hole Measurement (inches):  9.812 x 2.35 (l x w)
  • Factory preset rack depth (inches):  10.42
  • Grounding lug:  Front and Back door frames
  • Certifications: NOM (Mexico)  Tested to NOM (Mexico)
  • Approvals  EIA-310-E, IEC 60297-3-100, RoHS, DIN 41494, IP20 Protection Rating
  • Warranty: Product Warranty Period (Worldwide)  5-year limited warranty

Tripp Lite SRW10US
10RU Wall-Mount Rack Cabinet

OUR PART #  SRW10US

Product Information:

The SRW10US 10U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 10U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.

Tripp-Lite SRW10US Includes:

  • SRW10US Wallmount Rack Enclosure
  • (24) M6 screws
  • (24) M6 cagenuts
  • (24) M6 washers
  • (2) Keys
  • Owner's Manual

Tripp-Lite SRW10US Features:

  • 10U wall-mounted enclosure
  • Adjustable mounting depths from 3" to 20.5" inches
  • Ventilated front door and side panels for increased airflow
  • Hinged cabinet swings away from wall bracket for easy equipment and cable access
  • Locking, reversible front door
  • Locking, removable side panels
  • Top and bottom panel cable access openings
  • Fully assembled for quick installation
  • Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

Tripp-Lite SRW10US Specifications:

  • Installed whole system maximum rack depth (inches):  20.5
  • Installed whole system maximum rack depth (cm):  52.07
  • Installed whole system minimum rack depth (inches):  3
  • Installed whole system minimum rack depth (cm):  7.62
  • Rack Height:  10U
  • Shipping Dimensions (HWD/in):  24.41 x 26.38 x 24.41
  • Shipping Dimensions (HWD/cm):  62 x 67 x 62
  • Shipping weight (lbs):  59
  • Shipping weight (kg):  26.76
  • Unit Dimensions (in.):  EXTERNAL DIMENSIONS: 21.57 x 23.62 x 21.6 (HWD)
  • Unit weight (lbs):  55
  • Unit weight (kg):  24.94
  • Unit Dimensions (cm):  EXTERNAL DIMENSIONS: 54.78 x 60 x 54.9 (HWD)
  • Color:  Black
  • Style:  Wall Mounted
  • Weight Capacity - Stationary (lbs):  200
  • Weight Capacity - Stationary (kg):  90.7
  • Factory preset rack depth (cm):  26.47
  • Cable Access Hole Measurement (inches):  9.812 x 2.35 (l x w)
  • Factory preset rack depth (inches):  10.42
  • Grounding lug:  Front and Back door frames
  • Certifications: NOM (Mexico)  Tested to NOM (Mexico)
  • Approvals  EIA-310-E, IEC 60297-3-100, RoHS, DIN 41494, IP20 Protection Rating
  • Warranty: Product Warranty Period (Worldwide)  5-year limited warranty
