Listen Technologies LR-5200-072-P1
Intelligent DSP RF Reciever (72 MHz) Assistive Listening Package for Multi-Channel Applications

OUR PART #:  LR-5200-072-P1

The Listen Technologies LR-5200-072-P1 makes it easy to order all the components you need for an exceptional listening experience.
Learn More
Our Price: $269.00
List Price: $299.00
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Listen Technologies LR-5200-072-P1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

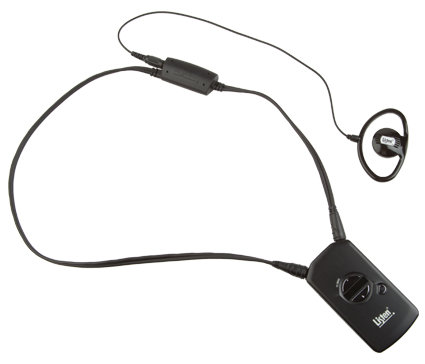

The Listen Technologies LR-5200-072-P1 makes it easy to order all the components you need for an exceptional listening experience. The package includes the LR-5200-072 iDSP receiver, integrated neck loop/lanyard, and universal ear speaker making it ideal for personal use in venues with existing 72 MHz assistive listening systems.

With Listen’s unique DSP SQ noise reduction technology, users experience 20 dB less noise and hiss than any other listening device. Advanced green battery technology dramatically reduces costs of ownership and hassles while reducing the number of batteries in landfills. A field replaceable Lithium-ion battery is included with the unit. The integrated neck loop / lanyard with DSP loop driver, improves the listening experience for T-coil users. iDSP is the smallest device of its kind, making it easier to wear and easier for venues to dispense, store and maintain.

The LR-5200-072 has an OLED display to program channel names, monitor battery status, channel status, and charge activation. Programmable channel select button allows user to cycle through active channels, seek to or lock to a channel. Connect the iDSP neck loop/lanyard or ear phones via two 3.5 mm output jacks (ear phones could be shared). The Micro USB connection is used with included iDSP software for charging, set up, programming, inventory management and firmware updates.

Listen Technologies LR-5200-072-P1 Includes:

  • One (1) LR-5200-072 Advanced Intelligent DSP RF Receiver (72 MHz)
  • One (1) LA-430 Intelligent Ear Phone/Neck Loop Lanyard
  • One (1) LA-401 Intelligent Ear Speaker
  • Quick Start Guide

Listen Technologies LR-5200-072-P1 Features:

  • Complete Intelligent DSP receiver package makes ordering and specifying intelligent receiver solutions easy!
  • Ideal for personal use in venues with existing 72 MHz assistive listening systems
  • Includes LR-5200 receiver, integrated neckloop/lanyard and ear speaker
  • Advanced DSP SQTM noise reduction technology delivers 20 dB less noise and hiss than any other listening device
  • Integrated neck loop / lanyard with DSP loop driver improves the listening experience for T-coil users
  • Smallest device of its kind makes it easier to wear and for venues to dispense, store and maintain
  • Limited Lifetime Warranty with hassle-free support
  • Can be worn around the neck, with the belt clip, or concealed in a pocket, making it the most discreet listening device on the market
  • Advanced green battery technology dramatically reduces costs of ownership and hassles while reducing the number of batteries in the landfill
  • Use for multi-channel applications where the users need the convenience of changing the channels themselves

Listen Technologies LR-5200-072-P1 Specifications:

  • LR-5200-072 Advanced Intelligent DSP RF Receiver:
    • Audio:
      • Frequency Response:  50 Hz - 15 kHz (±3 dB)
      • System Signal to Noise Ratio:
        • SQ Enabled:  80 dB
        • SQ Disabled:  60 dB
      • System Distortion:  <2% total harmonic distortion (THD) at 80% deviation
      • Output/s:  Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 Ohm
    • Controls:
      • User Controls:  Power, up/down volume, Listen button for end user channel selection
      • Set-up Controls:  Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel
      • Programming:  Via software and USB port
    • Indicators:
      • Display:  Channel designation, battery level, unit number, charging status
      • LEDs:  Flashes when batteries are low or to indicate charging, solid when fully charged
    • RF:
      • Frequency Range:  72.025 - 75.950 MHz
      • Number of Channels:  17 wide band, 40 narrow band
      • Sensitivity:  .6uV typical, 1 uV maximum for 12 dB sinad
      • Frequency Accuracy:  ± .005% stability 32 to 122 ºF (0 to 50 ºC)
      • Antenna Type:  Uses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable
      • Squelch:  Programmable in 20 steps, automatic on loss of RF signal
    • Power:
      • Battery Life:  8 Hours of continuous use
      • Power Supply:  Micro USB connector, 5 V, 500 mA
      • Battery Type:  Lithium Ion 3.7 Vdc, 1200 mAh
      • Battery Charging Time:  Fully charged in 2.5 Hours
    • Physical:
      • Dimensions (H x W x D):  3.75 x 2.0 x 0.64 in. (9.6 x 5.0 x 1.7 cm)
      • Dimensions with Belt Clip:  3.75 x 2.0 x 0.80 in. (9.6 x 5.0 x 2.1 cm)
      • Color:  Black
      • Unit Weight:  1.60 oz. (45 g)
      • Unit Weight with Batteries:  2.40 oz. (68 g)
      • Shipping Weight:  3.20 oz. (91 g) with 1.0 lbs. (454 g) minimum
    • Environmental:
      • Temperature - Operation:  14 to 104 ºF (-10 to 40 ºC)
      • Temperature - Storage:  -4 to 122 °F (-20 to 50 °C)
      • Relative Humidity:  0 to 95% relative humidity, non-condensing
    • Compliance Standards:  FCC Part 15, Part 90, Industry Canada, RoHS
  • LA-430 Intelligent Ear Phone/Neck Loop Lanyard:
    • Interconnections:
      • Connection to Receiver:  Male 3.5 mm (TRS) to Male 3.5 mm (TRS)
      • Connection to Short Ear Phone:  Female 3.5 mm (TRS)
    • Loop:
      • Neck Loop Field Strength:  400 mA/m (+/- 3dB)
      • Neck Loop Frequency Response:  100 Hz - 5 kHz (+/- 3 dB ref 1 kHz)
    • Compliance Standards:  RoHS, IEC60118-4
    • Physical:
      • Cord Length:  29.00 in. (74 cm)
      • Color:  Black
      • Unit Weight:  1.50 oz. (43 g)
      • Shipping Weight:  1.0 lbs. (454 g)
    • LA-401 Universal Ear Speaker:
      • Audio:
      • Frequency Response:  20 Hz - 20 kHz
      • Impedance:  32 Ohms +/- 15% @ 1 kHz
      • Rated Power Input:  50 mW
      • Max Power Input:  100 mW
      • Input Sensitivity:  115 dB +/- 4dB @ 1 kHz, 1 mW
      • Connector:  Male 3.5 mm (TRS)
      • Compliance Standards:  RoHS
    • Physical:
      • Cable Length:  13 in. (33 cm), extension cable is 28 in. (71 cm)
      • Unit Weight:  0.40 oz. (11 g)
      • Shipping Weight:  1.0 lbs. (454 g)
      • Color:  Dark Gray
