Listen Technologies LR-5200-072 Advanced Intelligent DSP RF Receiver for Multi-Channel Applications, 72MHz

OUR PART #: LR-5200-072 MFR #: LR-5200-072

Copied to clipboard

An easy-to-wear, easy-to-use personal listening option for theaters, concert venues, lecture halls, and more. ...Read more

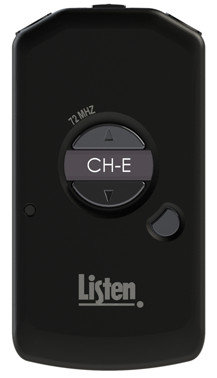

Listen Technologies LR-5200-072 Advanced Intelligent DSP RF Receiver For Multi-Channel Applications, 72MHz Image 1
Listen Technologies LR-5200-072 Advanced Intelligent DSP RF Receiver For Multi-Channel Applications, 72MHz Image 2
TykoaghzqME
1 Video
Listen Technologies LR-5200-072 Advanced Intelligent DSP RF Receiver For Multi-Channel Applications, 72MHz
Our Price: $259.00
List Price: $298.00
You save 13%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$8/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

An easy-to-wear, easy-to-use personal listening option for theaters, concert venues, lecture halls, and more. Listen's noise-reduction technology diminishes noise and hiss by 20dB. An integrated neck loop / lanyard enhances the audio experience for listeners with Telecoil devices and its compact design makes it easy to wear, carry and store. The "green" lithium-ion battery can be recharged via USB, reducing the number of batteries in landfills.

Includes

  • One (1) LR-5200-072 Advanced Intelligent DSP RF Receiver (72 MHz) with a non-proprietary field-replaceable Lithium-ion battery
  • Quick Start Guide

Features

  • 17 wide-band, 40 narrow-band channels
  • Eight hours battery life (continuous use)
  • LED flashes when battery is low
  • Integrated neck loop / lanyard with DSP loop driver improves the listening experience for T-coil users
  • Smallest device of its kind makes it easier to wear and for venues to dispense, store and maintain

Specifications

  • Audio:
    • Frequency Response: 50 Hz - 15 kHz (±3 dB)
    • System Signal to Noise Ratio:
      • SQ Enabled: 80 dB
      • SQ Disabled: 60 dB
    • System Distortion:
    • Output/s: Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm
  • Controls:
    • User Controls: Power, up/down volume, Listen button for end user channel selection
    • Set-up Controls: Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel
    • Programming: Via software and USB port
  • Indicators:
    • Display: Channel designation, battery level, unit number, charging status
    • LEDs: Flashes when batteries are low or to indicate charging, solid when fully charged
  • RF:
    • Frequency Range: 72.025 - 75.950 MHz
    • Number of Channels: 17 wide band, 40 narrow band
    • Sensitivity: .6uV typical, 1 uV maximum for 12 dB sinad
    • Frequency Accuracy: ± .005% stability 32 to 122 ºF (0 to 50 ºC)
    • Antenna Type: Uses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable
    • Squelch: Programmable in 20 steps, automatic on loss of RF signal
  • Power:
    • Battery Life: 8 Hours of continuous use
    • Power Supply: Micro USB connector, 5 V, 500 mA
    • Battery Type: Lithium Ion 3.7 Vdc, 1200 mAh
    • Battery Charging Time: Fully charged in 2.5 Hours
  • Physical:
    • Dimensions (H x W x D): 3.75 x 2.0 x 0.64 in. (9.6 x 5.0 x 1.7 cm)
    • Dimensions with Belt Clip: 3.75 x 2.0 x 0.80 in. (9.6 x 5.0 x 2.1 cm)
    • Color: Black
    • Unit Weight: 1.60 oz. (45 g)
    • Unit Weight with Batteries: 2.40 oz. (68 g)
    • Shipping Weight: 3.20 oz. (91 g) with 1.0 lbs. (454 g) minimum
  • Environmental:
    • Temperature - Operation: 14 to 104 ºF (-10 to 40 ºC)
    • Temperature - Storage: -4 to 122 °F (-20 to 50 °C)
    • Relative Humidity: 0 to 95% relative humidity, non-condensing
  • Compliance Standards: FCC Part 15, Part 90, Industry Canada, RoHS

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
