Tripp Lite B126-1A1-WP
HDMI Over Cat5 / Cat6 Extender for Extended Range Wallplate Transmitter & Receiver

OUR PART #  B126-1A1-WP

Our Price: $168.98
List Price: $227.20
You save 26%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Tripp Lite B126-1A1-WP transmits a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series.) The receiver unit features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).

Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connected the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Now you'll be able to transmit the following:

  • A 1080p (60Hz) signal can be transmitted up to 150 ft.
  • A 1080i (60Hz) signal can be transmitted up to 200 ft.
  • A 3D signal can be transmitted up to 125 ft.

Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit:

  • Add up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays.
  • A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft.
  • A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft.
  • A 3D signal can be extended up to 100 ft. for each repeater in theinstallation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signalcan be extended up to 400 ft.

What's in the Tripp Lite B126-1A1-WP Box:

  • B126-1A1-WP local unit
  • B126-1A1-WP remote unit
  • Screwdriver for adjustment of Equalization
  • (x2) External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's manual

Tripp Lite B126-1A1-WP Features:

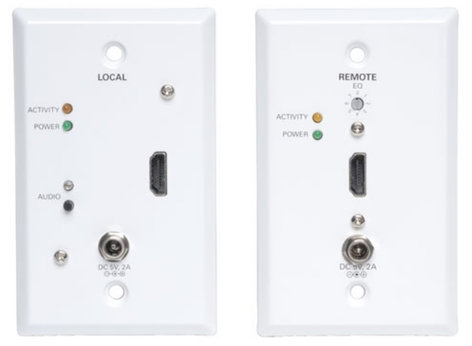

  • Two piece kit includes both local transmitter and remote receiver wallplate units
  • Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
  • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, is required to achieve maximum distance and resolution.
  • Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor.
  • HDCP and 3D compatible
  • Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM)
  • Supports 24-bit True Color (8-bits per channel)
  • Can further expand the range and number of monitors by adding B126-110 repeaters
  • Connect up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays.
  • A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft.
  • A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft.
  • A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signal can be extended up to 400 ft.
  • Features a built-in Equalization control for adjustment of the video image
  • Compatible with all operating systems
  • Plug and play; No drivers required
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedulepurchases

Tripp Lite B126-1A1-WP Specifications:

  • Cable Type: HDMI
  • Display Style: Extender
  • Physical:
    • Mounting accessories included: Yes
    • Color: White
  • Environmental:
    • Operating Temperature Range: 0 to 40 C (32 to 104 F)
    • Storage Temperature Range: -20 to 60 C (-4 to 140 F)
    • Relative Humidity: 20 to 90%
  • Connections:
    • Connector A: HDMI (Female)
    • Connector B: RJ45 (Female)
  • Product Warranty Period (Worldwide): 1-year limited warranty

Tripp Lite B126-1A1-WP
HDMI Over Cat5 / Cat6 Extender for Extended Range Wallplate Transmitter & Receiver

OUR PART #  B126-1A1-WP

Product Information:

The Tripp Lite B126-1A1-WP transmits a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series.) The receiver unit features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).

Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connected the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Now you'll be able to transmit the following:

  • A 1080p (60Hz) signal can be transmitted up to 150 ft.
  • A 1080i (60Hz) signal can be transmitted up to 200 ft.
  • A 3D signal can be transmitted up to 125 ft.

Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit:

  • Add up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays.
  • A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft.
  • A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft.
  • A 3D signal can be extended up to 100 ft. for each repeater in theinstallation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signalcan be extended up to 400 ft.

What's in the Tripp Lite B126-1A1-WP Box:

  • B126-1A1-WP local unit
  • B126-1A1-WP remote unit
  • Screwdriver for adjustment of Equalization
  • (x2) External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's manual

Tripp Lite B126-1A1-WP Features:

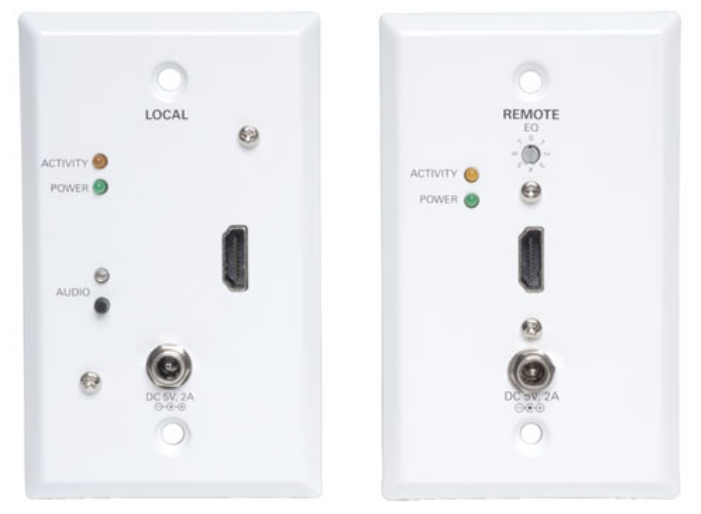

  • Two piece kit includes both local transmitter and remote receiver wallplate units
  • Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
  • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, is required to achieve maximum distance and resolution.
  • Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor.
  • HDCP and 3D compatible
  • Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM)
  • Supports 24-bit True Color (8-bits per channel)
  • Can further expand the range and number of monitors by adding B126-110 repeaters
  • Connect up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays.
  • A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft.
  • A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft.
  • A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signal can be extended up to 400 ft.
  • Features a built-in Equalization control for adjustment of the video image
  • Compatible with all operating systems
  • Plug and play; No drivers required
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedulepurchases

Tripp Lite B126-1A1-WP Specifications:

  • Cable Type: HDMI
  • Display Style: Extender
  • Physical:
    • Mounting accessories included: Yes
    • Color: White
  • Environmental:
    • Operating Temperature Range: 0 to 40 C (32 to 104 F)
    • Storage Temperature Range: -20 to 60 C (-4 to 140 F)
    • Relative Humidity: 20 to 90%
  • Connections:
    • Connector A: HDMI (Female)
    • Connector B: RJ45 (Female)
  • Product Warranty Period (Worldwide): 1-year limited warranty
