SoundTube XT550
5.25" 60W Coaxial Outdoor Speaker in Sand Stone

OUR PART #  XT550-SS

Call for price! Not available online.


The Soundtube XT550 features patented BroadBeam® waveguide technology, which provides smooth 360º horizontal off-axis coverage and reduces overall system costs. This speaker has one 5.25 inch weatherproof polypropylene woofer with butyl rubber surround and one 1? aluminum dome tweeter with integrated horn & mounting bracket.

UV-, scratch-, chlorine- and weather- resistant with professional-grade components for long-lasting performance and durability. Patented, durable and weather sealed Zero Reflection™ enclosure with optional port vent for added frequency response. Weather-proof 5-position tap switch for 25-, 70.7-, 100 Volt applications with transformer bypass position. 32 Watt transformer included. Liquid-tight compression fittings for water-tight protection. Multiple wire inlet locations for fast and easy daisy chaining. Stainless steel fasteners, stainless steel & powder-coated grille. UL 1480 (UEAY) pending.

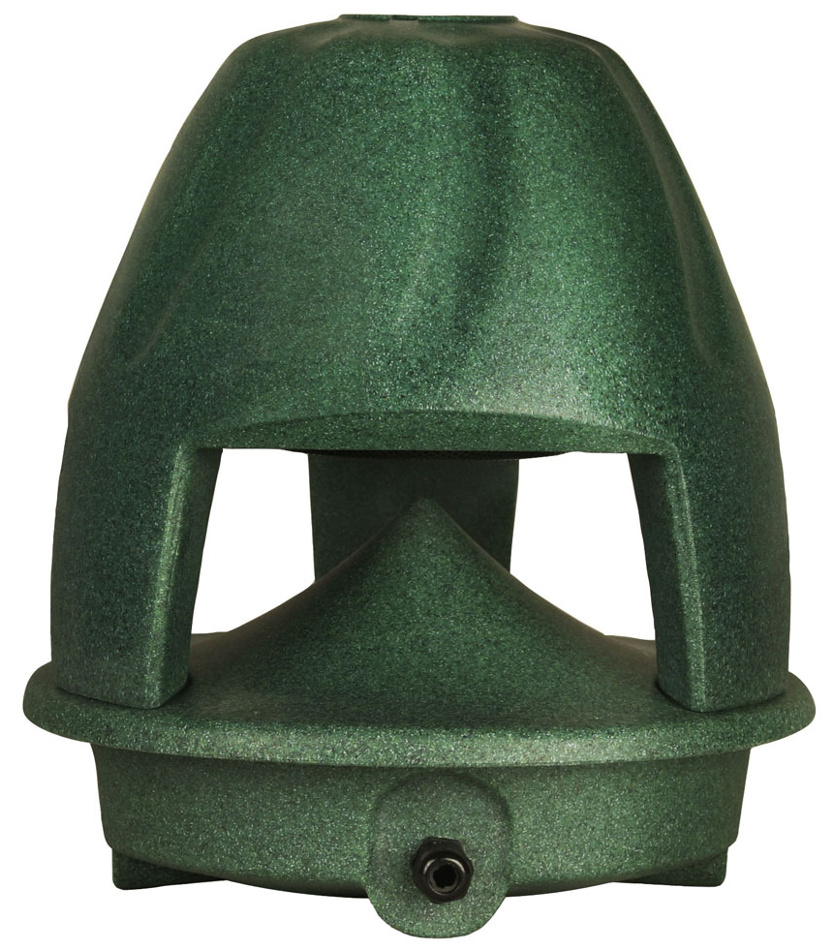

NOTE:  Image shown above is for illustrative purposes only; actual product is Sand Stone in color. For more information on this and other products, contact your Sales Representative.

Soundtube XT550 Specifications:

  • Frequency Response (-3 dB):  61 Hz – 9.5 kHz port open (101 Hz – 12 kHz port closed)
  • Low Frequency(-10 dB):  49 Hz – 22 kHz port open (62 Hz – 22 kHz port closed)
  • Sensitivity:  83 dB
  • Power Capacity RMS:  60 Watts
  • Max SPL dB @ 1 M:  101 dB
  • Nominal Impedance:  4 Ohms
  • Tweeter:  1" (25mm) Aluminum Dome
  • Woofer:  5.25" (130mm) Polypropylene
  • Connections:  18-Gauge wire lead
  • Height:  15.51 in (394mm)
  • Diameter:  14.1 in (358.1mm)
  • Weight  13.0 lbs (5.9 kg)
  • Shipping Weight:  19.0 lbs (8.6 kg)
  • Regulatory- IP:  IP55 approved
  • Colors:  Granite Green or Sand Stone

SoundTube XT550
5.25" 60W Coaxial Outdoor Speaker in Sand Stone

OUR PART #  XT550-SS

Product Information:

The Soundtube XT550 features patented BroadBeam® waveguide technology, which provides smooth 360º horizontal off-axis coverage and reduces overall system costs. This speaker has one 5.25 inch weatherproof polypropylene woofer with butyl rubber surround and one 1? aluminum dome tweeter with integrated horn & mounting bracket.

UV-, scratch-, chlorine- and weather- resistant with professional-grade components for long-lasting performance and durability. Patented, durable and weather sealed Zero Reflection™ enclosure with optional port vent for added frequency response. Weather-proof 5-position tap switch for 25-, 70.7-, 100 Volt applications with transformer bypass position. 32 Watt transformer included. Liquid-tight compression fittings for water-tight protection. Multiple wire inlet locations for fast and easy daisy chaining. Stainless steel fasteners, stainless steel & powder-coated grille. UL 1480 (UEAY) pending.

NOTE:  Image shown above is for illustrative purposes only; actual product is Sand Stone in color. For more information on this and other products, contact your Sales Representative.

Soundtube XT550 Specifications:

  • Frequency Response (-3 dB):  61 Hz – 9.5 kHz port open (101 Hz – 12 kHz port closed)
  • Low Frequency(-10 dB):  49 Hz – 22 kHz port open (62 Hz – 22 kHz port closed)
  • Sensitivity:  83 dB
  • Power Capacity RMS:  60 Watts
  • Max SPL dB @ 1 M:  101 dB
  • Nominal Impedance:  4 Ohms
  • Tweeter:  1" (25mm) Aluminum Dome
  • Woofer:  5.25" (130mm) Polypropylene
  • Connections:  18-Gauge wire lead
  • Height:  15.51 in (394mm)
  • Diameter:  14.1 in (358.1mm)
  • Weight  13.0 lbs (5.9 kg)
  • Shipping Weight:  19.0 lbs (8.6 kg)
  • Regulatory- IP:  IP55 approved
  • Colors:  Granite Green or Sand Stone
