SoundTube XT850
8" 100W Coaxial Outdoor Speaker in Sand Stone


Call for price! Not available online.

The Soundtube XT850 features patented BroadBeam® waveguide technology, which provides smooth 360º horizontal off-axis coverage and reduces overall system costs. This speaker has one 8.0 inch weatherproof polypropylene woofer with butyl rubber surround and one 1? aluminum dome tweeter with integrated horn & mounting bracket.

UV-, scratch-, chlorine-, and weather- resistant with professional-grade components for long-lasting performance and durability. Patented, durable and weather sealed Zero-Reflection™ enclosure. Weather-proof 5-position tap switch for 25-, 70.7-, 100 Volt applications with transformer bypass position. 64 Watt transformer included. Liquid-tight compression fittings for water-tight protection. Multiple wire inlet locations for fast and easy daisy chaining. Stainless steel fasteners & grille. UL 1480 (UEAY) pending.

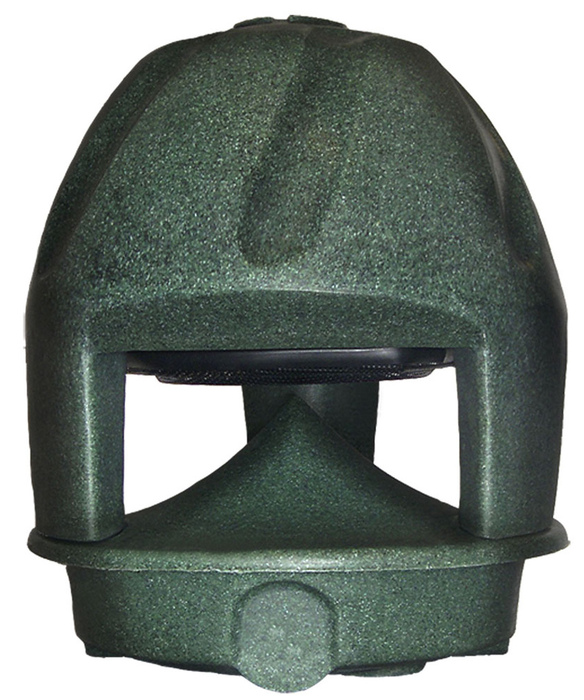

NOTE:  Image shown above is for illustrative purposes only; actual product is Sand Stone in color. For more information on this and other products, contact your Sales Representative.

Soundtube XT850 Specifications:

  • Frequency Response (-3 dB):  51 Hz – 10 kHz
  • Low Frequency (-10 dB):  38 Hz – 22 kHz
  • Sensitivity:  85.0 dB
  • Power Capacity RMS:  100 Watts
  • Max SPL dB @ 1 M:  105.0 dB
  • Nominal Impedance:  4 Ohms
  • Transformer Options:  25 / 70.7 / 100 Volt option with a 4 Ohm direct
  • Tweeter:  1" (25mm) Aluminum Dome
  • Woofer:  8" (203mm) Poly
  • Connections:  18-Gauge wire lead
  • Height:  16.42" (417.1mm)
  • Diameter:  14.17" (359.9mm)
  • Weight:  16.7 lbs (7.6 kg)
  • Shipping Weight:  22 lbs (10 kg)
  • Regulatory- IP:  IP55 approved
  • Colors:  Granite Green or Sand Stone
