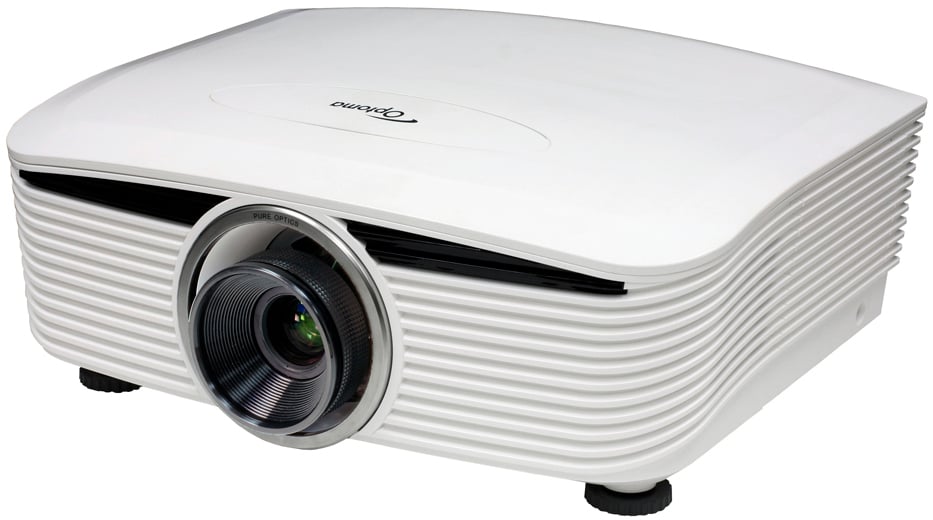

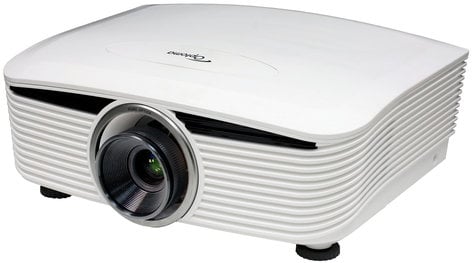

Optoma EH503
5000 Lumens 1080p ProScene Projector without Lens

OUR PART #  EH503

Our Price: $3,199.00
List Price: $6,299.00
You save 49%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories
Projection Calculator

The Optoma EH503 is a great solution for professional installation and integration in large board rooms, conference rooms, lecture halls, auditoriums, and houses of worship.

With its powerful 5200 lumens output, remarkable 2000:1 contrast ratio and native 16:9 aspect ratio, the Optoma EH503 delivers bright large-screen presentations, movies, text and graphics with amazing image clarity and superb color reproduction.

Designed for ease of installation and integration, the Optoma EH503 provides vertical and horizontal lens shift, choice of 3 high-quality, high performance optional lenses, comprehensive connectivity including HDMI 1.4a, DisplayPort , DVI-D for digital sources, 3-axis color matching, brightness matching, wired remote, Crestron RoomView for remote monitoring and control, DICOM simulation mode and much more.  Built to Optoma's highest quality standards, the Optoma EH503 will deliver peak performance for years to come.

Includes:

  • EH503 projector
  • AC power cord
  • VGA to VGA cable
  • Remote control
  • Batteries for remote
  • CD-ROM user's manual
  • Quick start card and warranty card

Optoma EH503 Features:

  • High resolution 1080p display ensures easy to read text and graphics
  • Ideal solution for large screen 16:9 video displays
  • 3D at full 1080p resolution with optional RF 3D emitter and glasses
  • Vertical and horizontal lens shift for maximum installation flexibility
  • Interchangeable lens options (sold separately)

Optoma EH503 Specifications:

  • Display Technology: Single 0.65” DC3™ DLP® Technology by Texas Instruments™
  • Native Resolution: HD (1920 x 1080)
  • Maximum Resolution: WUXGA (1920 x 1200)
  • Brightness: 5200 lumens
  • Contrast Ratio: 2000:1 (full on/full off)
  • Displayable Colors: 1.07 Billion
  • Lamp Life and Type*: 3500/1500 Hours (STD/bright) 370WP-VIP
    *Lamp-life is dependent onmany factors, including lamp mode, display mode, usage, environmental conditions and more.  Lamp brightness can decrease over time.
  • Projection Method: Front, rear, ceiling mount,table top
  • Keystone Correction: ±15° Vertical
  • Uniformity: 85%
  • Aspect Ratio: 16:9 Native, 4:3 compatible
  • Lens Shift (Telecentric):
    • Horizontal: ±10% offset
    • Vertical: -30~110% offset
  • Projection Lenses (sold separately):
    • BX-DL080 Short throw 0.77:1
    • BX-DL200 Standard throw 1.54–1.93:1
    • BX-DL300 Long throw 1.93–2.89:1
  • Audio: Two 3-Watt speakers
  • Noise Level: 37dB
  • Remote Control: Fully-featured IR remote with the option to hardwire to the projector
  • Operating Temperature: 41–113°F (5–45°C), 85% max humidity, adjustable fan speed for high altitude application
  • Power Supply: AC Input 100–240V, 50–60Hz, auto-switching
  • Power Consumption: 480W max (bright), 330W(STD), <0.5 Watt (standby)
  • Computer Compatibility: WUXGA, UXGA, SXGA+,WXGA, SXGA, XGA, SVGA, VGA resized, VESA, PC and Mac compatible
  • Video Input Compatibility: NTSC, PAL, SECAM,SDTV (480i/576i), EDTV (480p/576p, HDTV (720p, 1080i/p)
  • 3D Compatibility**: Supports all HDMI 1.4a mandatory 3D format,side-by-side format and top and bottom format. 3D glasses are needed andsold separately.
    **3D content can be viewed with either RF or DLP Linkactive shutter glasses when projector is used with a compatible 3Dplayer.  RF 3D glasses require the use of an RF 3D emitter and a projector with a 3D VESA Sync port.
  • Vertical Scan Rate: 24–85kHz, 120Hz, 144Hz
  • Horizontal Scan Rate: 15–91kHz
  • User Controls: Complete on-screen menu adjustments in 26 languages
  • I/O Connectors: Display port, HDMI, DVI-D w/HDCP, two VGA-in, VGA-out, S-video, composite video, component video, five BNC (RGBHV/YPbPr), two stereo mini jack audio-in, two RCA stereo audio-in,audio-out, 3D VESA port, wired remote, USB-A charging port, RS-232C, RJ45, and 12V trigger
  • Monitor Loop Through:
    • Monitor: D-Sub 15 pin VGA output (functional in both normal and standby modes)
    • Audio: VAO audio out, HDMI VAO audio out supported (VAO in normal mode, fixed in Standby)
  • Security: Kensington® lock port, security barand keypad lock
  • Weight without lens: 18.6 lbs (8.4 kg)
  • Dimensions: 16.9" W x 7.1" H x 13.4" D (430 x 181 x 340 mm)
  • Warranty: 3-Year Optoma Express Service, 1-Year on Lamp
  • Optional Accessories: Three optional lenses, wireless dongle, ceiling mount, HDMI cable, Optoma screens, RF 3D glasses, RF 3Demitter, DLP® Link™ 3D glasses
  • Accessory Part Numbers (sold separately):
    • Lamp: BL-FP370A
    • Mount: BM-5001U
    • Remote: BR-3070L
    • Wireless VGA Dongle: BI-EXTBG03
    • RF 3D glasses: BG-ZF2100GLS
    • RF 3D emitter: BG-BC100B
    • DLP® Link™ 3D glasses: BG-ZD301
  • UPC: 796435 41 889 2
