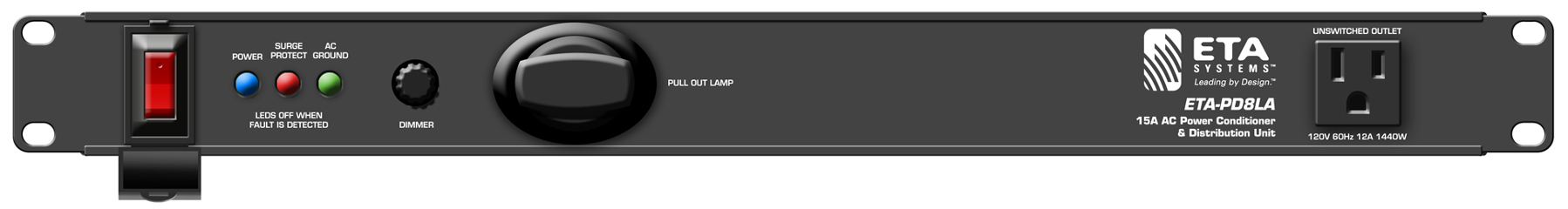

ETA Systems ETA-PD8LA
9 Outlet, 15A Rackmount Power Distribution System with Onboard Light

OUR PART #:  ETAPD8LA

Designed to be flexible, the ETA Systems ETA-PD8LA has features that make it ideal for a variety of applications.
Learn More
Our Price: $139.00
List Price: $175.00
You save 21%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETA Systems ETA-PD8LA
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Designed to be flexible, the ETA Systems ETA-PD8LA has features that make it ideal for a variety of applications. You can use it solely for protecting critical electronic gear against voltage surges or also for AC distribution. The AC power conditioning may eliminate or reduce the inconvenience of fuzzy video or frequent static pop occurrences. The ETA-PD8LA includes noise filtering for unwanted Radio Frequency Interference (RFI), commonly introduced into AC lines by wireless products or nearby radio transmitters, as well as EMI filters for reducing noise from Electromagnetic Interference (EMI) generated by such items as electric motors and switching power supplies.

One of the main reasons for equipment failure can be unstable AC Mains voltage. An immense amount of energy, with voltages reaching 6kV or amperage peaks of 3000A, can be injected into the power system, . These spikes are extremely fast and usually only last for a very short time. Likewise, the ETA-PD8LA's circuitry response is very fast and can rapidly suppress unwanted energy within a nanosecond and sustain this suppression for up to 2 milliseconds.

ETA Systems ETA-PD8LA Includes:

  • ETA-PD8LA Unit
  • Manual
  • IEC Power Cord 14 Gauge 12' (4M)
  • IEC Power Cord Retainer Bracket

ETA Systems ETA-PD8LA Features:

  • Front Pull Out LED Lamp with Dimmer
  • 9 Total Outlets:
    • 8 Rear Panel Outlets: 7 Switched and 1 Always On
    • 1 Front Panel Outlet, Always On
  • Front Panel on/off switch with Conceal Cover
  • Radio Frequency and Electromagnetic Interference Filtering (EMI/RFI)
  • Circuit Breaker Protection @ 15A
  • AC Fault indicator and Ground Status
  • Spike Suppression Up to 6000V
  • Removable 12' IEC Cord with Cord Retainer Bracket

ETA Systems ETA-PD8LA Specifications:

General

  • Load Rating: 15A
  • Safety Listings: ETL (UL 60065 Standard)

Front Panel

  • Outlets: 1 Unswitched
  • Activation Switch: Rocker with Security Cover
  • Indicators: AC Power On, Outlets Active, AC Fault, Ground
  • Lights: 1 Pull Out Lamp with Dimmer

Rear Panel

  • AC Outlets: 8 Outlets Total, 7 Switched & 1 Unswitched
  • AC Mains IEC Power Socket: 15A 1800W
  • Circuit Breaker: 15A Resettable

Technical Data

  • Max AC Mains Current: 15A AC Mains Breaker
  • Operating Voltage: 102VAC - 132VAC
  • Power Consumption: 6 Watts
  • Min. Spike Clamping Voltage: 460 VRMS @ 3,000A
  • Max. Spike Clamping Voltage: 6kV
  • Max. Spike Clamping Resp. Time: 1 nanosecond
  • Spike Clamping Voltage @ 100A: 1250Vp for 20µs
  • Maximum Surge Current: 6,500A
  • Energy Rating @ 2ms: 200 Joules
  • Noise Attenuation RFI:
    • 10dB @ 10kHz
    • 40dB @ 100kHz
    • 100dB @ 10MHz
  • Temperature Range: 5° to 35°C
  • Humidity Range: 5% to 95% Relative Humidity

Physical/Mechanical

  • Chassis Finish: Black
  • Mounting: Rack Mount, 19", 1 RU
  • Dimensions: 1.75" H (1RU) x 19" W x 5" D (44.5 x 482.6 x 127mm)
  • Weight: 5 lbs (2.27kg)
