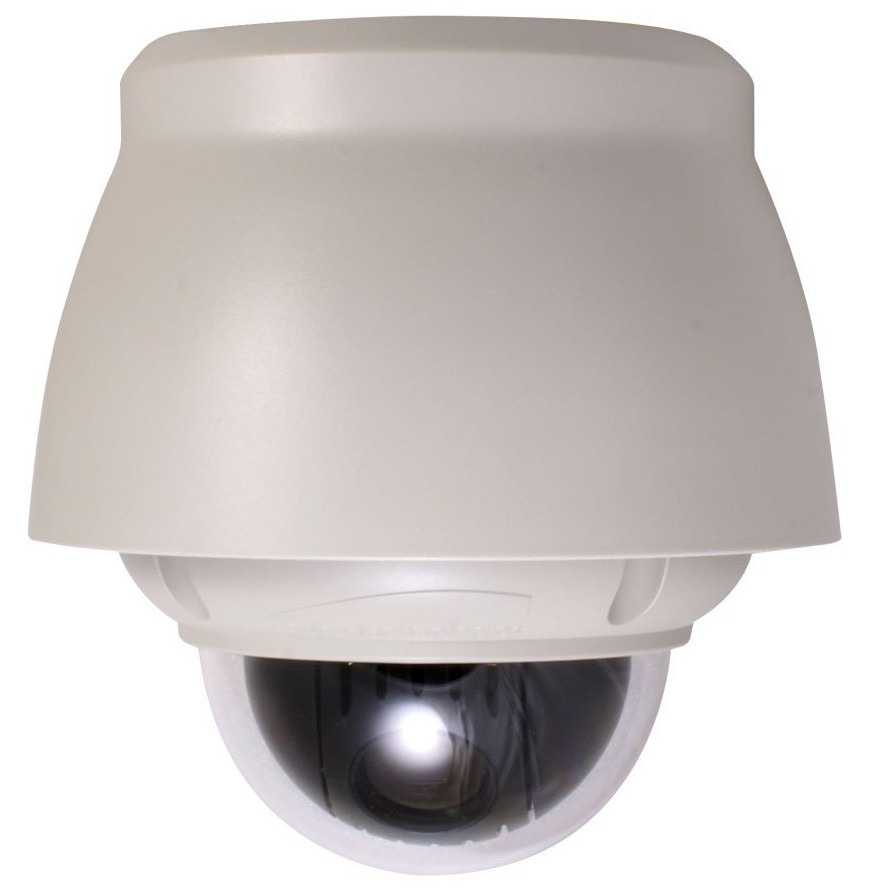

Speco Technologies CPTZ32D5W
22x All-In-One Outdoor PTZ Dome Camera, 3.9-85.8mm in White Housing

OUR PART #  CPTZ32D5W

Our Price: $1,155.92
List Price: $2,266.55
You save 49%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Speco Technologies CPTZ32D5W PTZ Dome Camera has 700 TV lines of resolution with WDR (Wide Dynamic Range) function, is mounted in a sun-shielded housing, and includes a built-in heater and fan.

Speco Technologies CPTZ32D5W PTZ Features:

  • 3.9-85.8mm lens
  • Max. 352x zoom (22x optical / 16x digital)
  • WDR (wide dynamic range) function
  • Day/Night (ICR) function
  • 3DNR (digital noise reduction) function
  • DIS (digital image stabilization) function
  • Built-in RS-485 receiver driver
  • Includes built-in heater and fan
  • 240 preset positions
  • 4 alarm inputs / 1 alarm output (5VTTL)
  • Variable speed from 0.1° /sec. – 380° /sec.
  • 180° digital flip
  • IP66 compliant
  • 1 year warranty

Speco Technologies CPTZ32D5W PTZ Specifications:

Camera Imaging Specifications:

  • Image Sensor:  1/4” Type Sony Super HAD™ CCD II
  • Resolution:  700 TV lines
  • Minimum Illumination:  Color: 0.1 lux, BW & Slow Shutter: 0.00001 lux
  • S/N Ratio:  More than 50dB
  • Video Output:  1.0Vp-p /75 ohms
  • Effective Pixels:  976 (H) x 494 (V)
  • Total Pixels:  1020 (H) x 508 (V)
  • Scanning System:  2:1 interlace
  • Synchronization:  Internal / External
  • Frequency:  15.734kHz (H), 59.94Hz (V)
  • Zoom:  22x (optical)
  • Focal Length:  3.9mm (wide) - 85.8mm (tele)
  • Max. Aperture Ratio:  F1.6 (wide) - F3.7 (tele)
  • Angular Field Of View:  3.9mm - 49.5° (H) / 85.8mm - 2.4° (H)
  • Focus:  Auto / Manual / One Push / Constant Manual

Mechanical Specifications

  • Pan Range:  360° endless
  • Pan Speed:  Preset: 380° /sec., Manual: Max. 380° /sec. (turbo)
  • Tilt Range:  0° – 180° (digital flip)
  • Tilt Speed:  Preset: 380° /sec., Manual: Max. 300° /sec. (turbo)
  • Preset Positions:  240
  • Auto Scan:  16 Auto Scans & 1 Auto Pan
  • Tour:  8
  • Pattern:  8

Operational Specifications:

  • On Screen Display:  English, French, German, Italian, Spanish, Polish, Portuguese
  • Camera Title:  On / Off (6 character)
  • Day/Night:  Auto / Color / BW / Global
  • Motion Detection:  Yes
  • Wide Dynamic Range:  On / Off
  • Backlight Compensation:  BLC / HLC / Off
  • Digital Image Stabilization:  On / Off
  • Privacy Masking:  8
  • Digital Noise Reduction:  3D / 2D
  • Digital Slow Shutter:  On / Off (max. 512x)
  • White Balance:  AWB / WAWB / Indoor / Outdoor / Manual
  • Electronic Shutter Speed:  1/60 sec. – 1/100,000 sec.
  • Digital Zoom:  16x
  • AGC:  Min. / Low / Middle / High
  • Communication:  RS-485
  • Protocol:  Pelco-P, Pelco-D
  • Alarm:  4 Inputs, 1 Output (5VTTL)
  • Operating Temperature/Humidity:  .-22° F – 122° F / 0% – 90% RH (non-condensing)
  • Power Supply:  12VDC / 24VAC for dome, 24VAC for heater and fan (power supply not included)
  • Power Consumption:  12W for dome, 45W for heater and fan
  • Dimensions:  8.07” (H) x 7.33” (Dia.)
  • Weight:  4.85 lbs.

Speco Technologies CPTZ32D5W
22x All-In-One Outdoor PTZ Dome Camera, 3.9-85.8mm in White Housing

OUR PART #  CPTZ32D5W

Product Information:

The Speco Technologies CPTZ32D5W PTZ Dome Camera has 700 TV lines of resolution with WDR (Wide Dynamic Range) function, is mounted in a sun-shielded housing, and includes a built-in heater and fan.

Speco Technologies CPTZ32D5W PTZ Features:

  • 3.9-85.8mm lens
  • Max. 352x zoom (22x optical / 16x digital)
  • WDR (wide dynamic range) function
  • Day/Night (ICR) function
  • 3DNR (digital noise reduction) function
  • DIS (digital image stabilization) function
  • Built-in RS-485 receiver driver
  • Includes built-in heater and fan
  • 240 preset positions
  • 4 alarm inputs / 1 alarm output (5VTTL)
  • Variable speed from 0.1° /sec. – 380° /sec.
  • 180° digital flip
  • IP66 compliant
  • 1 year warranty

Speco Technologies CPTZ32D5W PTZ Specifications:

Camera Imaging Specifications:

  • Image Sensor:  1/4” Type Sony Super HAD™ CCD II
  • Resolution:  700 TV lines
  • Minimum Illumination:  Color: 0.1 lux, BW & Slow Shutter: 0.00001 lux
  • S/N Ratio:  More than 50dB
  • Video Output:  1.0Vp-p /75 ohms
  • Effective Pixels:  976 (H) x 494 (V)
  • Total Pixels:  1020 (H) x 508 (V)
  • Scanning System:  2:1 interlace
  • Synchronization:  Internal / External
  • Frequency:  15.734kHz (H), 59.94Hz (V)
  • Zoom:  22x (optical)
  • Focal Length:  3.9mm (wide) - 85.8mm (tele)
  • Max. Aperture Ratio:  F1.6 (wide) - F3.7 (tele)
  • Angular Field Of View:  3.9mm - 49.5° (H) / 85.8mm - 2.4° (H)
  • Focus:  Auto / Manual / One Push / Constant Manual

Mechanical Specifications

  • Pan Range:  360° endless
  • Pan Speed:  Preset: 380° /sec., Manual: Max. 380° /sec. (turbo)
  • Tilt Range:  0° – 180° (digital flip)
  • Tilt Speed:  Preset: 380° /sec., Manual: Max. 300° /sec. (turbo)
  • Preset Positions:  240
  • Auto Scan:  16 Auto Scans & 1 Auto Pan
  • Tour:  8
  • Pattern:  8

Operational Specifications:

  • On Screen Display:  English, French, German, Italian, Spanish, Polish, Portuguese
  • Camera Title:  On / Off (6 character)
  • Day/Night:  Auto / Color / BW / Global
  • Motion Detection:  Yes
  • Wide Dynamic Range:  On / Off
  • Backlight Compensation:  BLC / HLC / Off
  • Digital Image Stabilization:  On / Off
  • Privacy Masking:  8
  • Digital Noise Reduction:  3D / 2D
  • Digital Slow Shutter:  On / Off (max. 512x)
  • White Balance:  AWB / WAWB / Indoor / Outdoor / Manual
  • Electronic Shutter Speed:  1/60 sec. – 1/100,000 sec.
  • Digital Zoom:  16x
  • AGC:  Min. / Low / Middle / High
  • Communication:  RS-485
  • Protocol:  Pelco-P, Pelco-D
  • Alarm:  4 Inputs, 1 Output (5VTTL)
  • Operating Temperature/Humidity:  .-22° F – 122° F / 0% – 90% RH (non-condensing)
  • Power Supply:  12VDC / 24VAC for dome, 24VAC for heater and fan (power supply not included)
  • Power Consumption:  12W for dome, 45W for heater and fan
  • Dimensions:  8.07” (H) x 7.33” (Dia.)
  • Weight:  4.85 lbs.
