JVC DT-X71FI 7" On-Camera Field Monitor with Waveform, Vectorscope, RGB Histogram

OUR PART #: DTX71FI

Copied to clipboard

The JVC DT-X71FI is a 7" HDSDI/HDMI LCD monitor, with a high resolution 1024 x 600 panel, dual TALLY lights, image rotate and flip. ...Read more

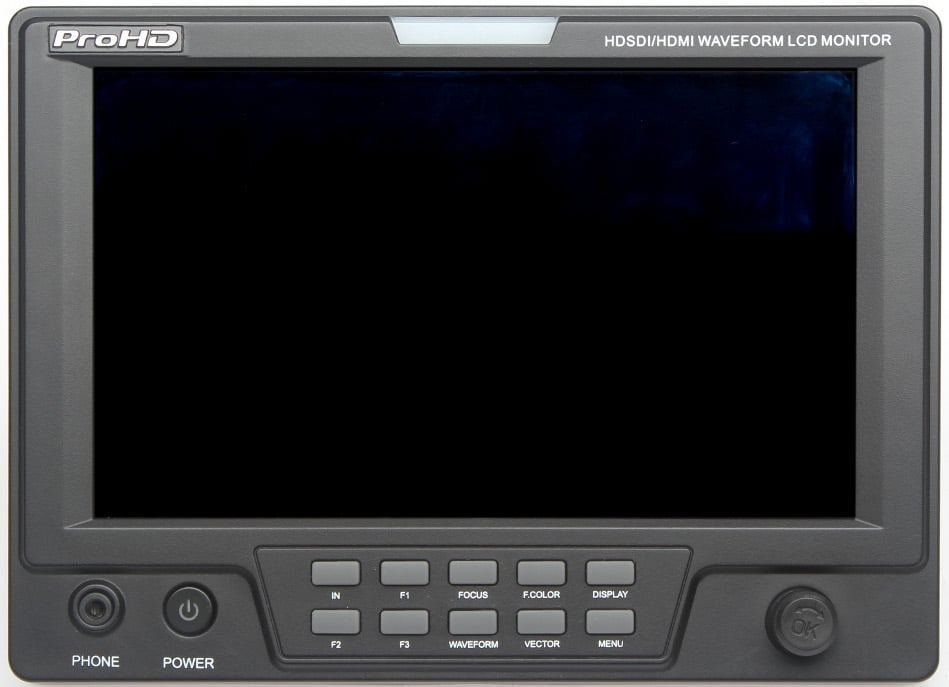

JVC DT-X71FI 7" On-Camera Field Monitor With Waveform, Vectorscope, RGB Histogram Image 1
JVC DT-X71FI 7" On-Camera Field Monitor With Waveform, Vectorscope, RGB Histogram
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The JVC DT-X71FI is a 7" HDSDI/HDMI LCD monitor, with a high resolution 1024 x 600 panel, dual TALLY lights, image rotate and flip. It integrates a wide range of professional functions including waveform, vector scope, RGB histogram, red/blue switchable peaking, focus assist, false color, blue only, zebra, rotate and flip, 16-channel HDSDI audio meter, time code, and internal color bars.

The DT-X71FI accepts 2 HD/SD-SDI, 1 HDMI and 1 Composite video, and has 2 HD/SD-SDI loop through outputs, and 1 HDMI converted to SDI output. It's powered via a 4-pin XLR 12V DC connector or a snap-on 7.4V IDX SSL-JVC50 battery (optional)—the same battery used with the GY-HM600/650 cameras.

JVC DT-X71FI Features:

  • 1024 x RGB x 600
  • 16:9 / 4:3 adjustable
  • HD/SD-SDI, HDMI, Composite video inputs
  • HDMI converted to SDI output by a Build-in Converter
  • Waveform (Y/Cb/Cr/R/G/B), with full scale
  • Vector scope
  • R G B Histogram
  • Peaking focus assist (red/blue switch)
  • False color, Blue only, Zebra
  • Underscan / Overscan switch
  • Canon DLSR scale zoom-in
  • Customer editable video TITLE
  • Audio meter (SDI 16-ch, HDMI 2-ch)
  • Warranty Period: 2 years conditional

JVC DT-X71F Specifications:

  • Screen Size: 7"
  • Viewing Angle: H/V: 160°/160°
  • Resolution: 1024 x RGB x 600
  • Brightness: 400cd/m²
  • Contrast Ratio: 900:1
  • Aspect Ratio: 16:9/4:3
  • Color System: 16.77 million colors
  • Working Voltage: DC 12V/2A or Battery 6.5V- 17V)
  • Rated Power: less than or equal to 15W
  • Dimension: 7.5" x 5.5" x 1.9" (192 x 139 x 47 mm)
  • Net Weight: 1.3 lb (550g)
  • Signal Input/ Output:
    • Input:
      • 2 BNC: 2 HD/SD-SDI in
      • 1 BNC: 1 Composite in
      • 1 HDMI: 1 HDMI in
    • Output:
      • 2 BNC: 2 HD/SD-SDI loop through out
      • 1 BNC: 1 HDMI converted to SDI output
    • Signal Format:
    • HDSDI(1.485Gbps): 1080I50 /60, 720P50 /60, 1080P24 /25/30
    • SDSDI(270Mbps): 576i / 480i
    • HDMI: 480I /P, 576I /P, 1080I50 /60, 720P50 /60, 1080P24, 1080P25/30/50/60
    • Composite: PAL/NTSC/SECAM
